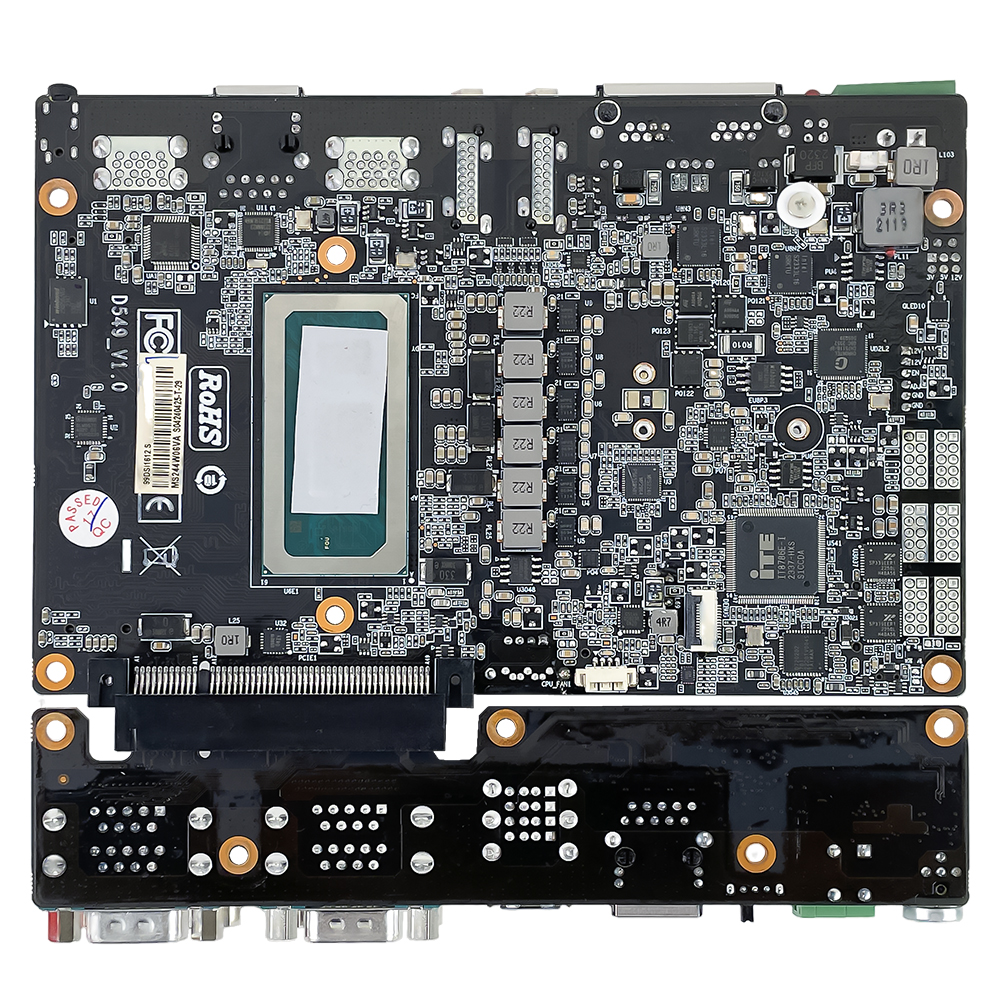

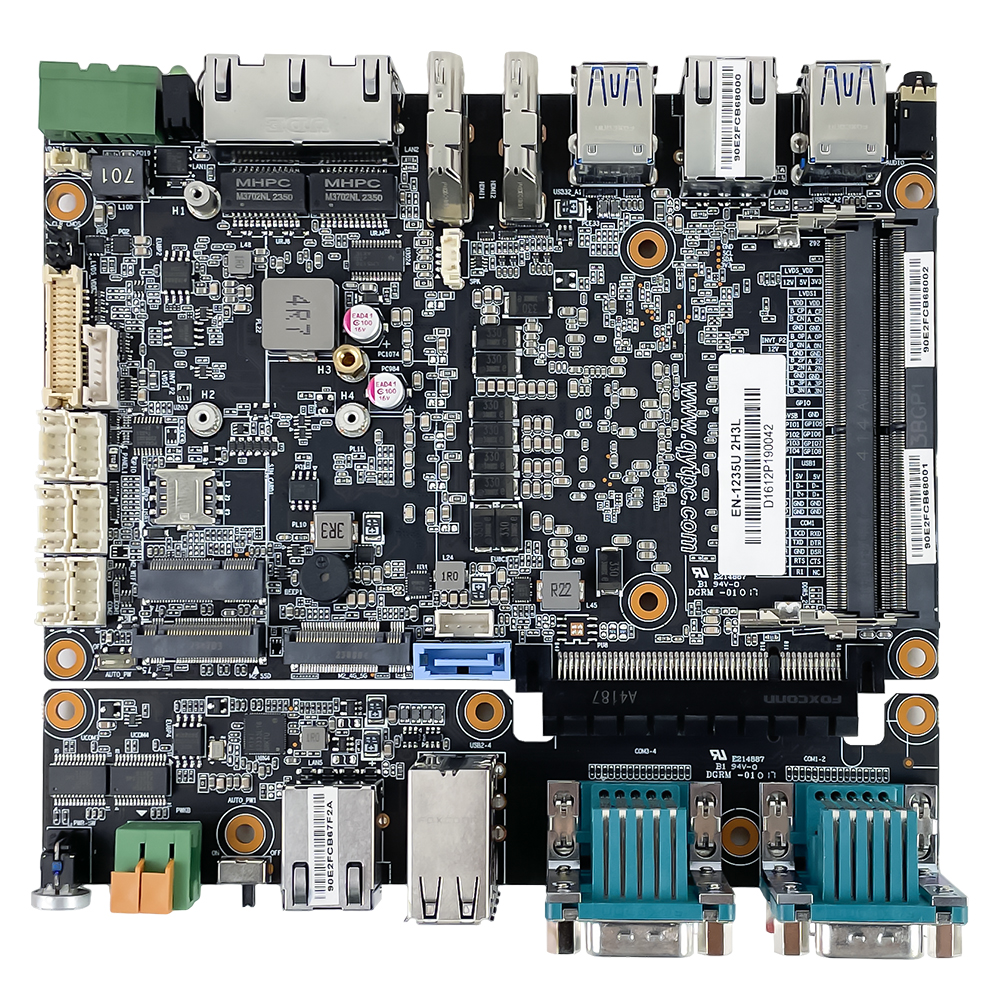

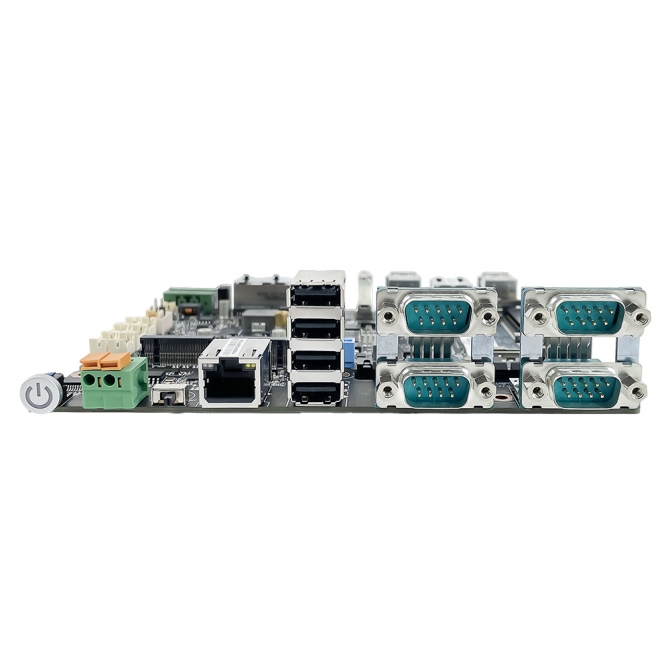

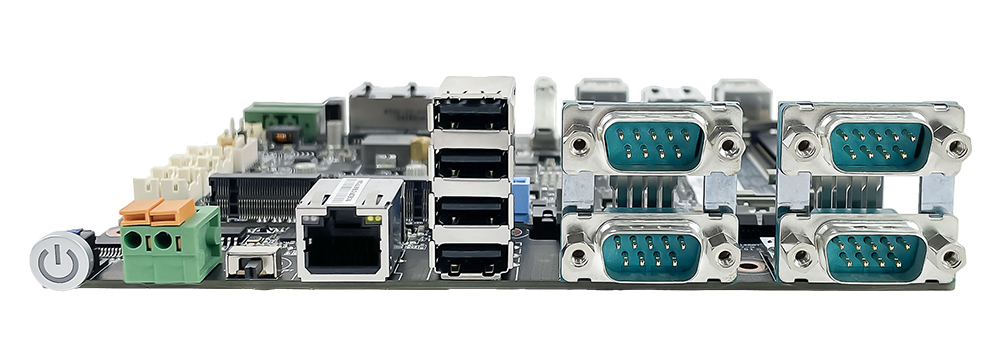

EFIC-12th
产品特征：
- 12th Gen Intel® Whiskey Lake Core™ i3 / i5 / i7，TDP 15W
- 1 x DDR5 4800MHz SODIMM, MAX 64GB
- 1 x 2.5 SATA HDD, 1 x M.2 2280 SATA SSD
- 1 x M2.0 (2230, Wifi+BT)，1 x M2.0 (3042/3052，4G/5G)
- Supports dual independent display:1 x HDMI, 1 x DP
- 4 x Intel® 226-V 2.5GbE Ethernet, support WoL and PXE
- 6 x COM (2x RS232/RS422/RS485),ESD and Surge Protection
- Support TPM2.0 hardware security
- 9V to 36VDC Wide Range Power Input，Supporting OVP / OCP / RPP
|
系统参数 |
|
|
处理器 |
12th Gen Intel® Core™ i3-1215U 1.2GHz / i5-1235U 1.3GHz / i7-1255U 1.7GHz |
|
二级缓存 |
10MB / 12MB / 12MB |
|
TDP |
15W |
|
芯片组 |
Integrated with Intel® SoC |
|
BIOS |
AMI UEFI BIOS |
|
看门狗定时器 |
Software Programmable Supports 1~255 sec. System Reset |
|
TPM |
TPM 2.0 |
|
内存 |
|
|
Technology |
Single Channel (Non-ECC) DDR5L 4800MHz,up to 64GB |
|
插座 |
1 x DDR5 SO-DIMM Slot |
|
硬盘 |
|
|
M.2 |
1 x SATA3.0 Port |
|
2 x M.2-2280 M Key SSD Slot |
|
|
图像 |
|
|
控制器 |
Intel® UHD Graphics / Intel® Iris® Xe Graphics |
|
声音 |
|
|
Codec |
Realtek ACL897 Audio controller |
|

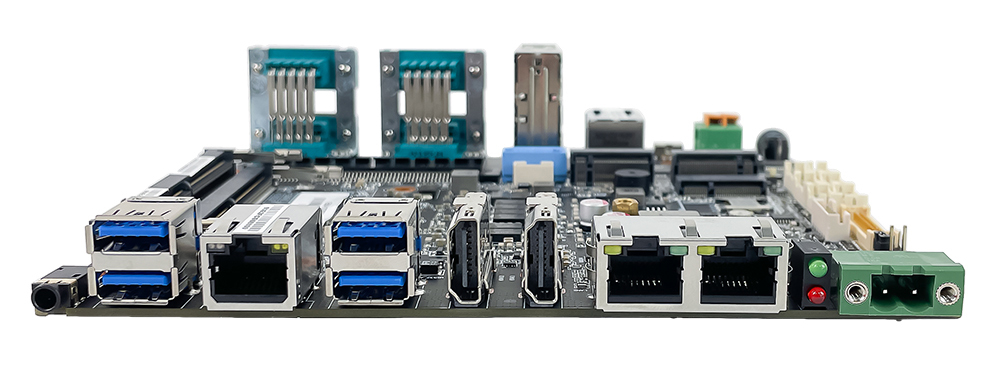

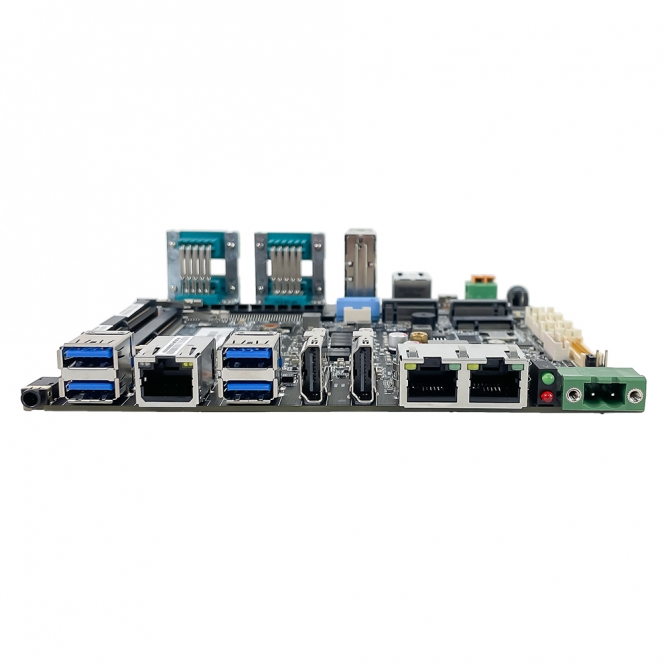

I / O接口 |
|
|
显示接口 |
1x DP1.4,Max Resolution up to 4096x2160@60Hz |
|
2x HDMI,Max Resolution up to 4096x2160@30Hz |
|
|
以太网 |
1x GbE1:Intel I226v 2.5GbE LAN PXE Support |
|
1x GbE2:Intel I226v 2.5GbE LAN PXE Support |
|
|
1x GbE3:Intel I226v 2.5GbE LAN PXE Support |
|
|
1x GbE4:Intel I219 1.0GbE LAN PXE Support |
|
|
USB |
4x USB 2.0 (480Mbps), Type A |
|
4x USB 3.2 Gen2x1 (5Gbps), Type A |
|
|
串口 |
2x COM 1,COM 2 ( RS-232 / 422 / 485, Adjustable through BIOS ) |
|
2x COM 3,COM 4 ( RS-232 ) |
|
|
音频 |
1x Audio_out & Mic_in |
|
Indicators |
1x SATA LED(Red),1x Power LED(Green), |
|
远程电源开关 |
1x Remote SW |
|
电源按钮 |
1x Power Button |
|
内置 I/O |
|
|
M.2 |
1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT ) |
|
1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G ) |
|
|
2*M.2 ( Key-M, 2280, NVMe/ SATA, SSD ) |
|
|
GPIO |
1x 8bit GPlO(2*5pin) |
|
USB |
2xUSB2.0 wafer(2*5pin) |
|
串口 |
2x RS232/485 wafer(2*5pin)(COM3/COM4) |
|
CPU |
1x CPU-FAN (1*4pin) |
|
SPK |
1x SPK 2W8Ω wafer (1*4pin) |
|
PANEL 插座 |
1x Panel Connector (2*5pin) |
|
SIM 插座 |
1x SIM Socket |
|
电源 |
|
|
电源类型 |
Support AT, ATX Mode |
|
电源输入 |
DC IN 9~36V |
|
电源连接器 |
1x 2-pin Phoenix Terminal Block |
|
电源保护 |
OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP（Reverse Polarity Protection） |
|
操作系统 |
|
|
Windows |
Windows10/11 IoT Enterprise |
|
Linux |
Linux |
|
物理特性 |
|
|
产品尺寸 |
160mm x 106mm |
|
净重 |
0.3kg |
|
环境/认证 |
|
|
工作温度 |
-20°c ~70°C, 10 ~90%( non-cpmdemsing ) |
|
存储温度 |
-40°c ~80°C, 10 ~90%( non-cpmdemsing ) |
|
认证 |
CE/FCC Class A |
