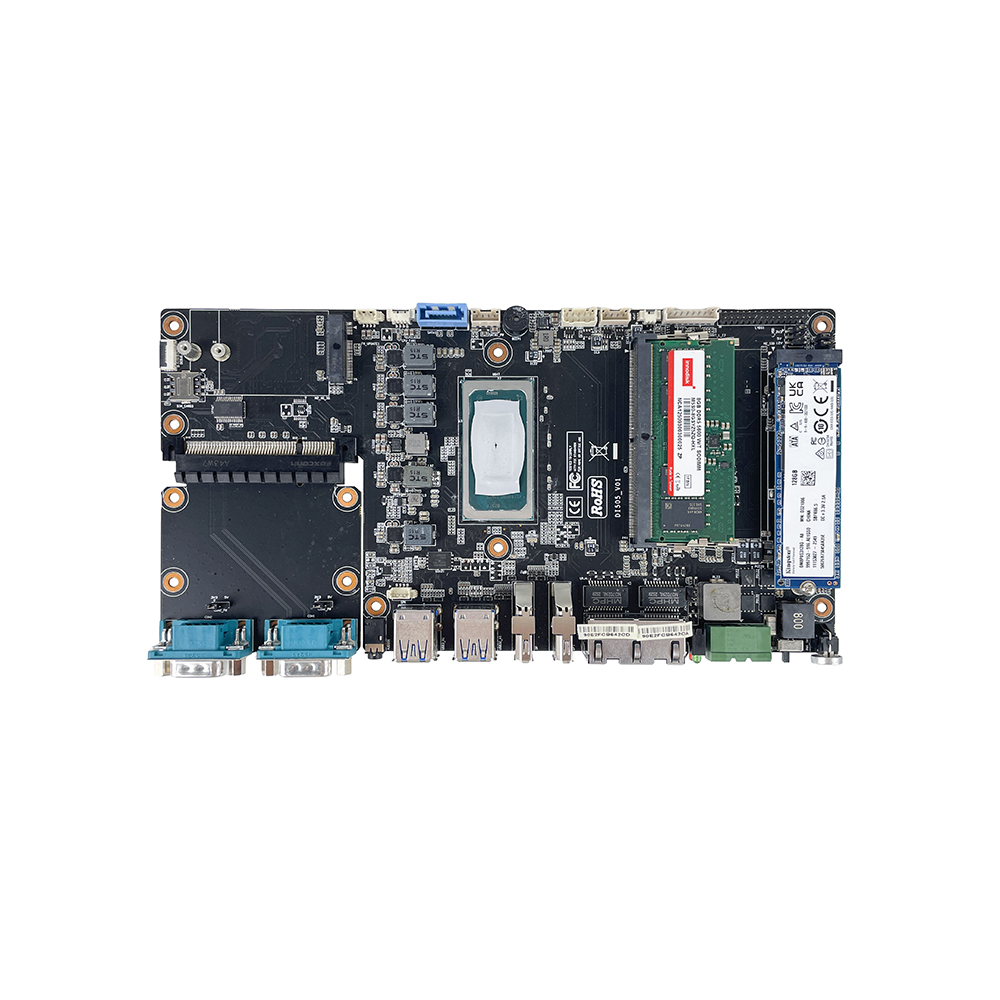

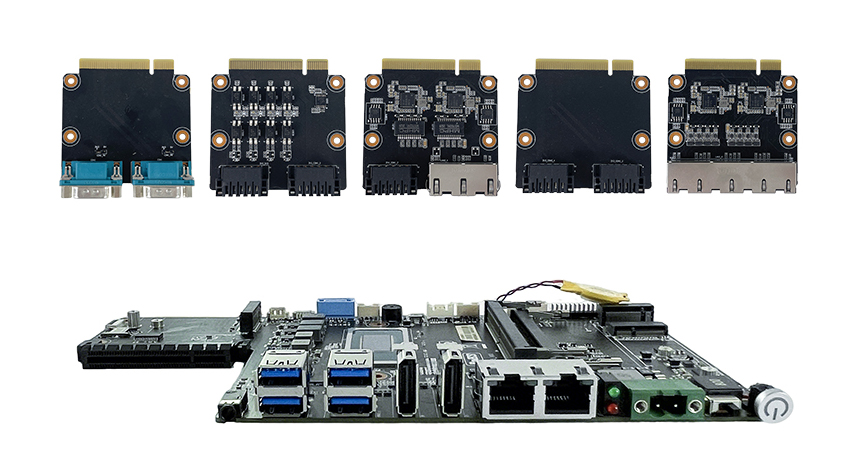

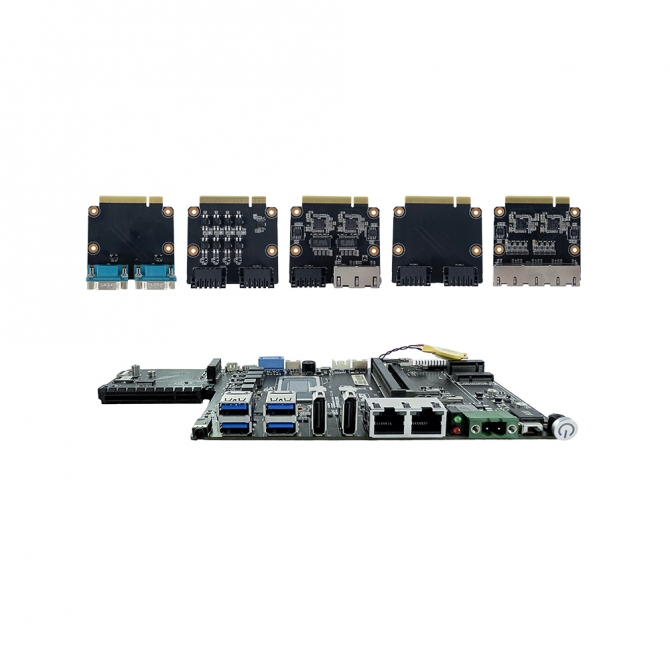

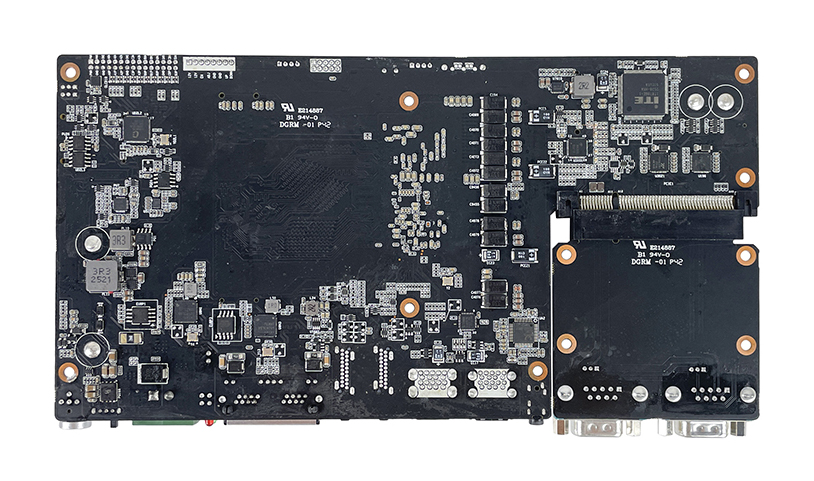

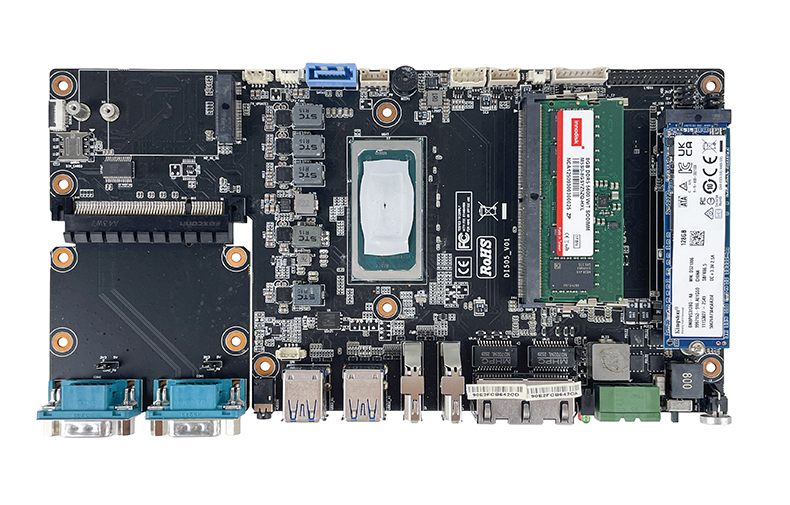

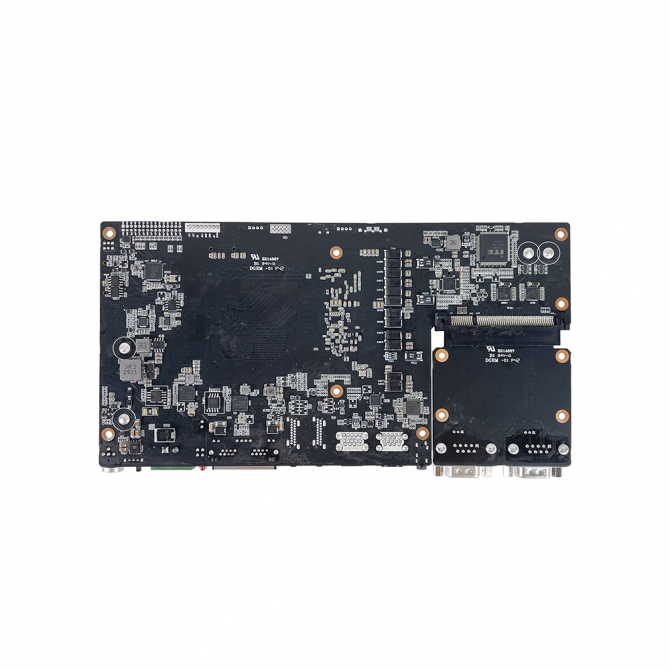

PPC-15th
产品特征：
- Intel® Core™ Ultra5 Processor 225U / 255U，TDP 15W
- 2 x DDR5 6400MHz 16GB, Up to 96GB
- 1 x 2.5 SATA HDD, 1 x M.2 2280 SATA SSD
- 1 x M.2 2280 NVMe SSD，1 x M2.0 (3042/3052，4G/5G)
- Supports dual independent display:2 x DP, 1 x LVDS
- 2 x Intel® 226-V 2.5GbE Ethernet, support WoL and PXE
- 2 x COM (2x RS232/RS422/RS485),ESD and Surge Protection
- Support TPM2.0 hardware security
- 9V to 36VDC Wide Range Power Input，Supporting OVP / OCP / RPP
|
系统参数 |
|
|
处理器 |
Intel® Core™ Ultra5 Processor 225U 1.3GHz / 255U 1.7GHz |
|
二级缓存 |
12MB |
|
TDP |
15W |
|
核心 / 线程 |
12C / 2P+8E |
|
GPU |
Intel® Graphics 2.0 GHz ，8TOPS |
|
NPU |
Intel® AI Boost，12TOPS |
|
芯片组 |
Integrated with Intel® SoC |
|
BIOS |
AMI UEFI |
|
看门狗定时器 |
Software Programmable Supports 1~255 sec. System Reset |
|
TPM |
TPM 2.0 |
|
内存 |
|
|
Technology |
Single Channel (Non-ECC) DDR5L 4800MHz,up to 64GB |
|
插座 |
2 x DDR5 SO-DIMM Slot |
|
硬盘 |
|
|
M.2 |
1 x M.2-2280 M Key SSD Slott |
|
图像 |
|
|
控制器 |
Intel® UHD Graphics / Intel® Iris® Xe Graphics |
|
声音 |
|
|
Codec |
Realtek ACL897 Audio controller |
|
I / O接口 |
|
|
显示接口 |
2x DP,Max Resolution up to 4096x2160@30Hz |
|
1x LVDS: Dual Channel 18/24-bit, up to 1920x1200 |
|
|
以太网 |
1x GbE1:Intel I226V 2.5GbE LAN PXE Support |
|
1x GbE2:Intel I226V 2.5GbE LAN PXE Support |
|
|
USB |
4 x USB 3.2 Gen 2 x 2 |
|
串口 |
2x COM 1,COM 2 ( RS-232 / 422 / 485, Adjustable through BIOS ) |
|
音频 |
1x Audio_out & Mic_in |
|
电源按钮 |
1x Power Button |
|
内置 I/O |
|
|
M.2 |
1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT ) |
|
1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G ) |
|
|
2*M.2 ( Key-M, 2280, NVMe/ SATA, SSD ) |
|
|
USB |
1x T-USB2.0 wafer(1*4pin) |
|
2x USB2.0 wafer(2*5pin) |
|
|
CPU |
1x CPU-FAN (1*4pin) |
|
SPK |
1x SPK 2W8Ω wafer (1*4pin) |
|
Invertor |
1x 12V/5V/3V Selectable |
|
SIM 插座 |
1x SIM Socket |
|
电源 |
|
|
电源类型 |
Support AT, ATX Mode |
|
电源输入 |
DC IN 9~36V |
|
电源连接器 |
1x 2-pin Phoenix Terminal Block |
|
电源保护 |
OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP（Reverse Polarity Protection） |
|
操作系统 |
|
|
Windows |
Windows10/11 IoT Enterprise |
|
Linux |
Linux |
|
物理特性 |
|
|
产品尺寸 |
236mm x 120mm |
|
净重 |
0.7kg |
|
环境/认证 |
|
|
工作温度 |
-20°c ~70°C, 10 ~90%( non-cpmdemsing ) |
|
存储温度 |
-40°c ~80°C, 10 ~90%( non-cpmdemsing ) |
|
认证 |
CE/FCC Class A |
