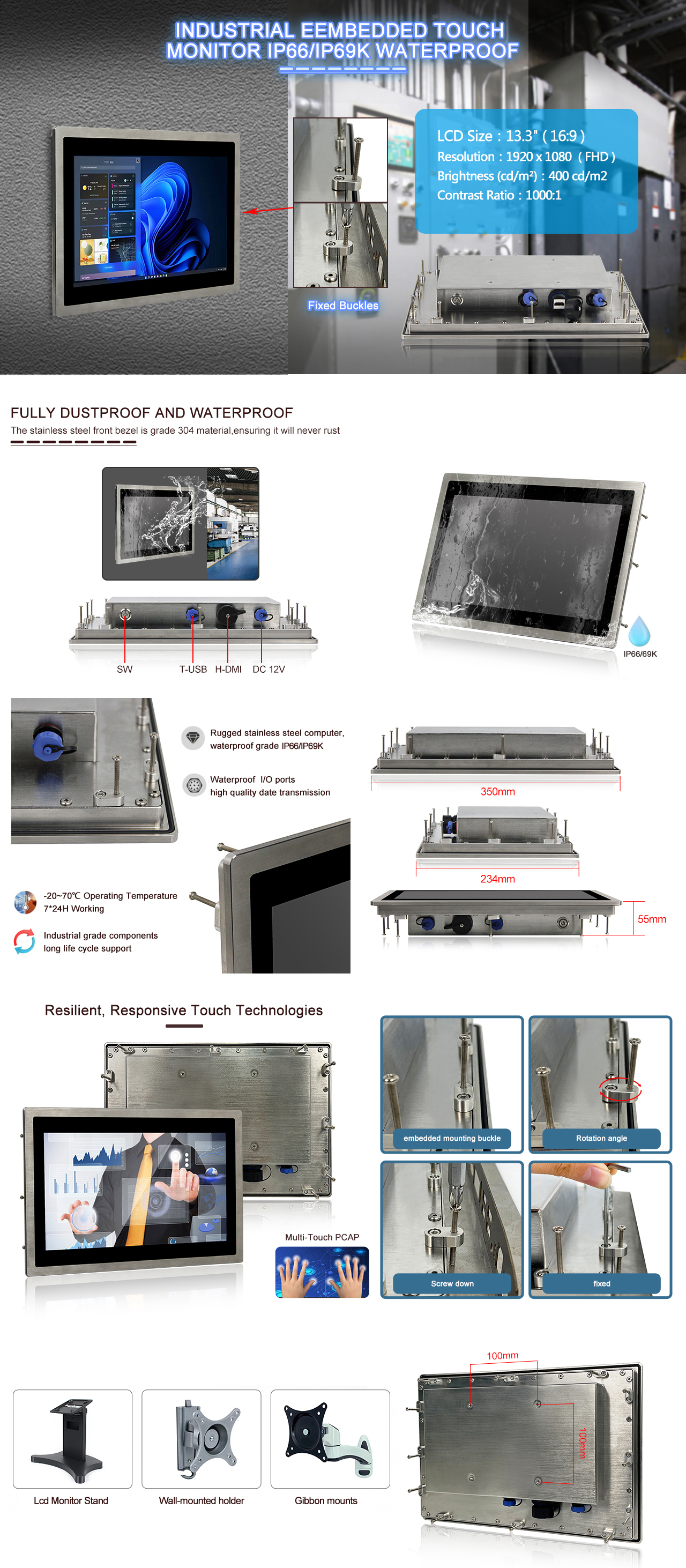

WPM-H133WCC
Product features：
- Industrial-grade 13.3" FHD LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- Full device IP66 / IP69K with Stainless Steel SUS304/316 construction
- Video Input Interfaces:1 x HDMI / 1 x VGA Optional
- Support USB Interfaces for Touch Function
- Supports embedded / VESA 100mm x 100mm mounting holes
- Wide Operating Temperature -20°C to 70°C
- 12V to 24V DC Wide Range Power Input
|
Display |
|
|
Panel Size |
13.3" ( 16:9 ) |
|
Resolution |
1920 x 1080 ( FHD ) |
|
Display Brightness |
400 cd/m2 |
|
Contrast Ratio |
900:1 |
|
Backlight Lifetime |
50000 Hr (min.) |
|
Viewing Angle |
85 / 85 / 85 / 85 ( CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
10 point PCAP |
|
Surface Hardness |
≥7H |
|
I / O |
|
|
Video |
1 x Waterproof Connector For H-DMI / VGA ( Optional ) |
|
USB |
1 x M12 Waterproof Connector For Touch USB2.0 |
|
Other I/O Interface |
1 x Power Switch |
|
Power |
|
|
Power Adapter |
1 x Optional AC/DC 12V/5A , 60W |
|
Power Input |
1 x M12 Waterproof Connector For 12V~24V DC |
|
Power Consumption |
≦30W |
|
Physical |
|
|
Material |
Inox / SUS304 / SUS316 |
|
Mounting |
Stand / Wall / VESA / Yoke |
|
Dimension (W x H x D） |
350 x 234 x 55 mm |
|
Cut-out Size |
336 x 220 |
|
Packing Size |
460 x 180 x 400 mm |
|
Weight (Net) |
7 kg |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
IP66 / IP69K |
|
EMC |
CE, FCC，Class A，ROHS |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
WPM-H133WCC |
13.3”FHD LCD / Resolution 1920x1080 / PCAP Touch / 1 x H-DMI / 1 x T-USB / DC IN 12V~24V |
|
|
|
|
PACKING LIST |
|
|
1 x 13.3”Waterproof Touch Monitor |
|
|
1 x 60W PSU (Power Supply) |
|
|
1 x M12 Waterproof H-DMI Cable 2M |
|
|
1 x M12 Waterproof T-USB Cable 2M |
|
