Project Background:

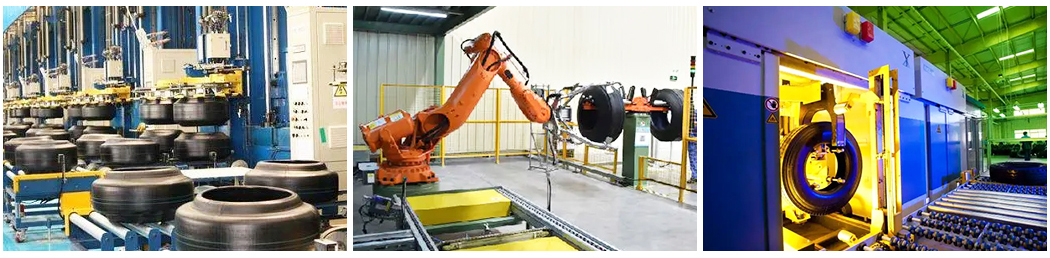

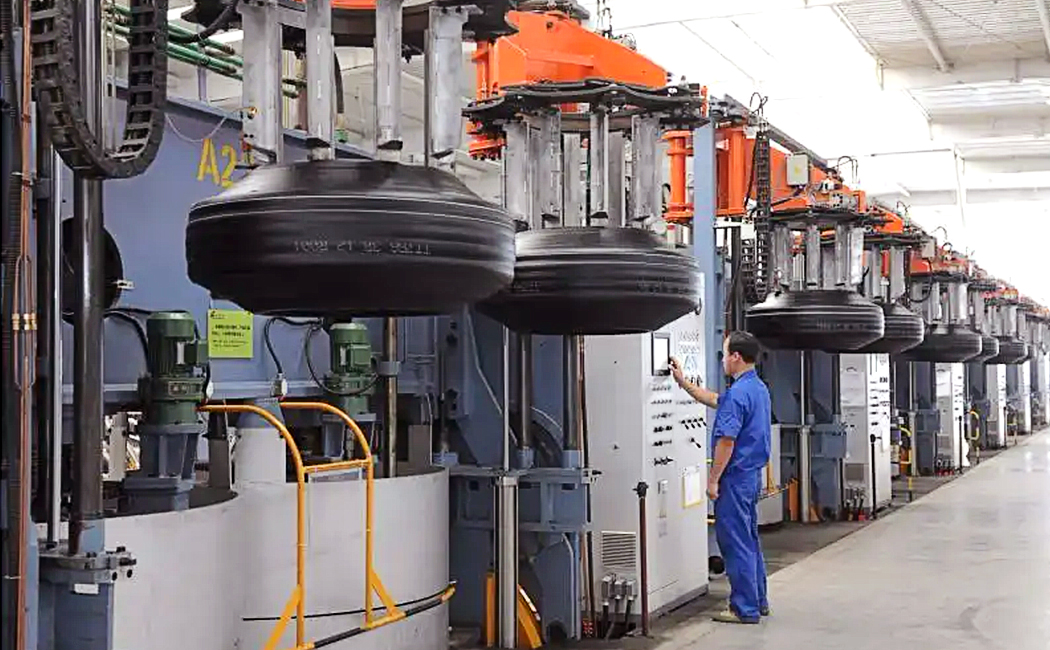

With the vigorous development of the automobile industry, the demand for tires is increasing day by day. The vulcanization process is used to enhance the strength of the tire, and the effective control of the three elements of vulcanization is directly related to the quality of the final product. The traditional control system includes a large number of buttons, switches and signal lights, etc., which requires manual operation. The modern intelligent control system can automatically adjust the process parameters of the vulcanization process to achieve the best vulcanization quality, improve production efficiency, and realize fully automatic management of vulcanization operations.

Application Requirements:

1. The control host needs high performance and can process various data quickly and accurately.

2. The on-site environment is harsh and requires high-level protection functions.

Solution:

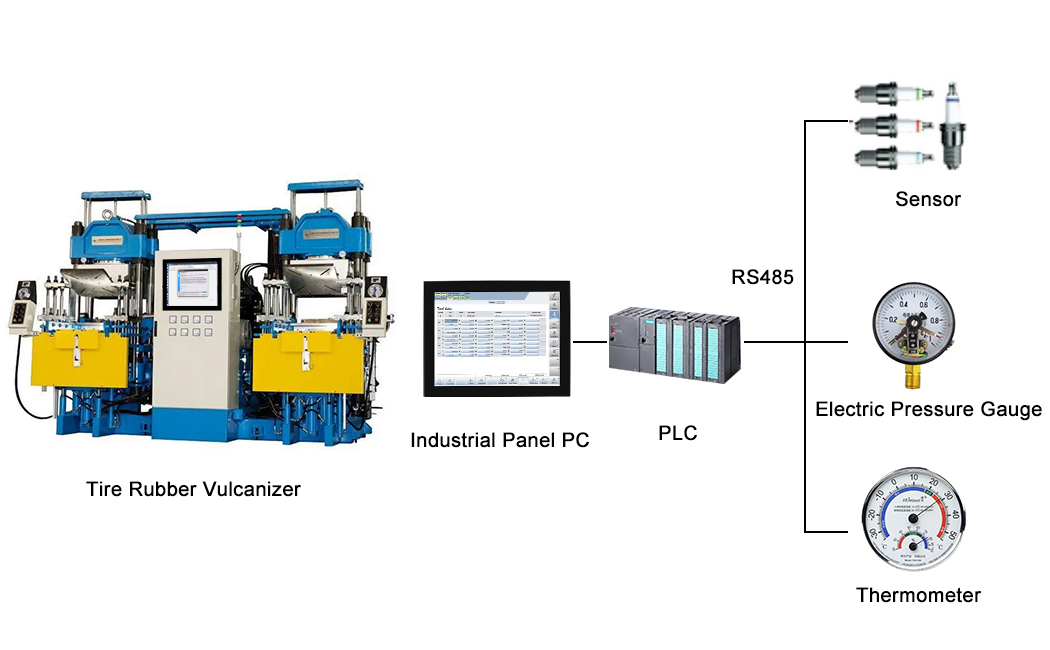

As a host computer, QYT industrial flat panel PPC series can complete all control actions, monitor the vulcanization process and equipment status, and receive data such as temperature and pressure obtained by PLC. Users can adjust formula parameters through configuration software to realize intelligent management of tire curing equipment. It can be controlled to achieve the purpose of automatic production.

Product advantage:

1.  Pure flat capacitive touch screen and IP66 front panel.

2.  17" TFT LED, resolution 1280×1024, 10-point capacitive touch

3.  Fanless recessed design, aluminum alloy front panel and housing ground protection.

4.  Intel 8th GEN Core i3/i5/i7, industrial panel pc.

5.  Onboard TPM2.0 module provides hardware maximum security.

6.  Wide voltage DC 9V~36V, with overcurrent, overvoltage and reverse polarity protection
