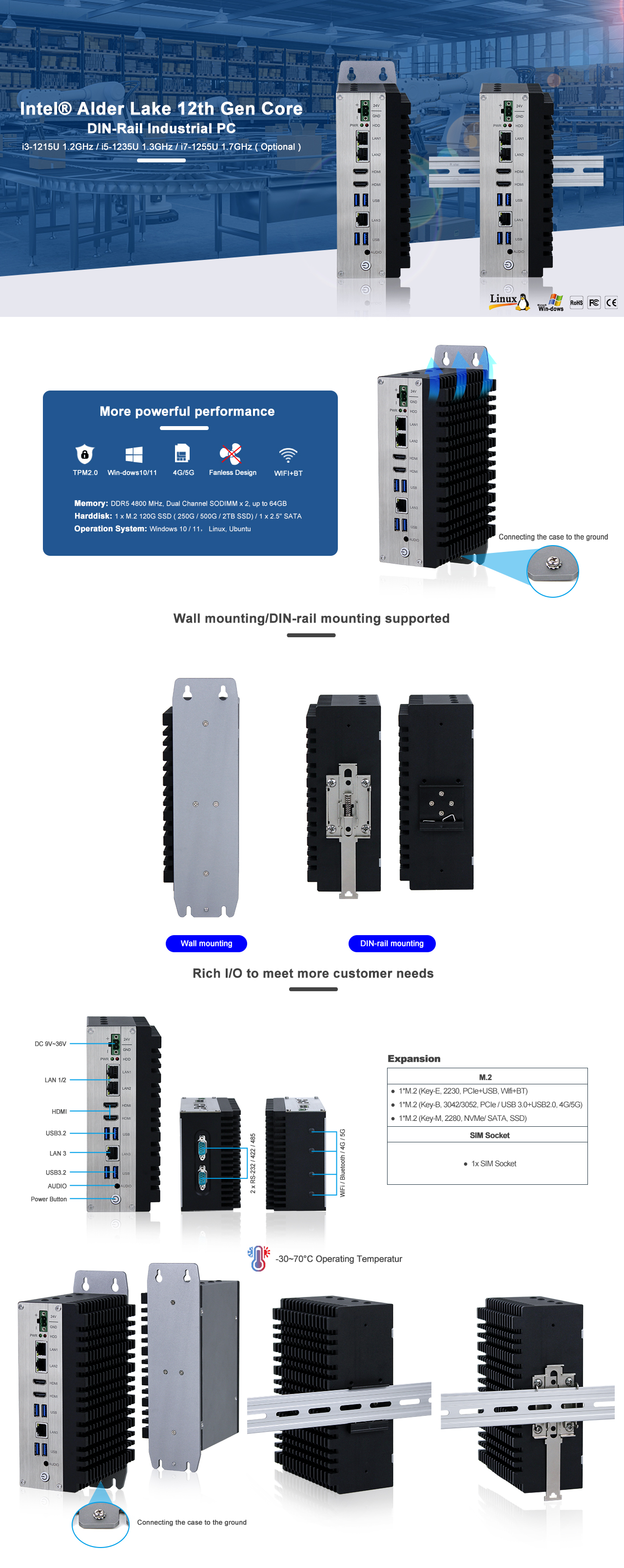

EFIC-2012R
Product features：
- 12th Gen Intel® Alder Lake Core™ i3 / i5 / i7 processor
- 2 x DDR5 4800MHz SODIMM, MAX 64GB
- 1 x 2.5 SATA HDD, 1*M.2 2280, NVMe or SATA SSD
- 1 x M2.0 ( 2230, Wifi+BT )，1 x M2.0 ( 3042/3052，4G/5G )
- Two independent displays：2 x HDMI
- 3 x Intel® GbE ( Support Wake-on-LAN and PXE )
- 2 x RS232/422/485, RS485 support automatic flow control
- Supports TPM2.0 security encryption and vPro technology
- Wide Operating Temperature -30°C to 70°C
- 9V to 36VDC Wide Range Power Input，Supporting OVP / OCP / RPP
|
System |
|||
|
CPU |
12th Gen Intel® Core™ i3-1215U 1.2GHz |
12th Gen Intel® Core™ i5-1235U 1.3GHz |
12th Gen Intel® Core™ i7-1255U 1.7GHz |
|
TDP |
15W |
15W |
15W |
|
L2 Cache |
10MB |
12MB |
12MB |
|
Graphics |
Intel® UHD Graphics |
Intel® Iris® Xe Graphics |
Intel® Iris® Xe Graphics |
|
System Chipset |
Integrated with Intel® SoC |
||
|
Memory |
DDR5 4800 MHz, Dual Channel SODIMM x 2, up to 64GB |
||
|
Harddisk |
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
||
|
Network |
Intel® 226-V / I219-LM GbE LAN |
||
|
Audio |
Realtek ALC897 Audio controller |
||
|
TPM |
TPM 2.0 |
||
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
||
|
Operation System |
Windows 10 / 11， Linux, Ubuntu |
||
|
I/O |
|||
|
VIDEO |
2 x HD-MI |
||
|
Ethernet |
2 x 2.5GbE / 1x 1GbE |
||
|
USB |
4 x USB 3.2 Gen2 |
||
|
COM |
2 x RS-232 / 422 / 485 ( Adjustable through BIOS ) |
||
|
Audio |
1x Audio_out & Mic_in |
||
|
Expansion |
|||
|
M.2 |
1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT ) |
||
|
1*M.2 ( Key-B, 3042/3052, PCIe / USB 3.0+USB2.0, 4G/5G ) |
|||
|
1*M.2 ( Key-M, 2280, NVMe/ SATA, SSD ) |
|||
|
SIM Socket |
1x SIM Socket |
||
|
Power |
|||
|
Power Adapter |
1 x Optional AC/DC 12V/5A , 60W |
||
|
Power Mode |
Support AT, ATX Mode |
||
|
Power Input |
2-pin Terminal Block Connector with Power Input 9~36VDC |
||
|
Power Protection |
OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP（Reverse Polarity Protection） |
||
|
Power Consumption |
≦45W |
||
|
Physical |
|||
|
Material |
Aluminum Alloy Shell |
||
|
Color |
Grey / Silver / Black ( optional ) |
||
|
Mounting |
205 x 35 mm / DIN-Rail |
||
|
Product Dimension |
190 x 126 x 75 mm |
||
|
Packing Size |
360 x 180 x 320 mm |
||
|
Weight (Net) |
1.6 KG |
||
|
Environment |
|||
|
Operating Temperature |
-30~70°C ( -22~158°F ) |
||
|
Storage Temperature |
-40~85°C (-40~185°F) |
||
|
Relative Humidity |
10% to 95% (non-condensing) |
||
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
||
|
EMC |
CE, FCC，Class A，ROHS |
||
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
EFIC-20123R |
12th Gen Intel Core i3-1215U 1.2GHz / 2 x HDMI / 3 x LAN / 4 x USB3.2 / 2 x COM / TPM2.0 / DC 9V~36V ( OVP / OCP / RPP ) |
|
EFIC-20125R |
12th Gen Intel Core i5-1235U 1.3GHz / 2 x HDMI / 3 x LAN / 4 x USB3.2 / 2 x COM / TPM2.0 / DC 9V~36V ( OVP / OCP / RPP ) |
|
EFIC-20127R |
12th Gen Intel Core i7-1255U 1.7GHz / 2 x HDMI / 3 x LAN / 4 x USB3.2 / 2 x COM / TPM2.0 / DC 9V~36V ( OVP / OCP / RPP ) |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR5 4800MHz SO-DIMM x 2.64GB |
|
Harddisk |
M.2 SSD：(120G/250G/500G/2TB)1 x 2.5"SATA |
|
WiFi |
Wi-Fi Bluetooth Combo Module, with antenna |
|
4G/5G |
Full Netcom 4G/5G/LTE module, with antenna |
|
|
|
|
PACKING LIST |
|
|
1 x Standard product |
|
|
1 x 60W PSU (Power Supply) |
|
|
1 x 35mm DIN-Rail buckle |
|
|
1 x Wall mount |
|
|
1 x CD-ROM |
|
