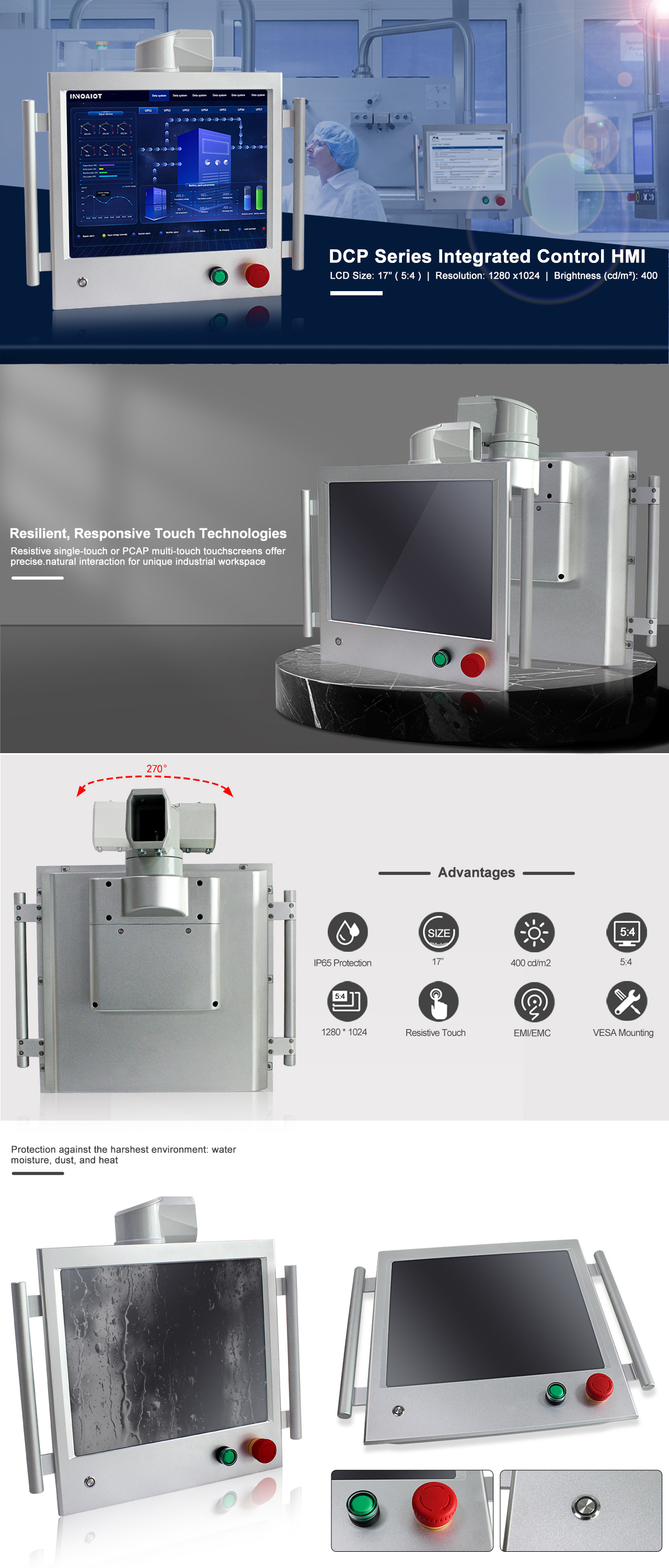

DCP-C017SBR
Product features：
- Industrial-grade 17" SXGA LCD panel with 50k backlight lifetime
- High precision 5-wires resistive touch, EETI controller
- Intel® Celeron® J6412 quad-core 2.0 GHz processor
- 1 x DDR4 SDRAM, max.32GB, 1 x M.2 2280 / 1 x 2.5" SATA SSD
- 3 x Intel® 226-V 2.5GbE Ethernet, support WoL and PXE
- Support IDEC series button expansion and 44-60 Series Cantilever Assembly
- Support TPM2.0 hardware security
- Wide Operating Temperature -20°C to 70°C
- 9V to 36V DC Wide Range Power Input，Supporting OVP / OCP / RPP
|
System |
|
|
CPU |
Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
|
L2 Cache |
1.5MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
1 x DDR4L 3200MHz 4GB, MAX 32GB |
|
Harddisk |
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
|
Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
Network |
Intel® 226-V GbE LAN |
|
Audio |
Realtek ACL897 Audio controller |
|
TPM 2.0 |
TPM 2.0 |
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 10 / 11， Linux, Ubuntu |
|
I / O |
|
|
VIDEO |
1 x DP / 1 x H-DMI |
|
LAN |
2 x LAN ( 10/100/1000/2500 Mbps ) |
|
USB |
4 x USB 3.0 |
|
Button |
IDEC φ22 Select / Green / Red / Stop Button ( optional ) |
|
Bracket kit |
44- 60 Light Cantilever Accessories |
|
Other I/O Interface |
Optional （WiFi / Bluetooth / 4G / ) |
|
Display |
|
|
LCD Size |
17" ( 5:4 ) |
|
Resolution |
1280 x 1024 |
|
Brightness (cd/m²) |
400 |
|
Contrast Ratio |
1000:1 |
|
Backlight MTBF |
50000 hrs |
|
Viewing Angle |
80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
5 Wire Resistive touch |
|
Surface Hardness |
≥3H |
|
Power |
|
|
Power Input |
1 x SP13 Waterproof Connector For 9V~36V DC |
|
Power Mode |
Support AT, ATX Mode |
|
Power Protection |
OVP ( Over Voltage Protection ) | OCP ( Over Current Protection ) | RPP ( Reverse Polarity Protection ) |
|
Power Consumption |
≦30W |
|
Physical |
|
|
Material |
Aluminum Alloy Shell |
|
Mounting |
Stand / Wall / VESA / Panel |
|
Dimension (W x H x D） |
400 x 390 x 155 mm |
|
Packing Size |
500 x 180 x 450 mm |
|
Weight (Net) |
12.0 KG |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
IP65 |
|
EMC |
CE, FCC，KC ，Class A，ROHS ，IEC / EN 62368-1 |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
DCP-C017SBR |
17" SXGA LCD / Resolution: 1280 x 1024 / Intel® Elkhart Lake Celeron J6412 2.0GHz / Resistive touch / 1 x DP / 1 x H-DMI / 2 x LAN / 4 x USB 3.0 / IDEC φ22 Select / Green / Red / Stop Button ( Optional ) / TPM2.0 / DC IN 9V~36V (OVP / OCP / RPP) |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR4L 3200MHz 4GB, MAX 32GB |
|
Harddisk |
M.2 / 2.5" SATA 120G SSD ( 250G / 500G / 2TB SSD) |
|
WiFi |
Wi-Fi Bluetooth Combo Module |
|
4G/5G |
Full Netcom 4G/5G/LTE module |
|
|
|
|
PACKING LIST |
|
|
1 x Standard product |
|
|
1 x 60W PSU (Power Supply) |
|
|
1 x CD-ROM |
|
|
1 x Power cable & plug |
|
