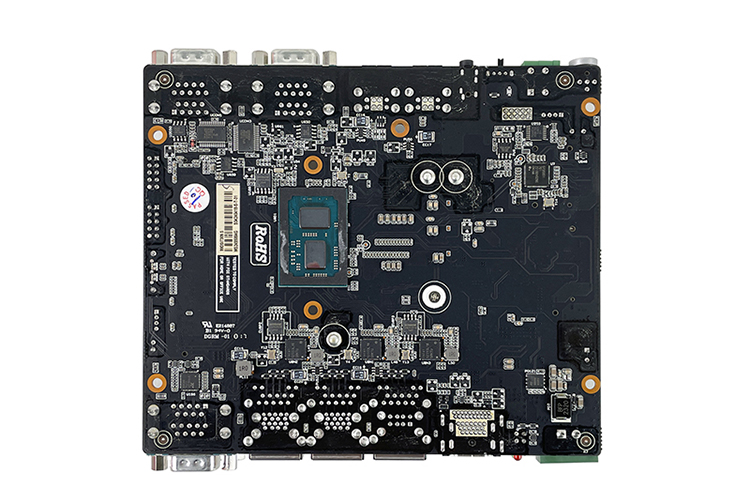

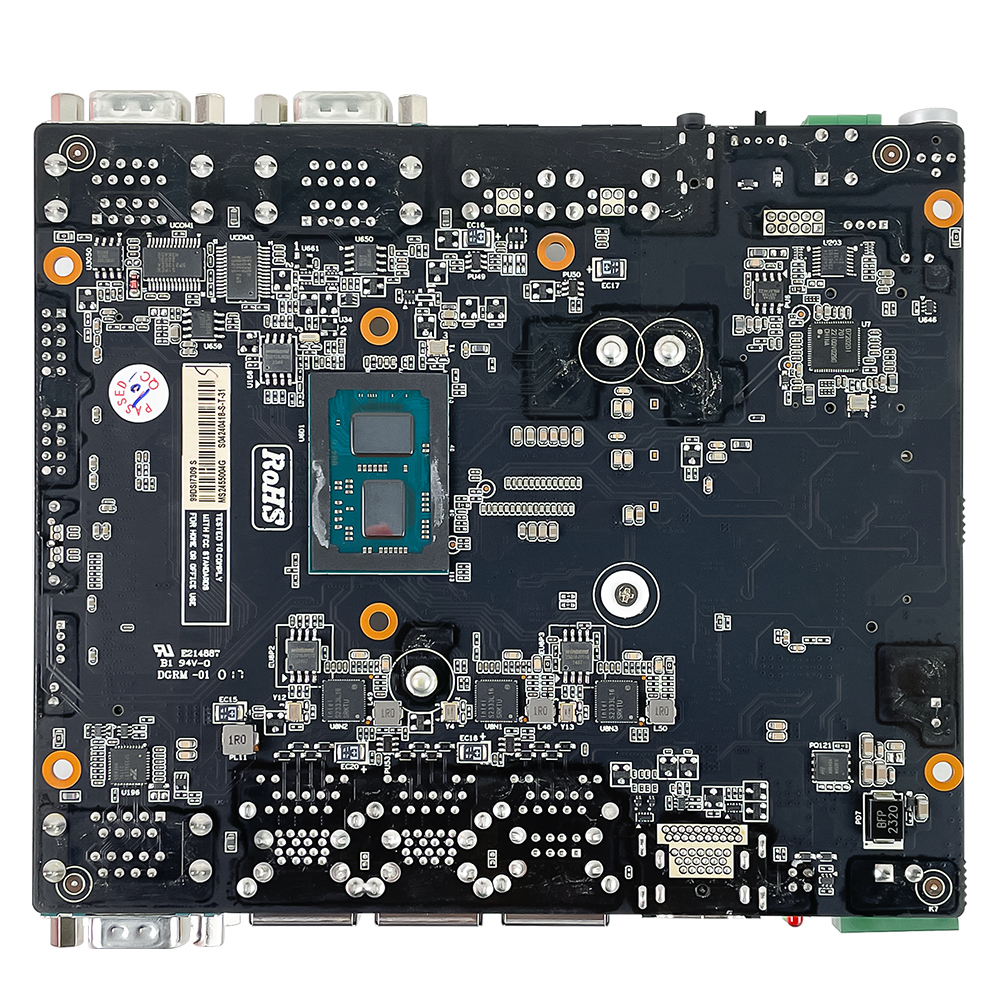

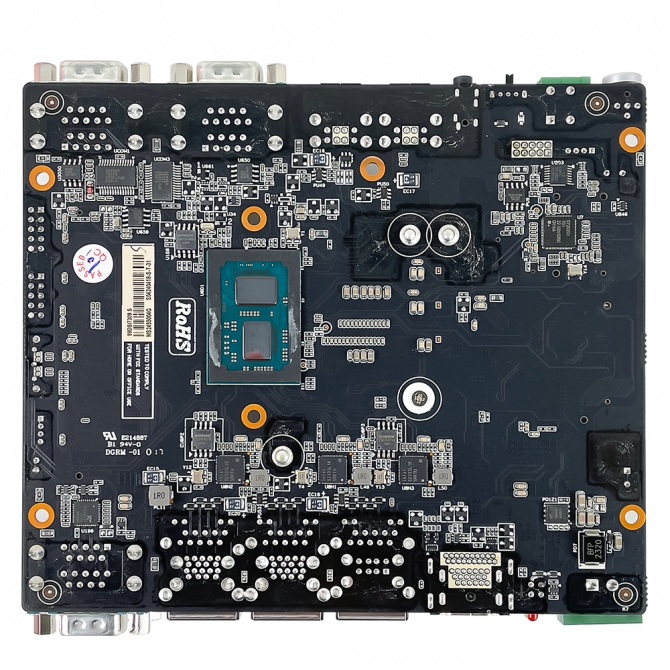

EFIC-2000
Product features：
- Intel® Celeron® J6412 Quad-core 2.0 GHz，TDP 10W
- 1 x DDR4 3200MHz SODIMM, MAX 32GB
- 1 x 2.5 SATA HDD, 1 x M.2 2280 SATA SSD
- 1 x M2.0 (2230, Wifi+BT)，1 x M2.0 (3042/3052，4G/5G)
- Supports dual independent display:1 x HDMI, 1 x DP
- 3 x Intel® 226-V 2.5GbE Ethernet, support WoL and PXE
- 6 x COM (2x RS232/RS422/RS485),ESD and Surge Protection
- Support TPM2.0 hardware security
- 9V to 36VDC Wide Range Power Input，Supporting OVP / OCP / RPP
|
System |
||
|
CPU |
Intel® Elkhart Lake Celeron J6412 2.0GHz |
Intel® Elkhart Lake Atom X6425E 2.0GHz |
|
L2 Cache |
1.5MB |
1.5MB |
|
TDP |
10W |
10W |
|
Chipset |
Integrated with Intel® SoC |
|
|
BIOS |
AMI UEFI BIOS |
|
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
|
TPM |
TPM 2.0 |
|
|
Memory |
||
|
Technology |
Single Channel (Non-ECC) DDR4L 3200MHz,up to 32GB |
|
|
Slot |
1 x DDR4 SO-DIMM Slot |
|
|
Storage |
||
|
SATA |
1 x SATA3.0 Port |
|
|
M.2 |
1 x M.2-2280 M Key SSD Slot (SATA3.0 Signal) |
|
|
Graphic |
||
|
Controller |
Intel HD Graphics Integrated |
|
|
Audio |
||
|
Codec |
Realtek ACL897 Audio controller |
|
|
I / O |
||
|
Display |
1x DP1.4,Max Resolution up to 4096x2160@60Hz |
|
|
1x HDMI,Max Resolution up to 4096x2160@30Hz |
||
|
Ethernet |
1x GbE1:Intel I226v 2.5GbE LAN PXE Support |
|
|
1x GbE2:Intel I226v 2.5GbE LAN PXE Support |
||
|
1x GbE3:Intel I226v 2.5GbE LAN PXE Support |
||
|
USB |
6x USB 2.0 (480Mbps), Type A |
|
|
4x USB 3.2 Gen1x1 (5Gbps), Type A |
||
|
COM |
2x COM 1,COM 2 ( RS-232 / 422 / 485, Adjustable through BIOS ) |
|
|
2x COM 3,COM 4 ( RS-232 / 485 ) |
||
|
2x COM 5,COM 6 ( RS-232 ) |
||
|
Remote Power On/Off |
1x Remote SW |
|
|
Power Button |
1x Power Button |
|
|
Audio |
1x Audio_out & Mic_in |
|
|
Indicators |
1x SATA LED(Red),1x Power LED(Green), |
|
|
Internal I/O |
||
|
M.2 |
1x M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT) |
|
|
1x M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G ) |
||
|
1x M.2 ( Key-M, 2280 SATA, SSD ) |
||
|
GPIO |
1x 8bit GPlO(2*5pin) |
|
|
USB |
1xUSB2.0 wafer(1*4pin) |
|
|
COM |
2x RS232/485 wafer(2*5pin)(COM3/COM4) |
|
|
SIM Slot |
1x SIM Socket |
|
|
Mini-PCle slot |
1x Mini-PCle slot with Nano-SlM socket (Pcle/USB2.0) |
|
|
Power |
||
|
Power Mode |
Support AT, ATX Mode |
|
|
Power Supply Voltage |
DC IN 9~36V |
|
|
Power Connector |
1x 2-pin Phoenix Terminal Block |
|
|
Power Protection |
OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP（Reverse Polarity Protection） |
|
|
Operating System |
||
|
Windows |
Windows10/11 IoT Enterprise |
|
|
Linux |
Linux |
|
|
Physical |
||
|
Dimensions |
160mm x 138mm |
|
|
Weights |
0.3kg |
|
|
Environment |
||
|
Operating Temperature |
-20°c ~70°C, 10 ~90%( non-cpmdemsing ) |
|
|
Storage Temperature |
-40°c ~80°C, 10 ~90%( non-cpmdemsing ) |
|
|
Certification |
CE/FCC Class A |
|
