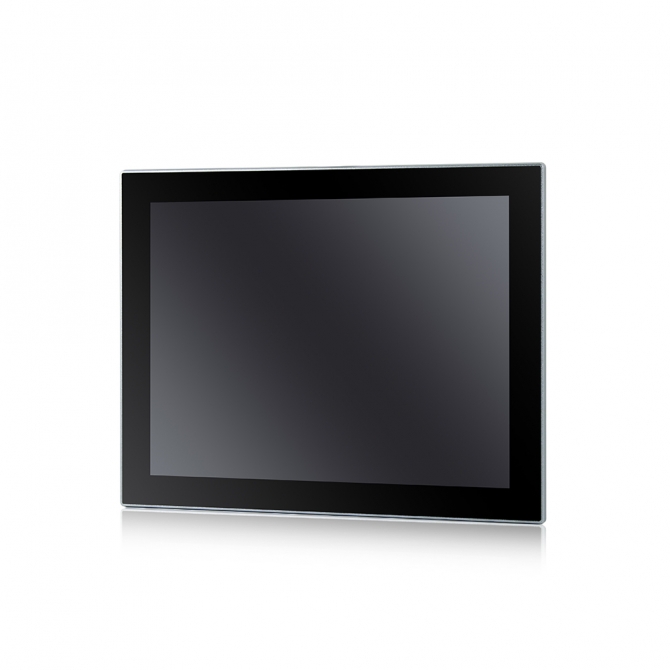

PPC-15SAC-15th

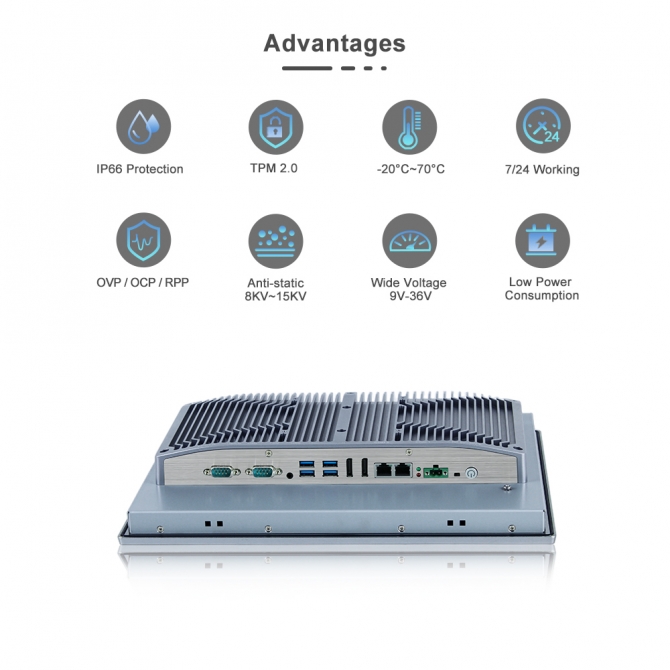

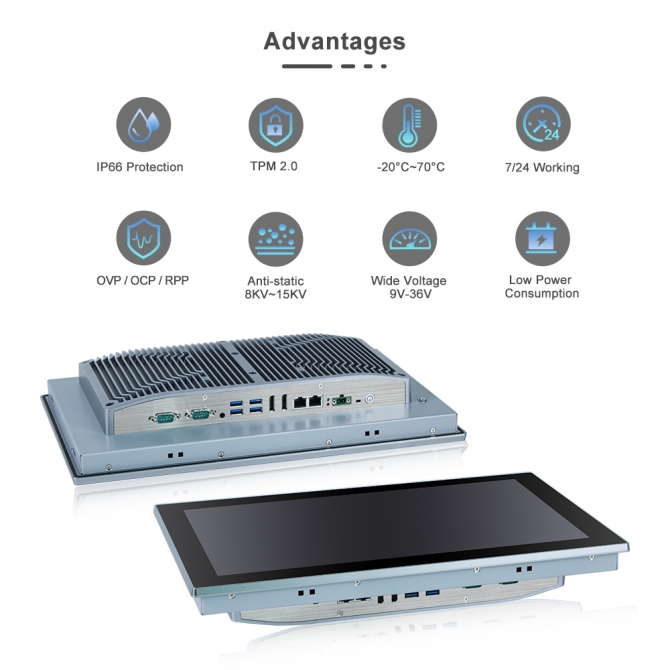

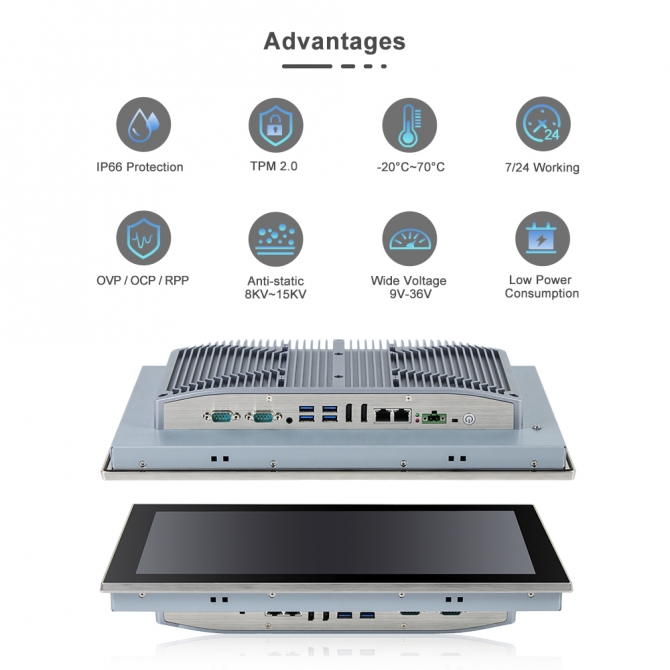

Product features：
- Industrial-grade 15" XGA LCD panel with 50k backlight lifetime
- Optical bonding PCAP multipoint touch screen

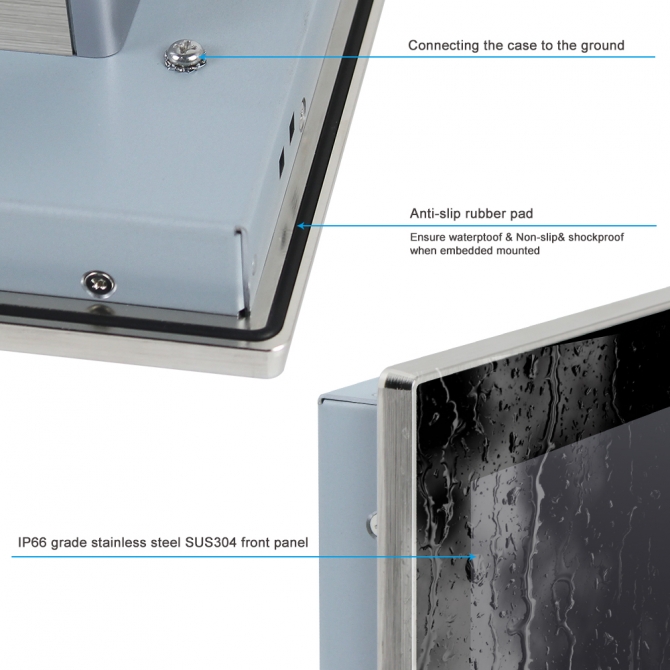

- IP66 grade aluminum alloy front panel
- Intel® Core™ Ultra5 225U 1.3 / 255U 1.7 GHz processor
- 2 x DDR5 SDRAM, max.96GB, 1 x M.2 2280 NVMe SSD
- 2 x Intel® 226-V 2.5GbE Ethernet, support WoL and PXE
- 2 x RS232/422/485, RS485 support automatic flow control
- Support TPM2.0 hardware security
- Supports embedded / VESA 100mm x 100mm mounting holes
- 9V to 36V DC Wide Range Power Input，Supporting OVP / OCP / RPP
|
System |
||
|
CPU |
Intel® Core™ Ultra5 225U 1.3GHz |
Intel® Core™ Ultra5 255U 1.7GHz |
|
TDP |
15W |
|
|
Core / Tread |
12C / 2P+8E |
|
|
L3 Cache |
12MB |
|
|
GPU |
Intel® Graphics 2.0 GHz ，8TOPS |
|
|
NPU |
Intel® AI Boost，12TOPS |
|
|
Chipset |
Integrated With Intel® SoC |
|
|
BIOS |
AMI UEFI |
|
|
Memory |
2 x DDR5 6400MHz 16GB, Up to 96GB，Non-ECC |
|
|
Harddisk |
1 x M.2 256G SSD ( 500G / 1TB SSD ) |
|
|
Audio |
Realtek ALC897 Audio controller |
|
|
TPM |
TPM 2.0 |
|
|
Watchdog Timer |
255 Timer Levels, Set up by Software |
|
|
Operation System |
Windows 10 / 11， Linux, Ubuntu |
|
|

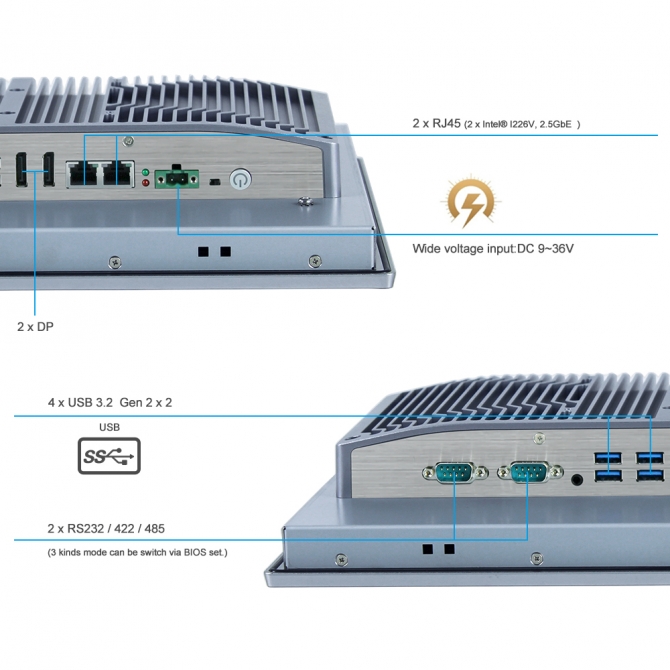

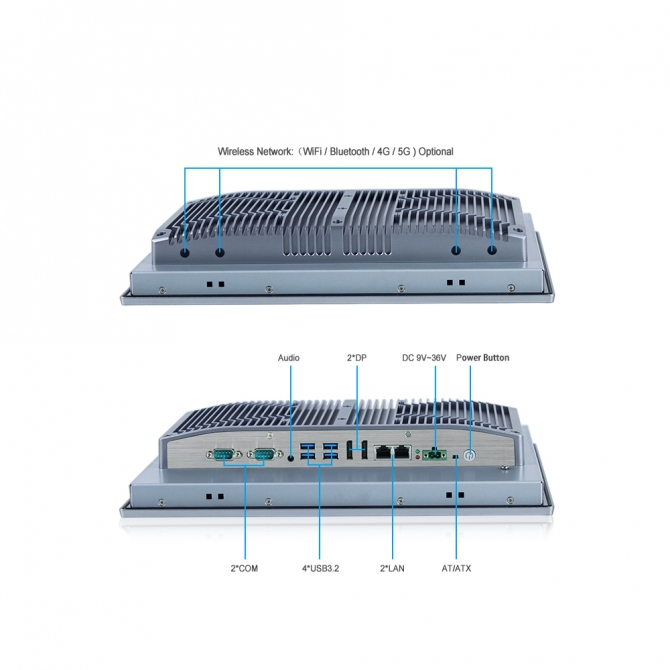

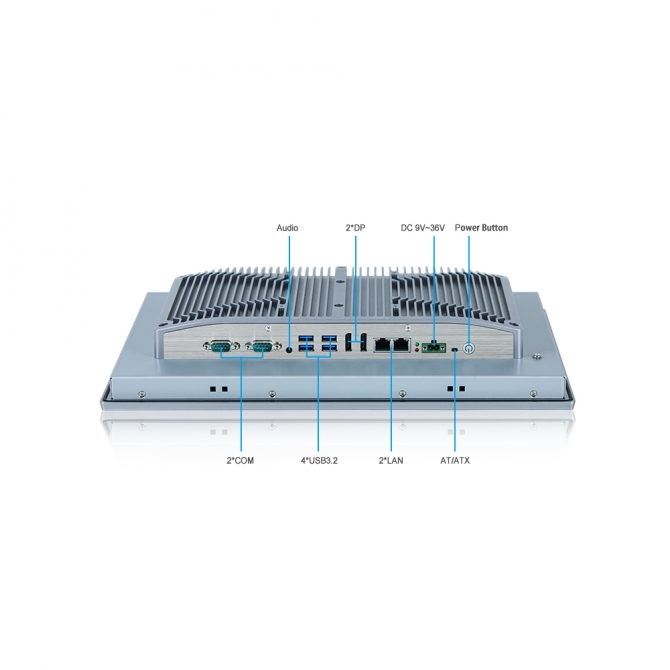

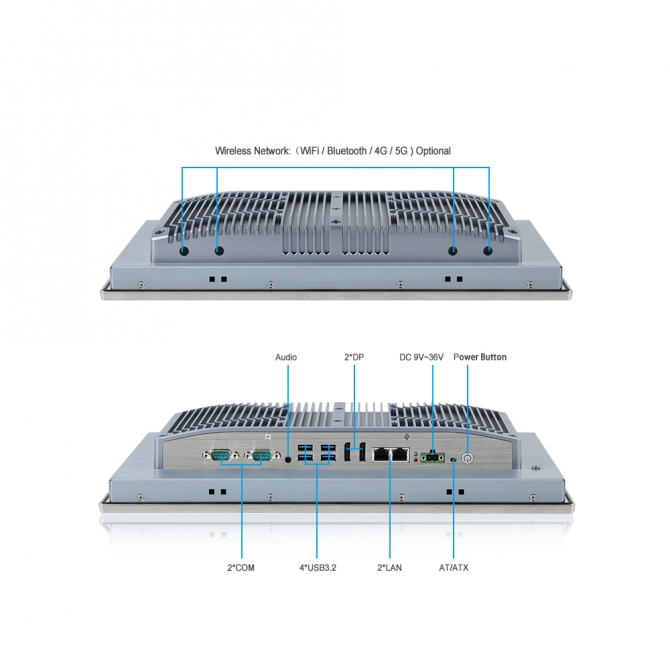

I/O |
||
|
VIDEO |

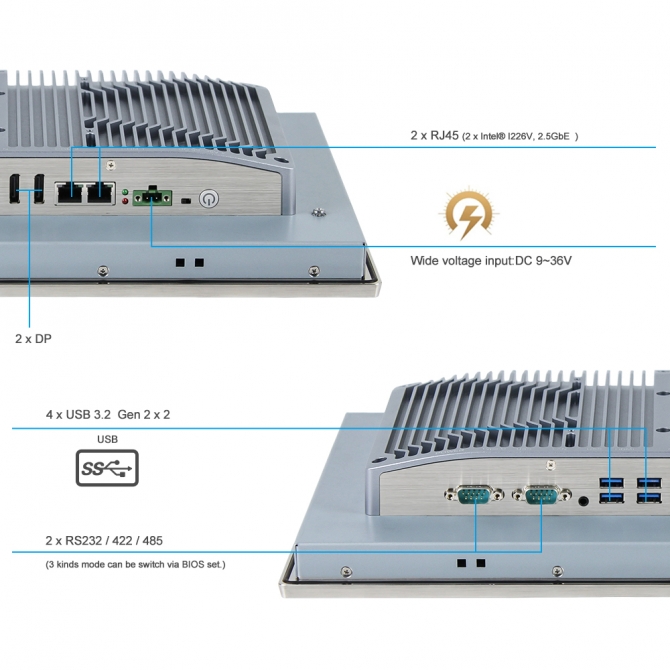

2 x DP |
|
|
LAN |
2 x Intel® I226V, 2.5GbE |
|
|
USB |
4 x USB 3.2 Gen 2 x 2 |
|
|
COM |
2 x RS-232 / 422 / 485 ( Adjustable through BIOS ) |
|
|
Audio |
1x Audio_out & Mic_in |
|
|
Wireless Network |
Optional（WiFi / Bluetooth / 4G / 5G ) |
|
|

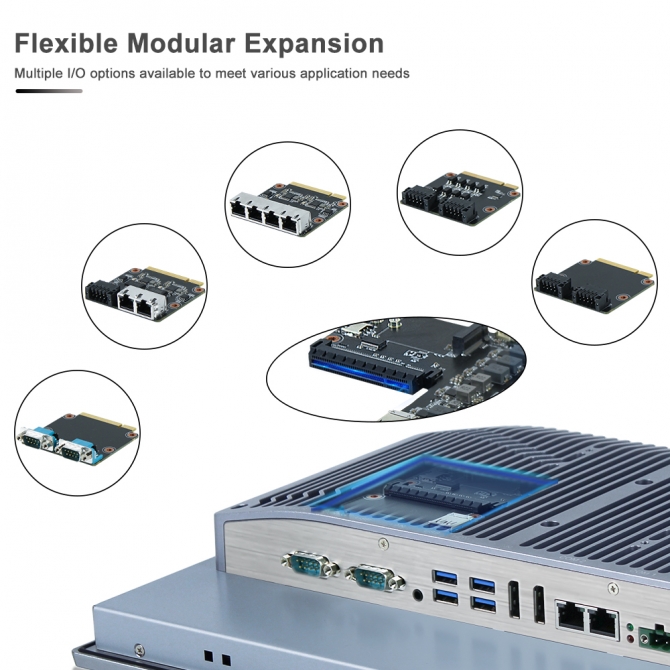

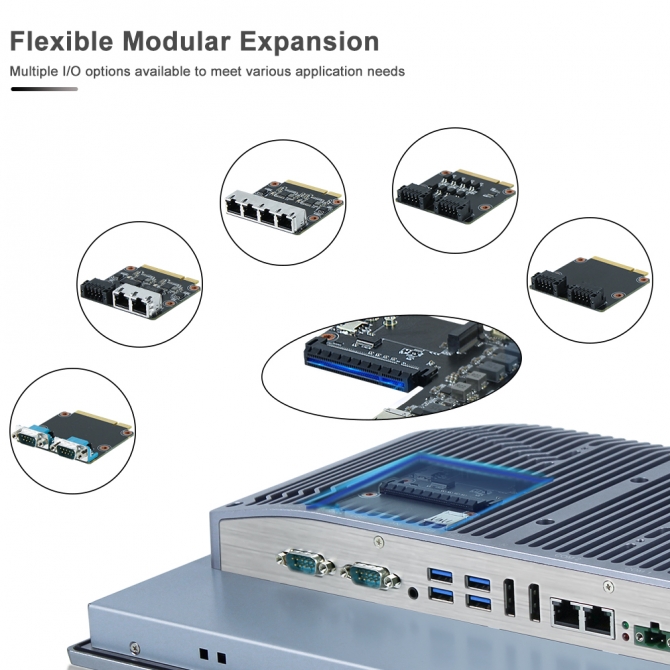

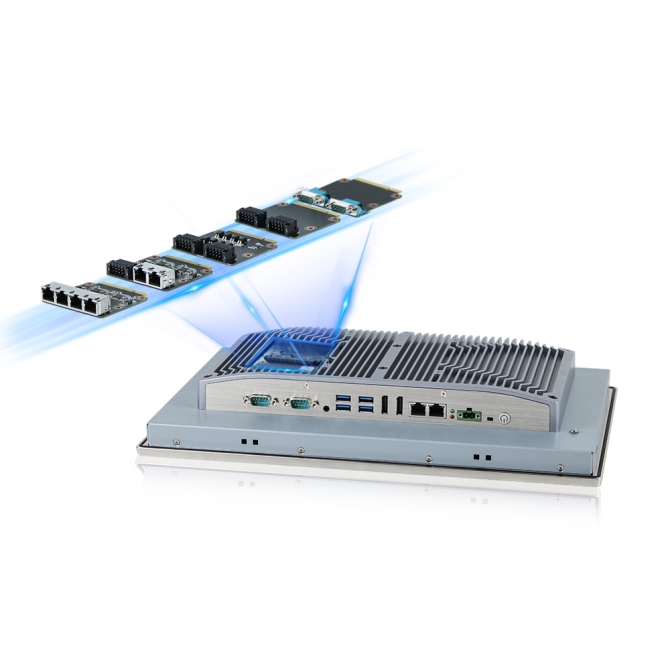

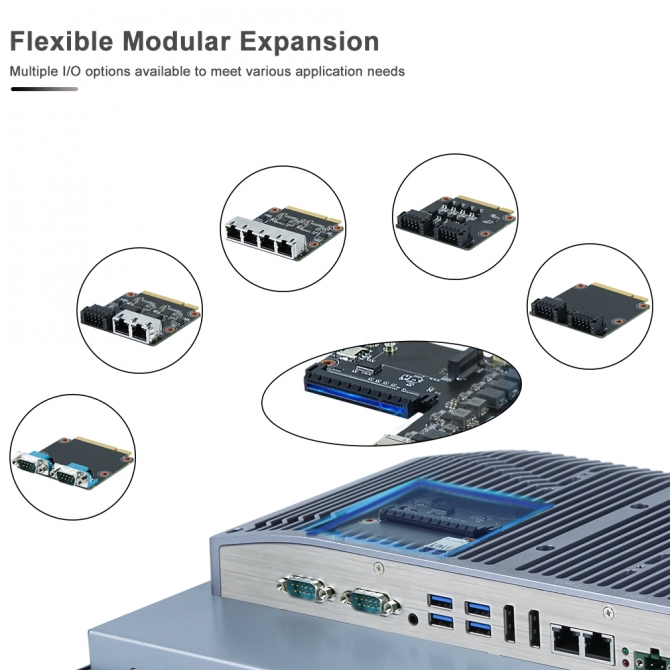

Expansion |
||
|
M.2 |
1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT ) |
|
|
1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G ) |
||
|
1*M.2 ( Key-M, 2280, NVMe/ SATA, SSD ) |
||
|
SIM Socket |
1x SIM Socket |
|
|

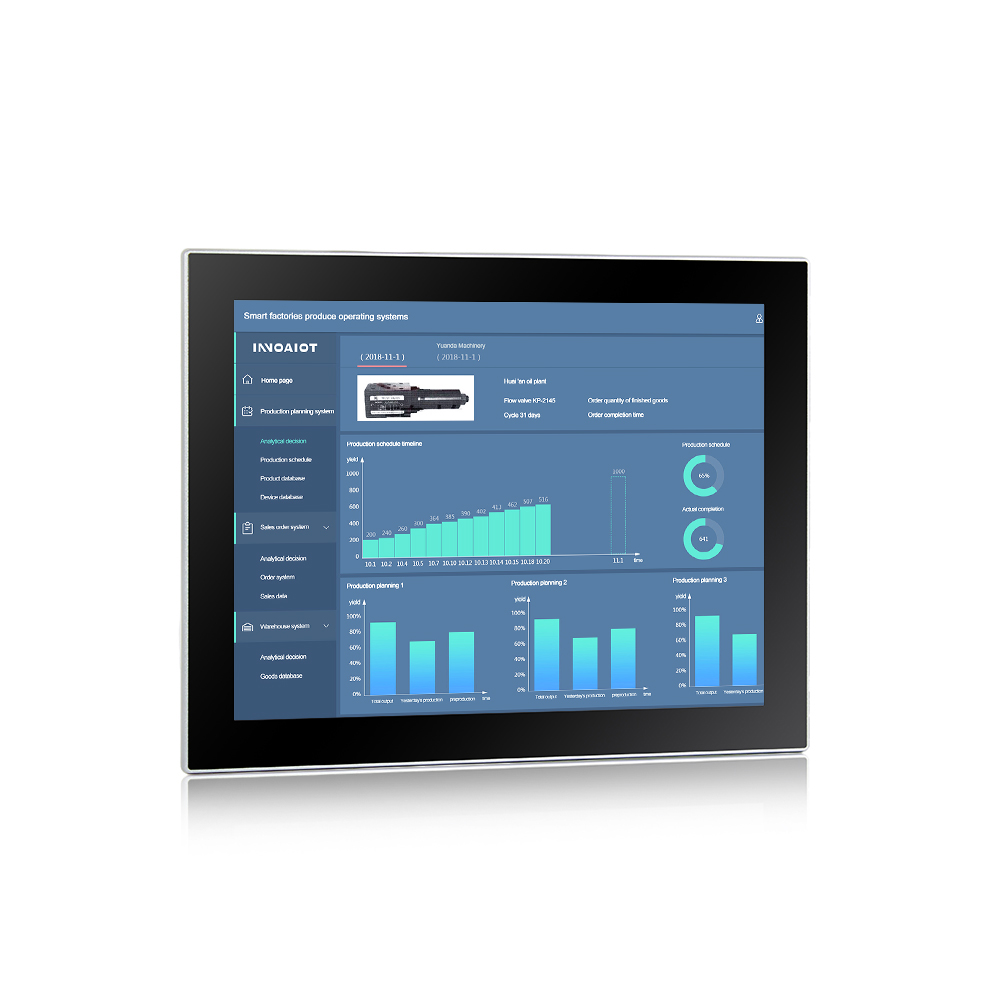

Display |
||
|
LCD Size |
15" ( 4:3 ) |
|
|
Resolution |
1024 x 768 |
|
|
Brightness (cd/m²) |
350 cd/m2 |
|
|
Contrast Ratio |
1000:1 |
|
|
Backlight MTBF |
50000 Hr (min.) |
|
|
Viewing Angle |
89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
|
|
Touch screen |
||
|
Touch Type |

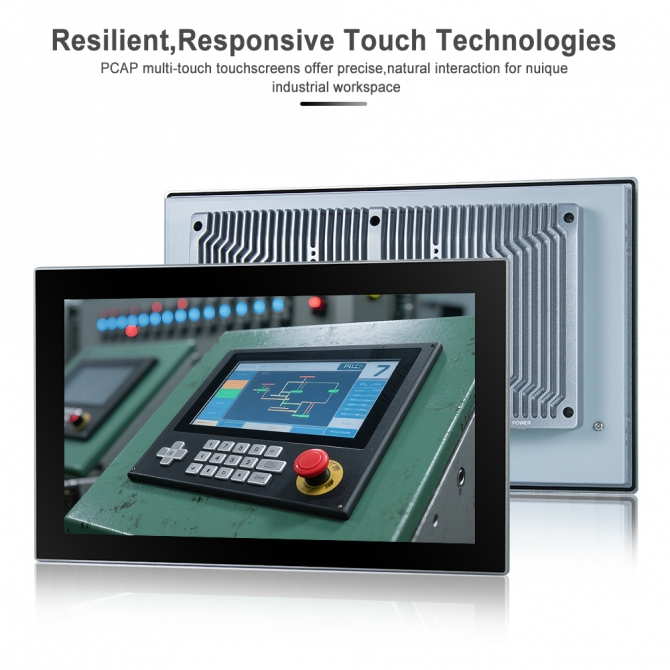

Optical bonding PCAP Touch |
|
|
Surface Hardness |
≥7H |
|
|
Power |
||
|
Power Adapter |
1 x Optional AC/DC 12V/5A ，60W |
|
|
Power Mode |
Support AT, ATX Mode |
|
|
Power Input |
9~36VDC，2-Pin Terminal Block Connector with Power Input |
|
|
Power Protection |
OVP (Over Voltage Protection) | OCP (Over Current Protection) | RPP（Reverse Polarity Protection） |
|
|
Power Consumption |
≦45W |
|
|
Physical |
||
|

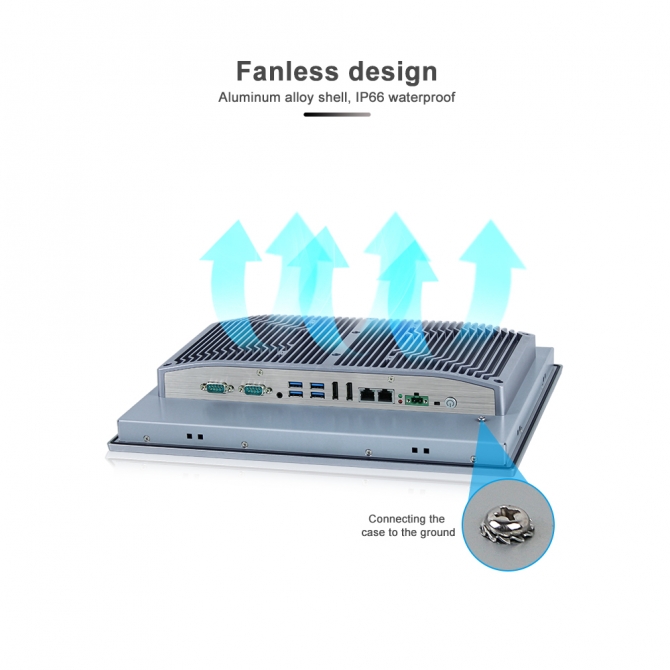

Material |
Aluminum alloy panel, anodized treatment |
|
|

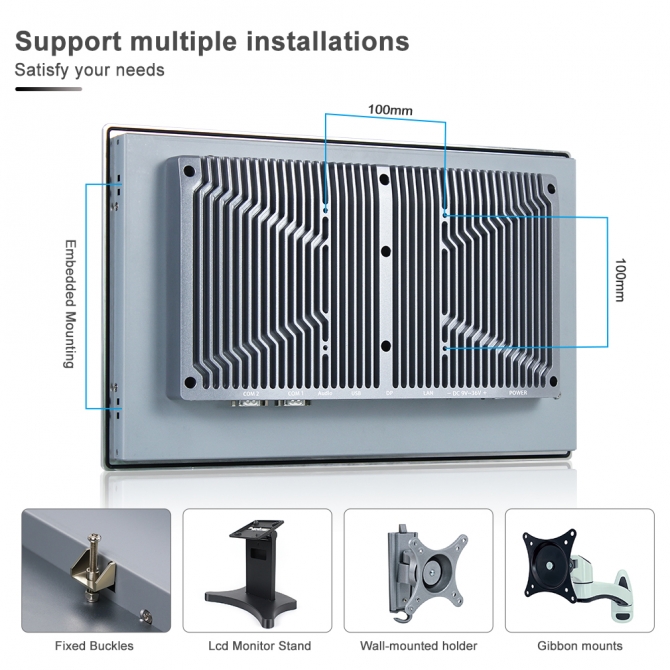

Mounting |

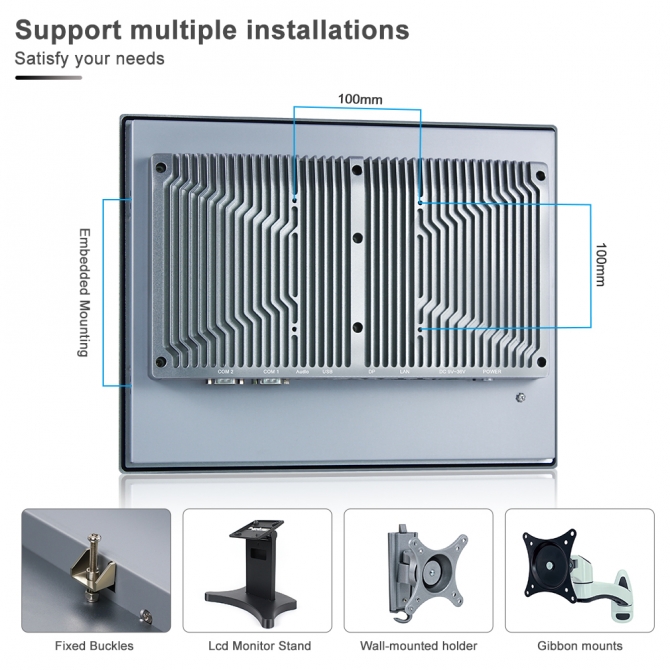

Stand / Wall / VESA / Panel |
|
|
Dimension (W x H x D） |
361 x 285 x 65 mm |
|
|
Cut-out Size |
347 x 271 mm |
|
|
Packing Size |
460 x 180 x 400 mm |
|
|
Weight (Net) |
4.5 KG |
|
|
Environment |
||
|
Operating Temperature |

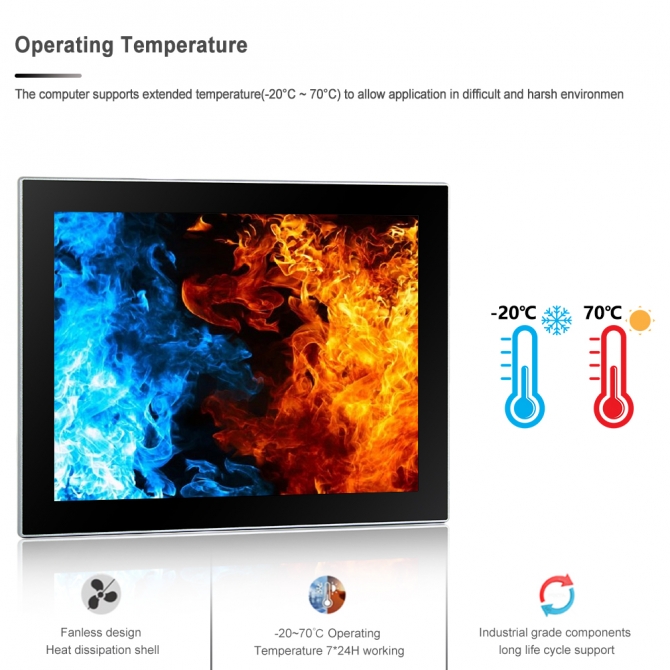

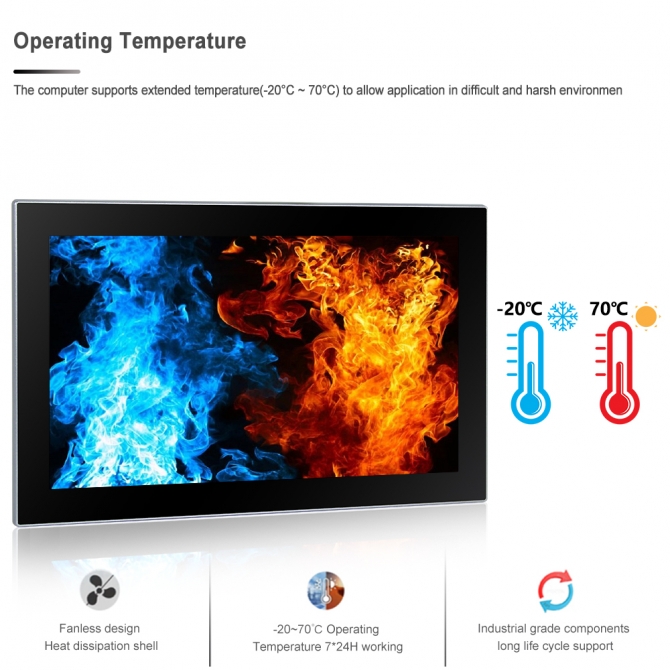

-20~70°C ( -4~158°F ) |
|
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
|

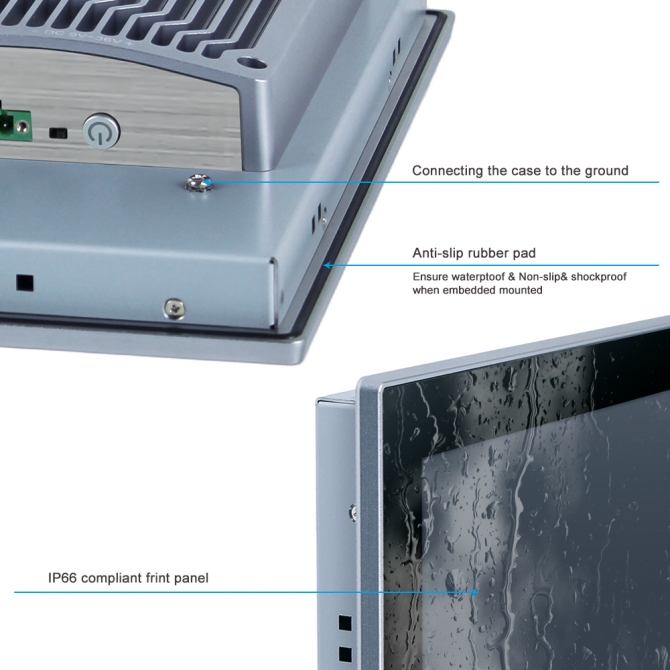

IP Level |

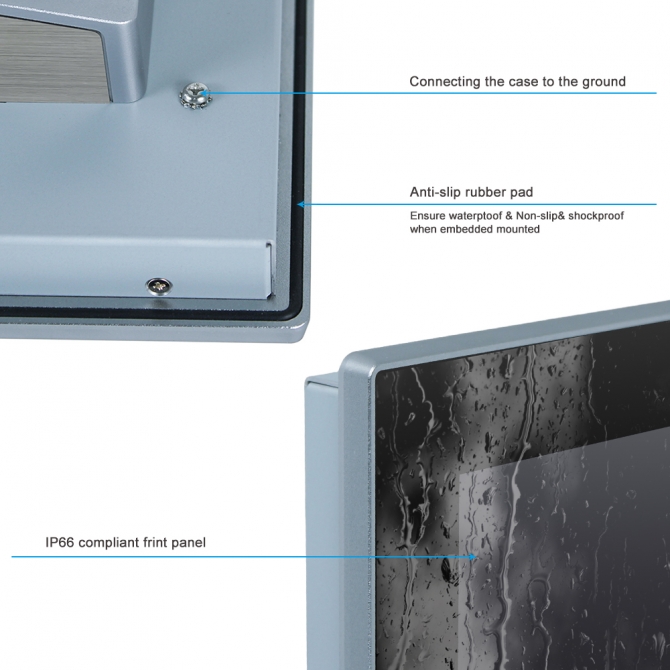

Front Panel IP66 |
|
|
EMC |
CE, FCC，KC ，Class A，ROHS ，IEC / EN 62368-1 |
|
|

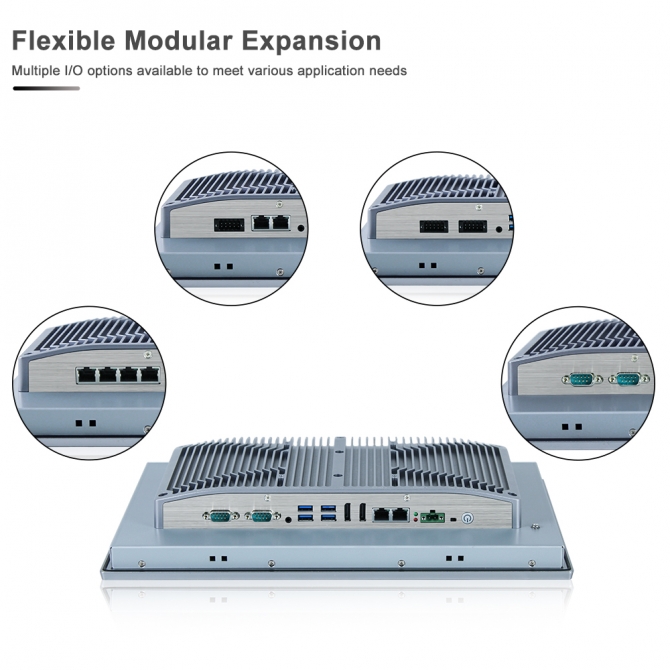

ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
PPC-5015SAC-15th-2C |
15" XGA LCD / Resolution 1024 x 768 / Intel® Core™ Ultra5 225U 1.3GHz / Optical bonding PCAP Touch / 2 x DP / 2 x Intel® I226V, 2.5GbE / 4 x USB 3.2 Gen 2 x 2 / 2 x RS-232 / 422 / 485 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
|
PPC-7015SAC-15th-2C |
15" XGA LCD / Resolution 1024 x 768 / Intel® Core™ Ultra5 255U 1.7GHz / Optical bonding PCAP Touch / 2 x DP / 2 x Intel® I226V, 2.5GbE / 4 x USB 3.2 Gen 2 x 2 / 2 x RS-232 / 422 / 485 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
|
PPC-5015SAC-15th-4C |
15" XGA LCD / Resolution 1024 x 768 / Intel® Core™ Ultra5 225U 1.3GHz / Optical bonding PCAP Touch / 2 x DP / 2 x Intel® I226V, 2.5GbE / 4 x USB 3.2 Gen 2 x 2 / 2 x RS232/RS422/RS485，2 x RS232 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
|
PPC-7015SAC-15th-4C |
15" XGA LCD / Resolution 1024 x 768 / Intel® Core™ Ultra5 255U 1.7GHz / Optical bonding PCAP Touch / 2 x DP / 2 x Intel® I226V, 2.5GbE / 4 x USB 3.2 Gen 2 x 2 / 2 x RS232/RS422/RS485，2 x RS232 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
|
PPC-5015SAC-15th-4L |
15" XGA LCD / Resolution 1024 x 768 / Intel® Core™ Ultra5 225U 1.3GHz / Optical bonding PCAP Touch / 2 x DP / 2 x Intel® I226V, 2.5GbE / 4 x USB 3.2 Gen 2 x 2 / 4 x Intel® I226V, 2.5GbE / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
|
PPC-7015SAC-15th-4L |
15" XGA LCD / Resolution 1024 x 768 / Intel® Core™ Ultra5 255U 1.7GHz / Optical bonding PCAP Touch / 2 x DP / 2 x Intel® I226V, 2.5GbE / 4 x USB 3.2 Gen 2 x 2 / 4 x Intel® I226V, 2.5GbE / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
|
PPC-5015SAC-15th-8D+2C |
15" XGA LCD / Resolution 1024 x 768 / Intel® Core™ Ultra5 225U 1.3GHz / Optical bonding PCAP Touch / 2 x DP / 2 x Intel® I226V, 2.5GbE / 4 x USB 3.2 Gen 2 x 2 / 2 x RS232/RS422/RS485，8 x Digital I/O (4in/4out) / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
|
PPC-7015SAC-15th-8D+2C |
15" XGA LCD / Resolution 1024 x 768 / Intel® Core™ Ultra5 255U 1.7GHz / Optical bonding PCAP Touch / 2 x DP / 2 x Intel® I226V, 2.5GbE / 4 x USB 3.2 Gen 2 x 2 / 2 x RS232/RS422/RS485，8 x Digital I/O (4in/4out) / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR5L 6400MHz SO-DIMM.16GB/96GB capacity |
|
Harddisk |
M.2 250G SSD (500G/1TB SSD Optional) |
|
WiFi |
Wifi Bluetooth Combo Module, with antenna |
|
4G/5G |
Full Netcom 4G/5G/LTE module, with antenna |
|
|
|
|
PACKING LIST |
|
|
15" Industrial Panel PC |
|
|
1 x 60W PSU (Power Supply) |
|
|
1 x Power cable & plug |
|
|
8 x Embedded Buckles |
|
