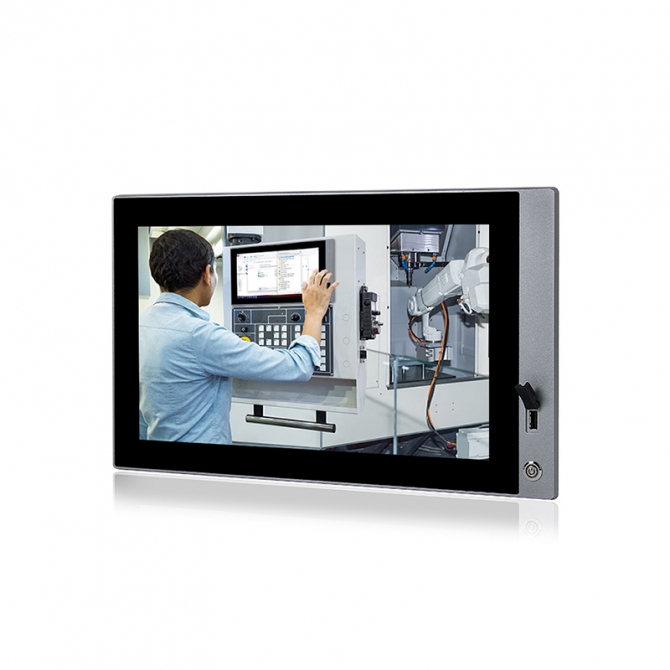

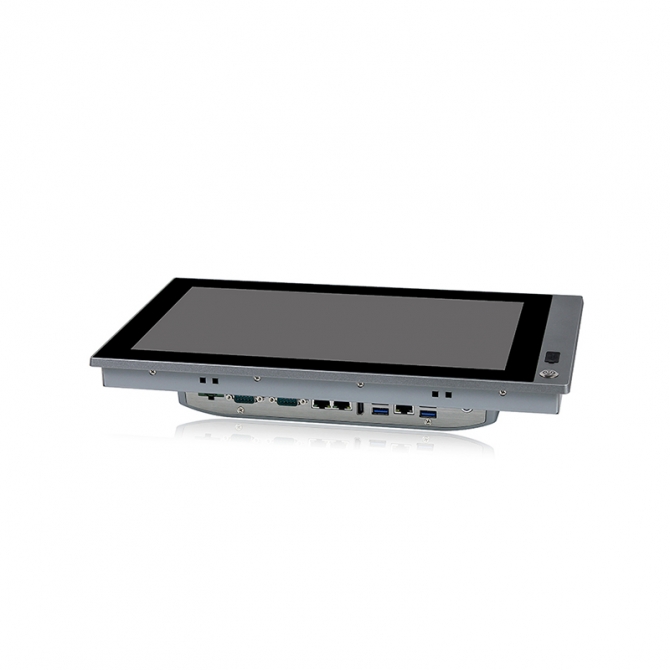

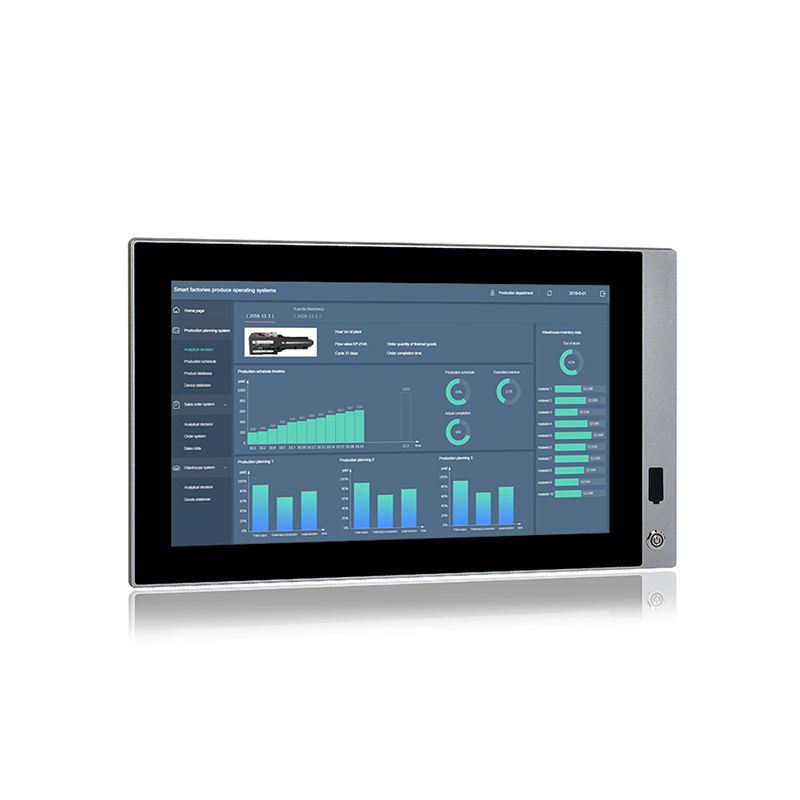

PPC-C133WBC

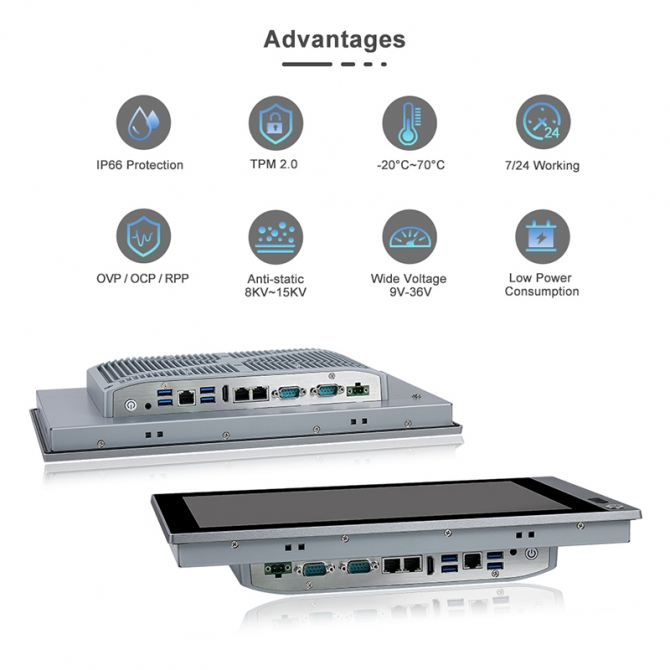

Product features：
- Industrial-grade 13.3" FHD LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control

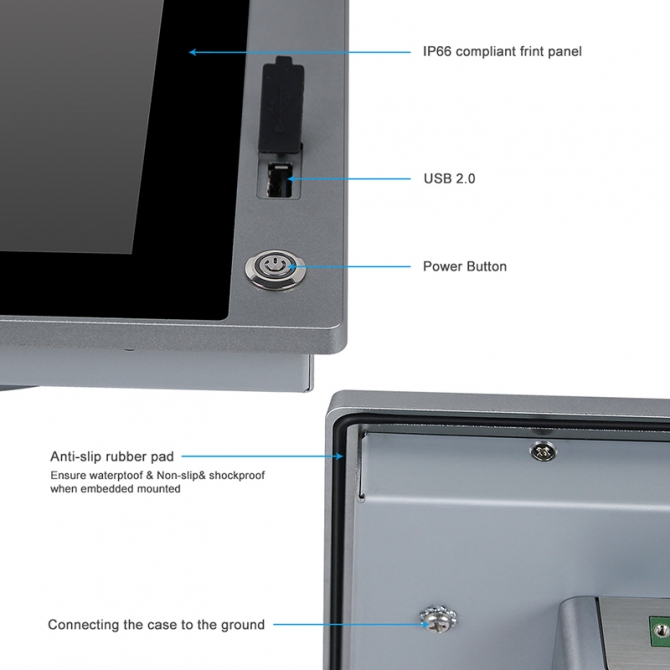

- IP66 grade aluminum alloy front panel
- Intel® Celeron® J6412 quad-core 2.0 GHz processor
- 1 x DDR4 SDRAM, max.32GB, 1 x M.2 2280 / 1 x 2.5" SATA SSD
- 3 x Intel® 226-V 2.5GbE Ethernet, support WoL and PXE
- 2 x RS232/422/485, RS485 support automatic flow control
- Support TPM2.0 hardware security

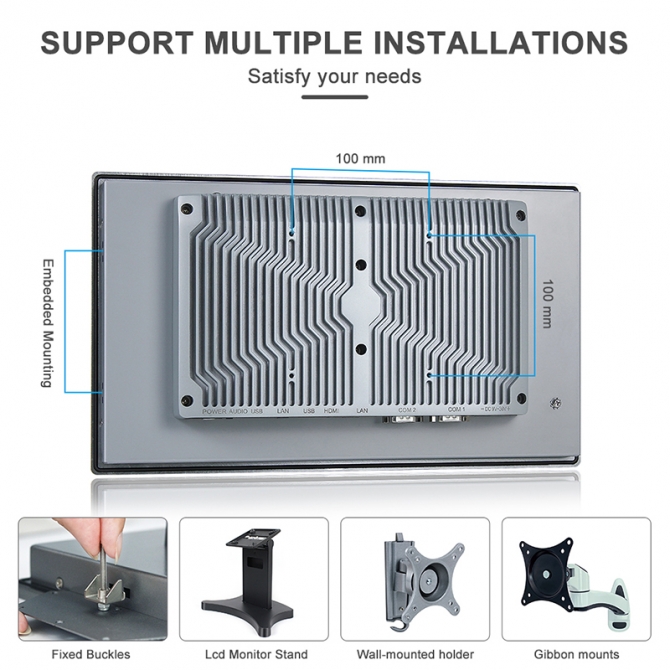

- Supports embedded / VESA 100mm x 100mm mounting holes
- 9V to 36V DC Wide Range Power Input，Supporting OVP / OCP / RPP
|
System |
|
|
CPU |
Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
|
L2 Cache |
1.5MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
DDR4L 3200MHz 4GB, MAX 32GB |
|
Harddisk |
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
|
Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
Network |
Intel® 226-V GbE LAN |
|
Audio |
Realtek ACL897 Audio controller |
|
TPM |
TPM 2.0 |
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 10 / 11， Linux, Ubuntu |
|

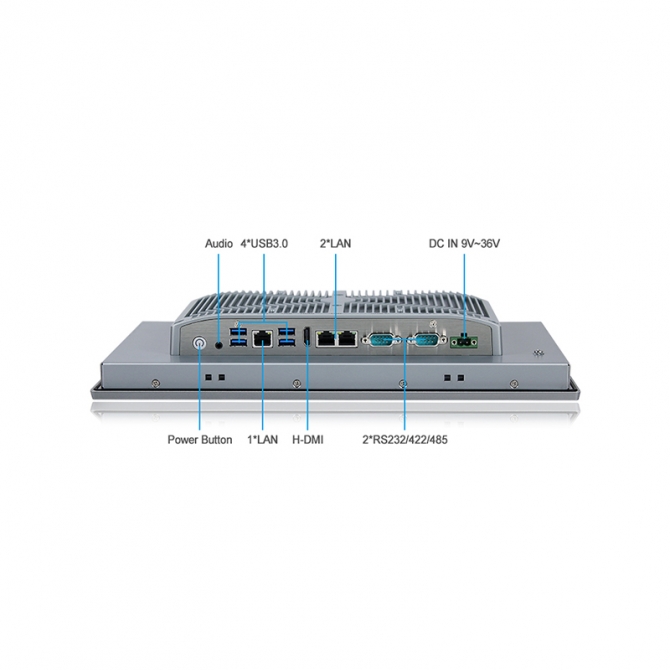

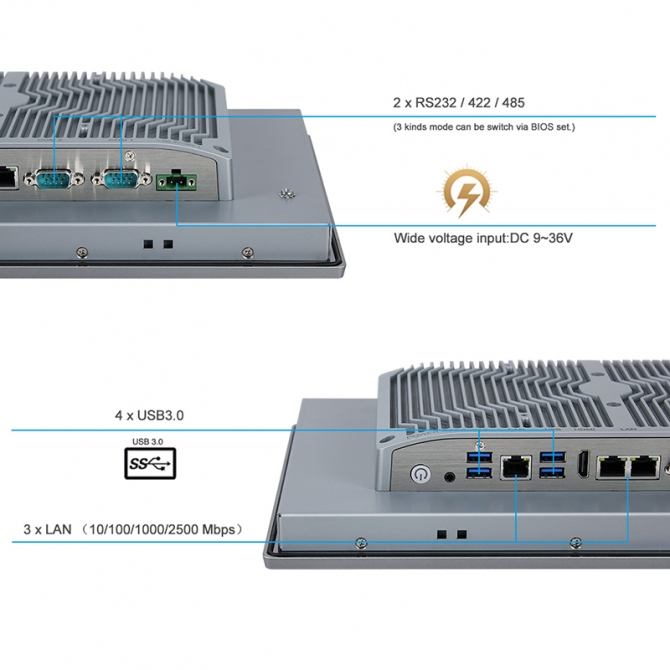

I/O |
|
|
VIDEO |
1 x H-DMI |
|
LAN |
3 x LAN （10/100/1000/2500 Mbps） |
|
USB |
4 x USB 3.0 / 1 x USB2.0 |
|
COM |
2 x RS-232 / 422 / 485 ( Adjustable through BIOS ) |
|
Audio |
1x Audio_out & Mic_in |
|
Wireless Network |
Optional（WiFi / Bluetooth / 4G / 5G ) |
|
Expansion |
|
|
M.2 |
1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT ) |
|
1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G ) |
|
|
1*M.2 ( Key-M, 2280, SATA / SSD ) |
|
|
SIM Socket |
1x SIM Socket |
|
Display |
|
|
LCD Size |
13.3" ( 16:9 ) |
|
Resolution |
1920 x 1080（ FHD ） |
|
Brightness (cd/m²) |
400 cd/m2 |
|
Contrast Ratio |
900:1 |
|
Backlight MTBF |
50000 Hr (min.) |
|
Viewing Angle |
85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
10 point PCAP |
|
Surface Hardness |
≥7H |
|
Power |
|
|
Power Adapter |
1 x Optional AC/DC 12V/5A ，60W |
|
Power Mode |
Support AT, ATX Mode |
|
Power Input |
2-pin Terminal Block Connector with Power Input 9~36VDC |
|
Power Protection |
OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP（Reverse Polarity Protection） |
|
Power Consumption |
≦30W |
|
Physical |
|
|
Material |
Aluminum alloy panel, anodized treatment |
|
Mounting |
Stand / Wall / VESA / Panel |
|
Dimension (W x H x D） |
368 x 216 x 60 mm |
|
Cut-out Size |
356 x 202 mm |
|
Packing Size |
540 x 170 x 330 mm |
|
Weight (Net) |
3.5 KG |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
Front Panel IP66 |
|
EMC |
CE, FCC，KC ，Class A，ROHS ，IEC / EN 62368-1 |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
PPC-C133WBC |
13.3" FHD LCD / Resolution 1920 x 1080 (FHD) / Intel Celeron J6412 2.0GHz / PCAP Touch / 1 x HDMI / 3 x LAN / 2 x COM (RS232 / 422 / 485) / 4 x USB3.0 / 1 x USB2.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR4L 3200MHz SO-DIMM.4GB/32GB capacity |
|
Harddisk |
M.2/2.5" SATA SSD：120G/250G/500G/2TB optional |
|
WiFi |
Wifi Bluetooth Combo Module, with antenna |
|
4G/5G |
Full Netcom 4G/5G/LTE module, with antenna |
|
|
|
|
PACKING LIST |
|
|
13.3" Industrial Panel PC |
|
|
1 x CD-ROM |
|
|
1 x 60W PSU (Power Supply) |
|
|
1 x Power cable & plug |
|
|
8 x Panel mount metal clips |
|
