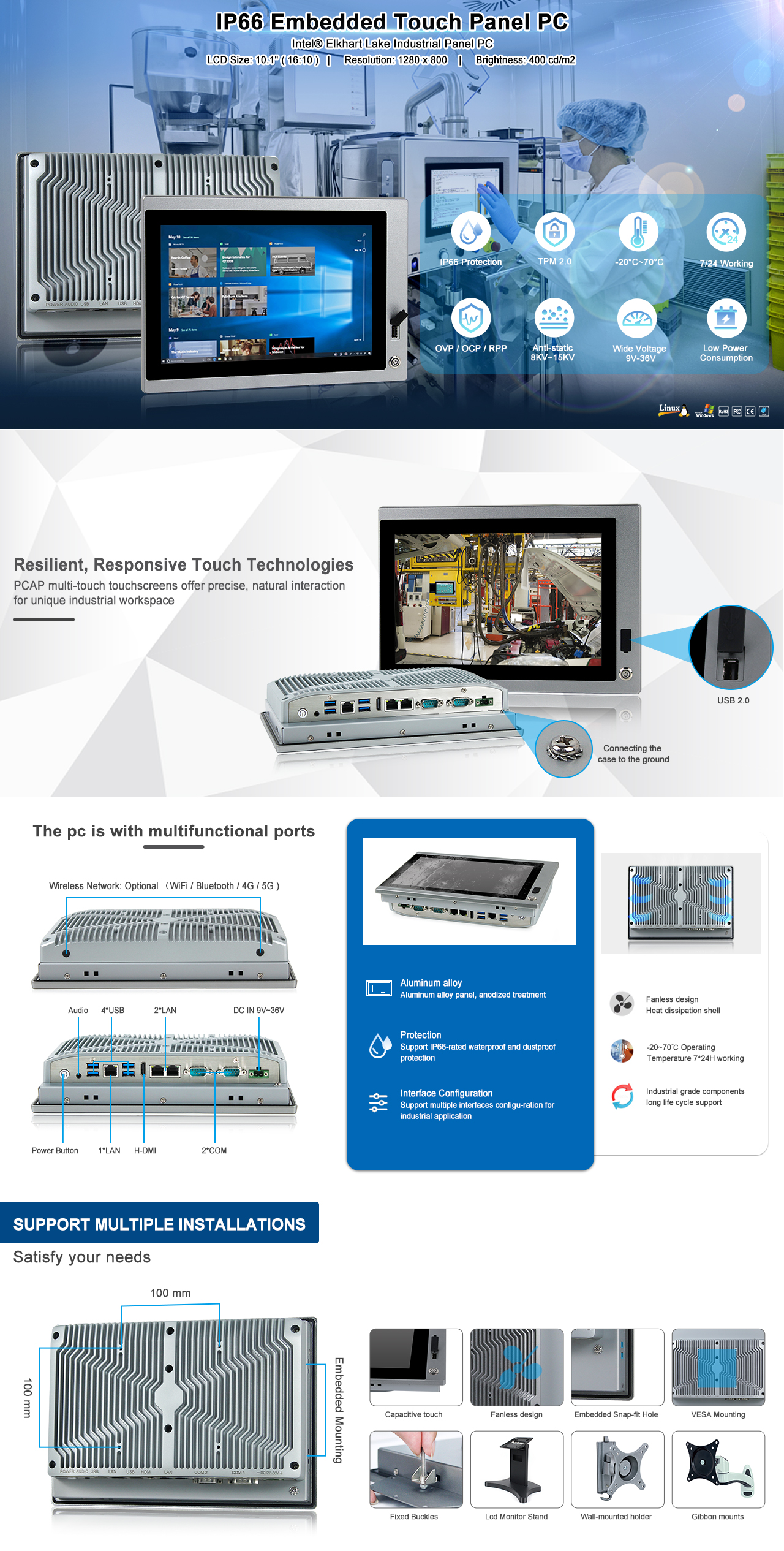

PPC-C010WBC
Product features:
- Industrial-grade 10.1" XGA LCD panel with 30k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- IP66 grade aluminum alloy front panel
- Intel® Celeron® J6412 quad-core 2.0 GHz processor
- 1 x DDR4 SDRAM, max.32GB, 1 x M.2 2280 / 1 x 2.5" SATA SSD
- 3 x Intel® 226-V 2.5GbE Ethernet, support WoL and PXE
- 2 x RS232/422/485, RS485 support automatic flow control
- Support TPM2.0 hardware security
- Supports embedded / VESA 100mm x 100mm mounting holes
- 9V to 36V DC Wide Range Power Input,Supporting OVP / OCP / RPP
![CE](/Data/logo/625e28bef2858.png)
![RoHS](/Data/logo/625e289f83fb2.png)
![FC](/Data/logo/625e28b65e7c8.png)
![TPM](/Data/logo/625e28cf54315.png)
![IP66](/Data/logo/625e28e51f0c7.png)
![](/Data/editor/664ff5b49588f.jpg)
System |
|
CPU |
Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
L2 Cache |
1.5MB |
System Chipset |
Integrated with Intel® SoC |
Memory |
DDR4L 3200MHz 4GB, MAX 32GB |
Harddisk |
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
Network |
Intel® 226-V GbE LAN |
Audio |
Realtek ACL897 Audio controller |
TPM |
TPM 2.0 |
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
Operation System |
Windows 10 / 11, Linux, Ubuntu |
I/O |
|
VIDEO |
1 x H-DMI |
LAN |
3 x LAN (10/100/1000/2500 Mbps) |
USB |
4 x USB 3.0 / 1 x USB2.0 |
COM |
2 x RS-232 / 422 / 485 ( Adjustable through BIOS ) |
Audio |
1x Audio_out & Mic_in |
Wireless Network |
Optional(WiFi / Bluetooth / 4G / 5G ) |
Expansion |
|
M.2 |
1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT ) |
1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G ) |
|
1*M.2 ( Key-M, 2280, SATA / SSD ) |
|
SIM Socket |
1x SIM Socket |
Display |
|
LCD Size |
10.1" ( 16:10 ) |
Resolution |
1280 x 800 |
Brightness (cd/m²) |
400 cd/m2 |
Contrast Ratio |
900:1 |
Backlight MTBF |
30000 Hr (min.) |
Viewing Angle |
85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) |
Touch screen |
|
Touch Type |
10 point PCAP |
Surface Hardness |
≥7H |
Power |
|
Power Adapter |
1 x Optional AC/DC 12V/5A ,60W |
Power Mode |
Support AT, ATX Mode |
Power Input |
2-pin Terminal Block Connector with Power Input 9~36VDC |
Power Protection |
OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP(Reverse Polarity Protection) |
Power Consumption |
≦30W |
Physical |
|
Material |
Aluminum alloy panel, anodized treatment |
Mounting |
Stand / Wall / VESA / Panel |
Dimension (W x H x D) |
275 x 194 x 58 mm |
Cut-out Size |
263 x 182 mm |
Packing Size |
360 x 180 x 320 mm |
Weight (Net) |
2.8 KG |
Environment |
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
Storage Temperature |
-30~80°C (-22~176°F) |
Relative Humidity |
5%~95%@40°C, non-condensing |
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
IP Level |
Front Panel IP66 |
EMC |
CE, FCC,KC ,Class A,ROHS ,IEC / EN 62368-1 |
ORDERING INFORMATION |
|
AVAILABLE MODELS |
DESCRIPTION |
PPC-C010WBC |
10.1" XGA LCD / Resolution 1280 x 800 / Intel Celeron J6412 2.0GHz / PCAP Touch / 1 x HDMI / 3 x LAN / 2 x COM (RS232 / 422 / 485) / 4 x USB3.0 / 1 x USB2.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
|
|
CONFIGURATION |
DESCRIPTION |
Memory |
RAM:DDR4L 3200MHz SO-DIMM.4GB/32GB capacity |
Harddisk |
M.2/2.5" SATA SSD:120G/250G/500G/2TB optional |
WiFi |
Wifi Bluetooth Combo Module, with antenna |
4G/5G |
Full Netcom 4G/5G/LTE module, with antenna |
|
|
PACKING LIST |
|
10.1" Industrial Panel PC |
|
1 x CD-ROM |
|
1 x 60W PSU (Power Supply) |
|
1 x Power cable & plug |
|
8 x Panel mount metal clips |
