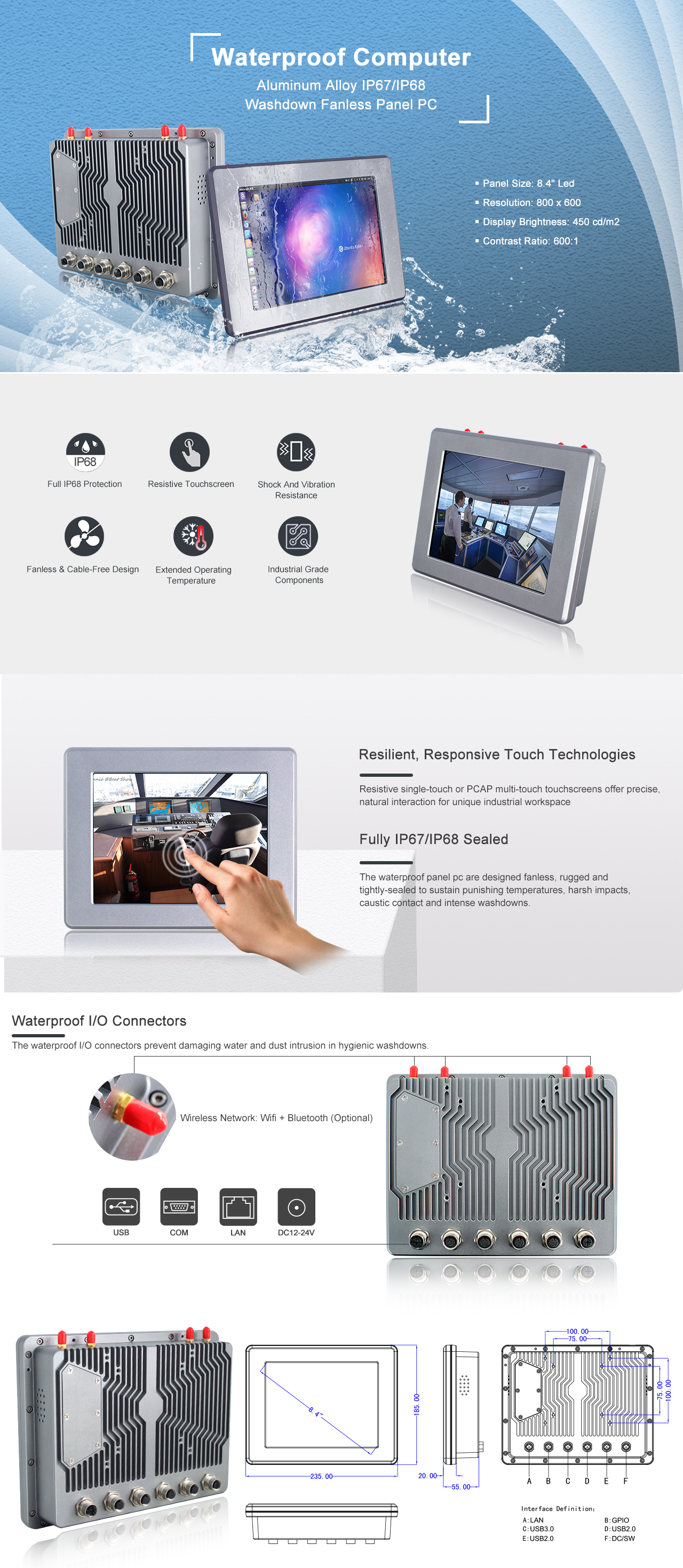

WPC-P008SAR

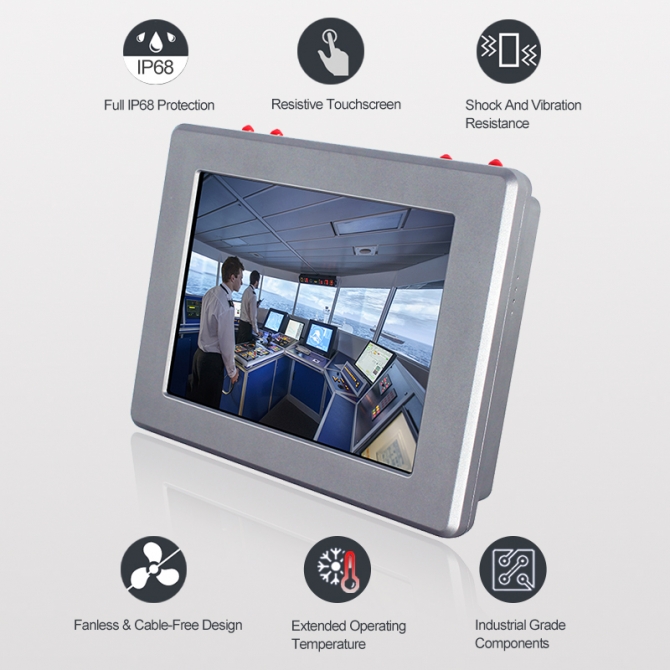

Product features：
- Industrial-grade 8.4" SVGA LCD panel with 50k backlight lifetime
- High precision 5-wires resistive touch, EETI controller
- 6th Gen Intel® Skylake Core™ i5-6200U dual-core 2.3GHz processor
- 1 x DDR4 SDRAM, max.32GB, 1 x mSATA SSD
- SP13 I/O ports：2 x LAN / 2 x USB / 1 x COM
- Full device IP67 with Strong aluminum alloy casing
- Wide Operating Temperature -20°C to 70°C
- 12V to 24V DC Wide Range Power Input
|
System |
|
|
CPU |
6th Gen Intel® Skylake Core i5-6200U Dual Core 2.3GHz , TDP 15W |
|
L2 Cache |
3MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
1 x DDR4L 2133MHz 4GB, Up to 32GB |
|
Harddisk |
1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) / 1 x 2.5" SATA |
|
Graphics |
Intel HD Graphics 520 |
|
Network |
Intel® I211-AT GbE LAN |
|
Audio |
Realtek ACL662 Audio controller |
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 7 / 8 / 10 ，Linux, Ubuntu |
|
I/O |
|
|
VIDEO |
1 x H-DMI ( Optional ) |
|
LAN |
2 x SP13 Waterproof Giga LAN RJ45 Connector |
|
USB |
2 x SP13 Waterproof Connector For USB2.0 |
|
COM |
1 x SP13 Waterproof Connector For COM |
|
Wireless Network |
Optional ( WiFi / Bluetooth / 4G ) |
|
Other I/O Interface |
1 x Power Switch |
|
Expansion |
|
|
mPCe |
1 x mPCe ( Wifi+BT+4G ) |
|
SIM Socket |
1x SIM Socket |
|
Display |
|
|
LCD Size |
8.4" ( 4:3 ) |
|
Resolution |
800 x 600 |
|
Brightness (cd/m²) |
450 cd/m2 |
|
Contrast Ratio |
600:1 |
|
Backlight MTBF |
50000 hrs (min.) |
|
Viewing Angle |
80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
5 wire Resistive touch |
|
Surface Hardness |
≥3H |
|
Power |
|
|
Power Adapter |
1 x Optional AC/DC 12V/5A , 60W |
|
Power Input |
2-Pin SP13 Power Input 12~24VDC |
|
Power Consumption |
≦40W |
|
Physical |
|
|
Material |
Aluminum Alloy Shell |
|
Mounting |
Stand / Wall / VESA |
|
Dimension (W x H x D） |
235 x 185 x 55 mm |
|
Packing Size |
450 x 170 x 350 mm |
|
Weight (Net) |
2.8 KG |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
IP67 / IP69K |
|
EMC |
CE , FCC，Class A，ROHS |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
WPC-P008SAR |
8.4" SVGA LCD / Resolution 800 x 600 / 6th Gen Intel® Skylake Core i5-6200U 2.3GHz / Resistive Touch / 2 x LAN / 1 x COM / 2 x USB / DC IN 12V~24V |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR4L 2133MHz 4GB, Up to 32GB |
|
Harddisk |
mSATA / 2.5" SATA SSD 128G (250G/500G/1TB SSD) |
|
WiFi |
Wifi Bluetooth Combo Module, with antenna |
|
4G |
Full Netcom 4G/LTE module, with antenna |
|
|
|
|
PACKING LIST |
|
|
8.4" Waterproof Industrial PC |
|
|
1 x 60W PSU (Power Supply) |
|
|
2 x SP13 Waterproof LAN Cable 2M |
|
|
2 x SP13 Waterproof USB Cable 2M |
|
|
1 x SP13 Waterproof COM Cable 2M |
|
|
1 x CD-ROM |
|
