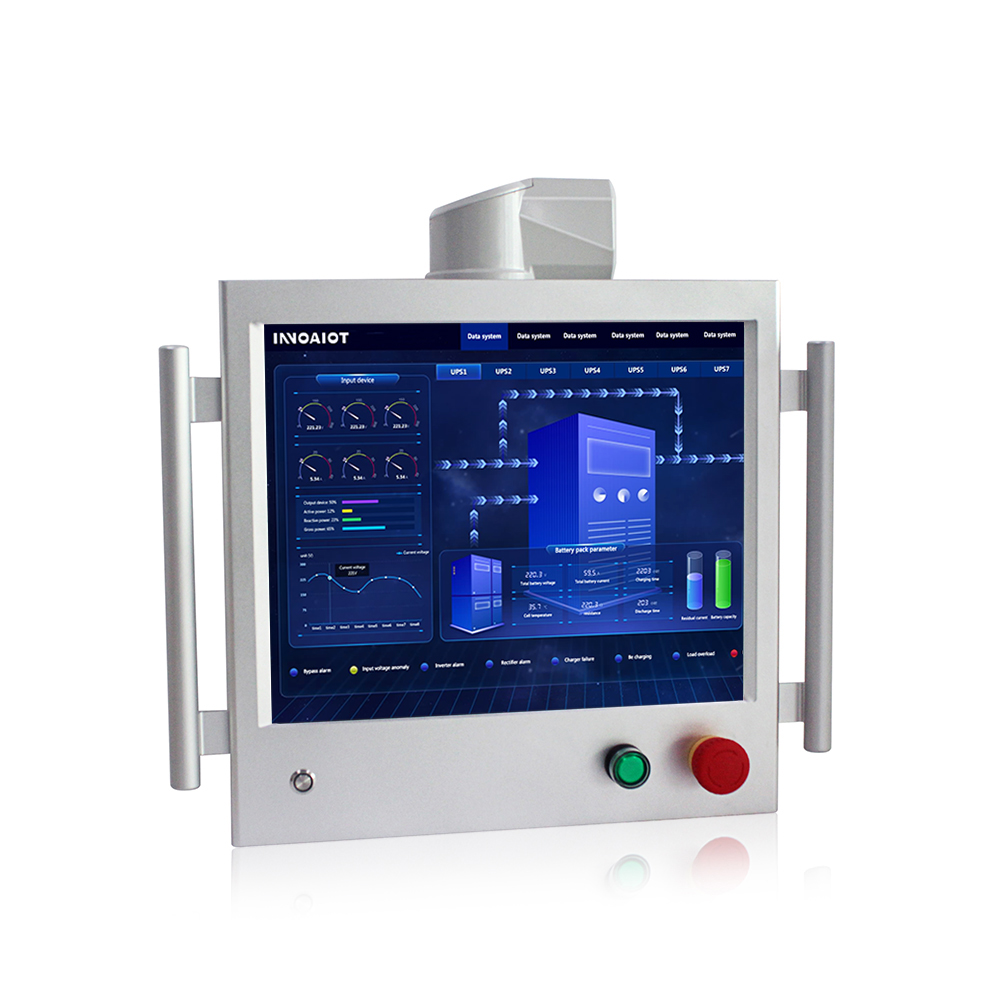

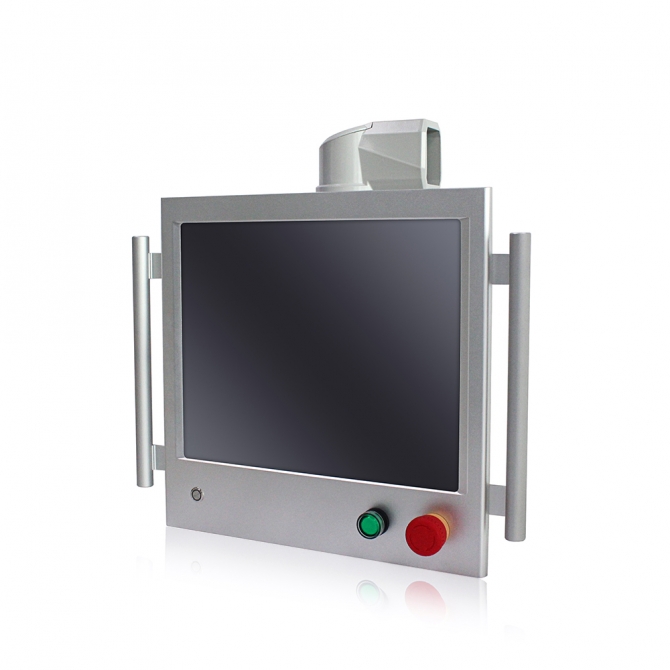

DCP-J017SBR
Product features：
- Industrial-grade 17" SXGA LCD panel with 50k backlight lifetime

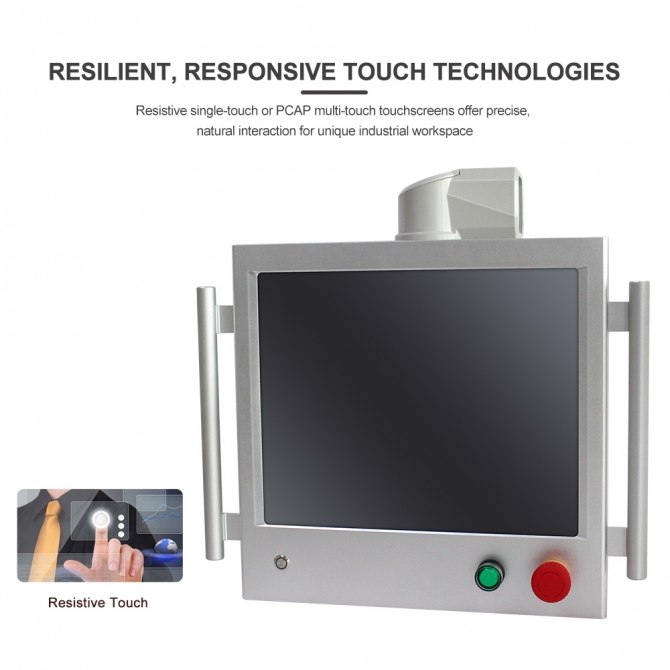

- High precision 5-wires resistive touch, EETI controller
- Intel® Celeron® J1900 quad-core 2.0 GHz processor
- 1 x DDR3 SDRAM, max.8GB, 1 x mSATA SATA SSD
- 2 x Intel® 226-V 2.5GbE, support WoL and PXE
- Support IDEC series button expansion and 44-60 Series Cantilever Assembly

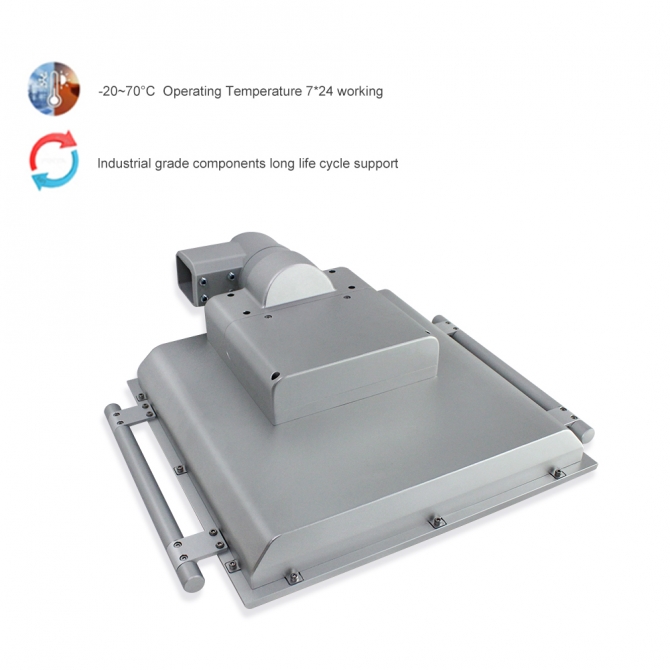

- Wide Operating Temperature -20°C to 70°C
- 12V to 24V DC Wide Range Power Input
|
System |
|
|
CPU |
Intel® Bay Trail Celeron J1900 Quad-core 2.0GHz , TDP 10W |
|
L2 Cache |
2.0MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
DDR3L 1333MHz 4GB, Up to 8GB |
|
Harddisk |
1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional |
|
Graphics |
Intel HD Graphics |
|
Network |
Intel® 226-V GbE LAN |
|
Audio |
Realtek ACL662 Audio controller |
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 7 / 8 / 10， Linux, Ubuntu |
|
I / O |
|
|
VIDEO |
1 x VGA / 1 x H-DMI |
|
LAN |
2 x LAN 10/100/1000/2500 Mbps |
|
USB |
3 x USB2.0 / 1 x USB3.0 |
|
Button |
IDEC φ22 Select / Green / Red / Stop Button ( optional ) |
|
Bracket kit |
44- 60 Light Cantilever Accessories |
|
Other I/O Interface |
Optional （WiFi / Bluetooth / 4G / ) |
|
Display |
|
|
LCD Size |
17" ( 5:4 ) |
|
Resolution |
1280 x 1024 |
|
Brightness (cd/m²) |
400 |
|
Contrast Ratio |
1000:1 |
|
Backlight MTBF |
50000 hrs |
|
Viewing Angle |
80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
5 Wire Resistive touch |
|
Surface Hardness |
≥3H |
|
Power |
|
|
Power Adapter |
1 x Optional AC/DC 12V/5A , 60W |
|
Power Input |
DC 12V~24V |
|
Power Consumption |
≦30W |
|
Physical |
|
|
Material |
Aluminum Alloy Shell |
|
Mounting |
Stand / Wall / VESA / Panel |
|
Dimension (W x H x D） |
400 x 390 x 155 mm |
|
Packing Size |
500 x 180 x 450 mm |
|
Weight (Net) |
12.0 KG |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |

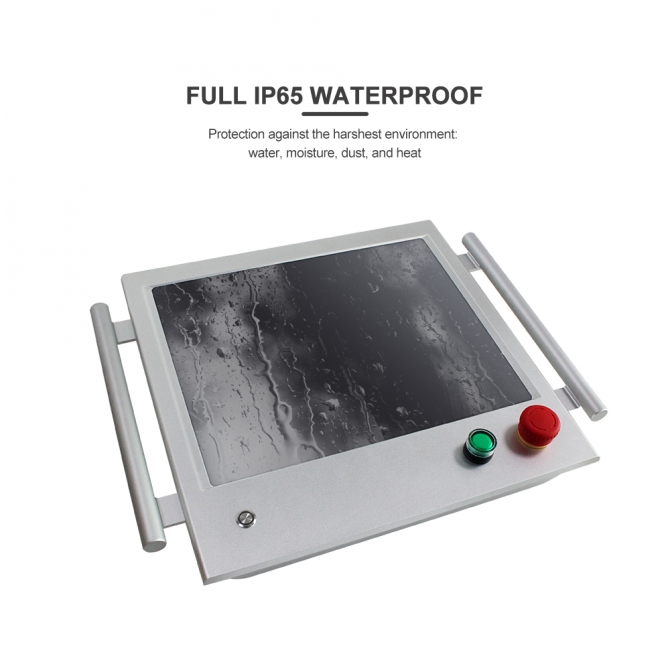

IP65 |
|
EMC |
CE, FCC，KC ，Class A，ROHS ，IEC / EN 62368-1 |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
DCP-J017SBR |
17" SXGA LCD / Resolution: 1280 x 1024 / Intel® Bay Trail Celeron J1900 2.0GHz / Resistive touch / 1 x VGA / 1 x H-DMI / 2 x LAN / 3 x USB2.0 / 1 x USB3.0 / IDEC φ22 Select / Green / Red / Stop Button ( Optional ) / 12V to 24V DC Wide Range Power Input |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR3L 1333MHz 4GB, Up to 8GB |
|
Harddisk |
mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional |
|
WiFi |
Wi-Fi Bluetooth Combo Module |
|
4G/5G |
Full Netcom 4G/5G/LTE module |
|
|
|
|
PACKING LIST |
|
|
1 x Standard product |
|
|
1 x 60W PSU (Power Supply) |
|
|
1 x CD-ROM |
|
|
1 x Power cable & plug |
|
