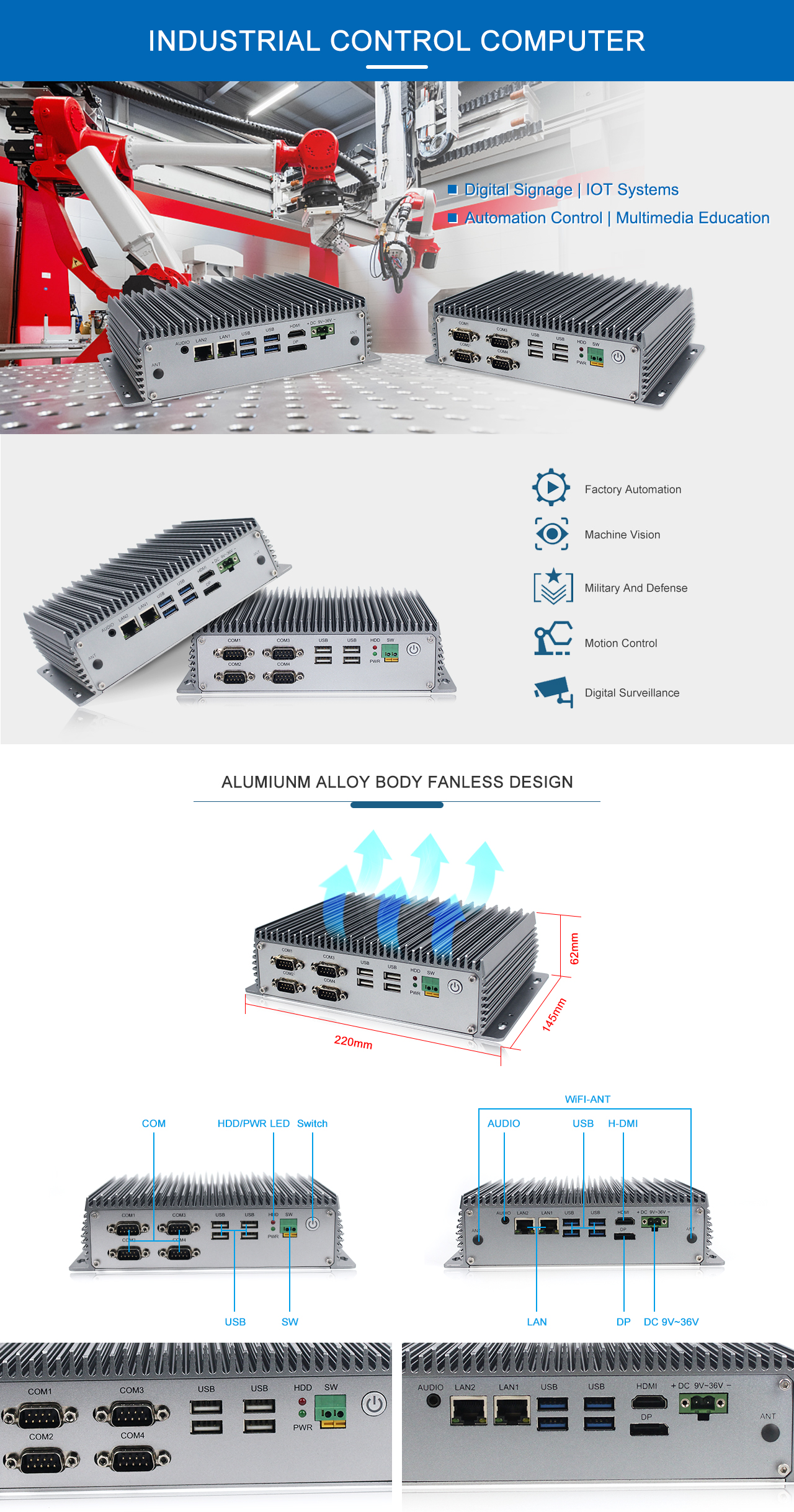

EFIC-10005B
Product features：
- Intel 8th Core i5-8265U 1.6GHz Fanless Configuration
- 2*Gigabit Ethernet Ports, Wake on LAN and PXE Supported
- 4*COM (RS232/RS485 Optional), 1*WiFi / Bluetooth / 4G Optional
- TPM 2.0 Support For Maximum Security
- Work temperature -20 ° C to 70 ° C
- DC 9V~36V, Overcurrent, Overvoltage & Reverse Polarity Protection
|
System |
|
|
CPU |
Intel® 8th Gen Core i3-8145U 2.1GHz / i5-8265U 1.6GHz / i7-8565U 1.8GHz , TDP 25W |
|
L2 Cache |
4MB / 6MB / 8MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
DDR4L 2400MHz 4GB, Up to 64GB |
|
Harddisk |
1 x M.2 120G SSD / ( 250G / 500G / 2TB SSD) / 1 x 2.5” SATA |
|
Graphics |
Intel HD Graphics 620 |
|
Network |
Intel® I211-AT GbE LAN |
|
Audio |
Realtek ACL662 Audio controller |
|
TPM |
TPM2.0 |
|
Operation System |
Windows 10 / 11， Linux, Ubuntu |
|
I / O |
|
|
VIDEO |
1 x DP / 1 x H-DMI |
|
Ethernet |
2 x LAN 10/100/1000 Mbps |
|
USB |
4 x USB2.0 / 4 x USB3.0 |
|
COM |
4 x RS232 |
|
Audio |
1x Audio_out & Mic_in |
|
Wireless Network |
Optional （WiFi / Bluetooth / 4G / ) |
|
Power |
|
|
Power Adapter |
1 x Optional AC/DC 12V/4A , 48W |
|
Power Input |
2-pin Terminal Block Connector with Power Input 9~36V DC |
|
Power Consumption |
≦35W |
|
Physical |
|
|
Material |
Aluminum Alloy Shell |
|
Color |
Grey / Silver / Black ( optional ) |
|
Mounting |
208 x 100 mm / 208 x 60 mm |
|
Product Dimension |
220 x 145 x 62 mm |
|
Packing Size |
360 x 180 x 320 mm |
|
Weight (Net) |
1.5 KG |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Range |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
EMC |
CE, FCC，Class A，ROHS |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
EFIC-10003B |
Intel Core i3-8145U 2.1GHz / DP / H-DMI / 2x LAN / 4x USB2.0 / 4x USB3.0 / 4x COM / TPM2.0 / DC 9V~36V (OVP / OCP / RPP) |
|
EFIC-10005B |
Intel Core i5-8265U 1.6GHz / DP / H-DMI / 2x LAN / 4x USB2.0 / 4x USB3.0 / 4x COM / TPM2.0 / DC 9V~36V (OVP / OCP / RPP) |
|
EFIC-10007B |
Intel Core i7-8565U 1.8GHz / DP / H-DMI / 2x LAN / 4x USB2.0 / 4x USB3.0 / 4x COM / TPM2.0 / DC 9V~36V (OVP / OCP / RPP) |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR4L 2400MHz SO-DIMM.4GB/64GB |
|
Harddisk |
M.2 SSD：120G (250G/500G/2TB SSD） 1x2.5" SATA |
|
WiFi |
Wi-Fi Bluetooth Combo Module, with antenna |
|
|
|
|
PACKING LIST |
|
|
1x Embedded Fanless Industrial PC |
|
|
1x CD-ROM |
|
|
1x Power Adaptor |
|
