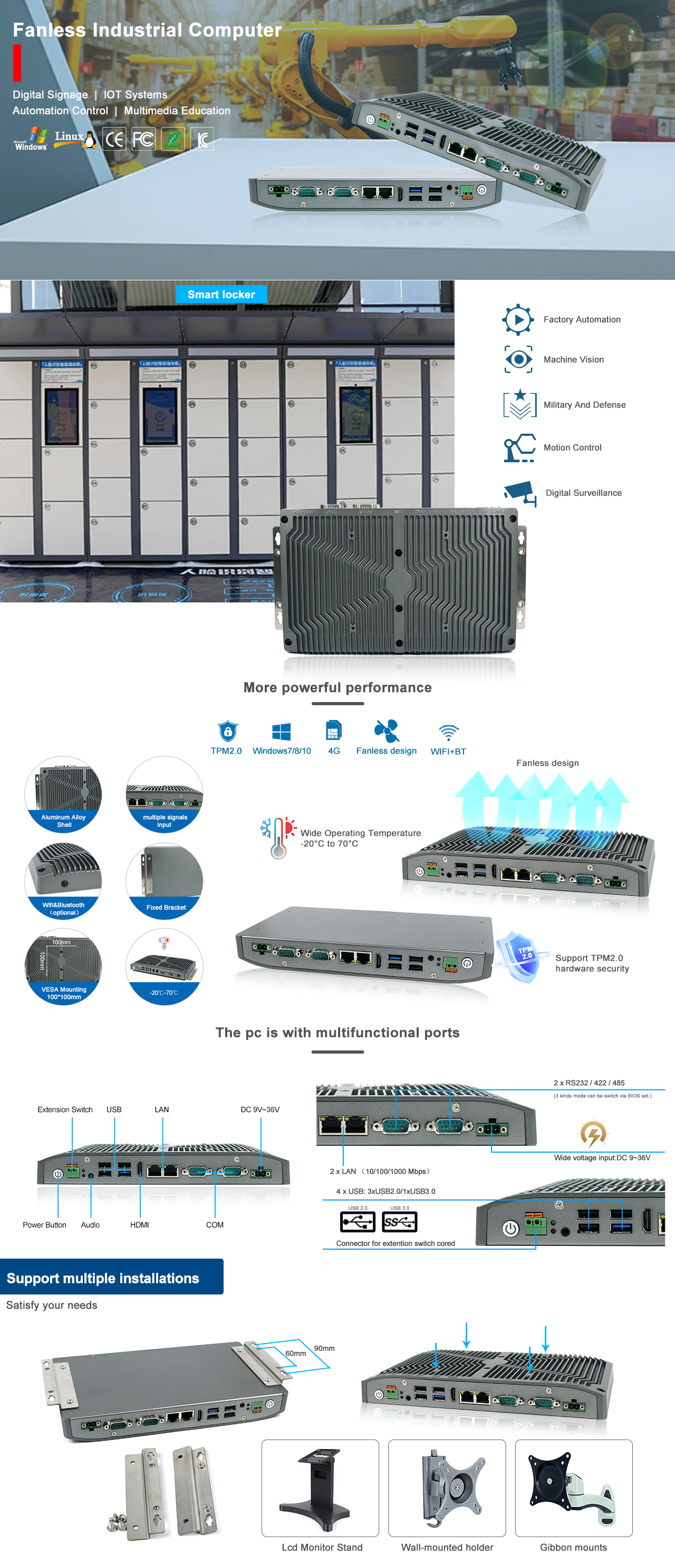

EFIC-5000JA
Product features：
- Intel® Celeron® J1900 quad-core 2.0 GHz processor
- 1 x DDR3 1333MHz SDRAM, max.8GB, 1 x mSATA SSD
- 1 x M2.0 (2230, Wifi+BT)，1 x M2.0 3042，4G)
- 2 x Intel® 211 1GbE Ethernet, support WoL and PXE
- 2 x RS232/422/485, RS485 support automatic flow control
- Support TPM2.0 hardware security
- Wide Operating Temperature -20°C to 70°C
- 9V to 36VDC Wide Range Power Input，Supporting OVP / OCP / RPP
|
System |
|
|
CPU |
Intel® Bay Trail Celeron J1900 Quad-core 2.0GHz |
|
L2 Cache |
2MB |
|
TDP |
10W |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
1 x DDR3L 1333MHz 4GB, Up to 8GB |
|
Harddisk |
1 x mSATA 128G SSD（250G / 500G / 1TB SSD) / 1 x 2.5" SATA |
|
Graphics |
Intel HD Graphics |
|
Network |
Intel® I211-AT GbE LAN |
|
Audio |
Realtek ACL662 Audio controller |
|
TPM |
TPM 2.0 |
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 7 / 8 / 10， Linux, Ubuntu |
|
I/O |
|
|
VIDEO |
1 x H-DMI |
|
Ethernet |
2 x LAN ( 10/100/1000 Mbps ) |
|
USB |
3 x USB2.0 / 1 x USB3.0 |
|
COM |
2 x RS-232 / 422 / 485 ( Adjustable through BIOS ) |
|
Audio |
1x Audio_out & Mic_in |
|
Wireless Network |
Optional （WiFi / Bluetooth / 4G ) |
|
Expansion |
|
|
M.2 |
1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT ) |
|
1*M.2 ( Key-B, 3042, USB2.0, 4G ) |
|
|
SIM Socket |
1x SIM Socket |
|
Power |
|
|
Power Input |
2-pin Terminal Block Connector with Power Input 9~36VDC |
|
Power Mode |
Support AT, ATX Mode |
|
Power Protection |
OVP (Over Voltage Protection) | OCP (Over Current Protection) | RPP（Reverse Polarity Protection） |
|
Power Consumption |
≦25W |
|
Physical |
|
|
Material |
Aluminum Alloy Shell |
|
Color |
Grey / Silver / Black ( optional ) |
|
Mounting |
272 x 90 mm / 272 x 60 mm |
|
Product Dimension |
258 x 158 x 33 mm |
|
Packing Size |
360 x 180 x 320 mm |
|
Weight (Net) |
1.2 KG |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-40~85°C (-40~185°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
EMC |
CE, FCC，Class A，ROHS |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
EFIC-5000JA |
Intel® Bay Trail Celeron J1900 / 1 x H-DMI / 2 x LAN / 3 x USB2.0 / 1 x USB3.0 / 2 x COM / TPM2.0 / DC 9V~36V (OVP / OCP / RPP) |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR3L 1333MHz 4GB, Up to 8GB |
|
Harddisk |
mSATA：(120G/250G/500G/2TB) 1 x 2.5" SATA |
|
WiFi |
Wifi Bluetooth Combo Module, with antenna |
|
4G/5G |
Full Netcom 4G/LTE module, with antenna |
|
|
|
|
PACKING LIST |
|
|
1 x Standard product |
|
|
1 x 60W PSU (Power Supply) |
|
|
1 x CD-ROM |
|
