System

CPU

12th Generation Intel® Core™ i3-1215U 1.2GHz

12th Generation Intel® Core™ i5-1235U 1.3GHz

12th Generation Intel® Core™ i7-1255U 1.7GHz

TDP

15W

15W

15W

L3 Cache

10MB

12MB

12MB

Graphics

Intel® UHD Graphics

Intel® Iris® Xe Graphics

Intel® Iris® Xe Graphics

System Chipset

Integrated With Intel® SoC

Memory

2 x DDR5 4800MHz 8GB, Up to 64GB

Harddisk

2 x M.2 120G SSD ( 250G / 500G / 2TB SSD)

Network

2 x Intel® I226, 2.5GbE / 1 x Intel® I219, 1GbE

Audio

Realtek ALC897 Audio controller

TPM

TPM 2.0

Watchdog Timer

255 Timer Levels, Set up by Software

Operation System

Windows 10 / 11， Linux, Ubuntu

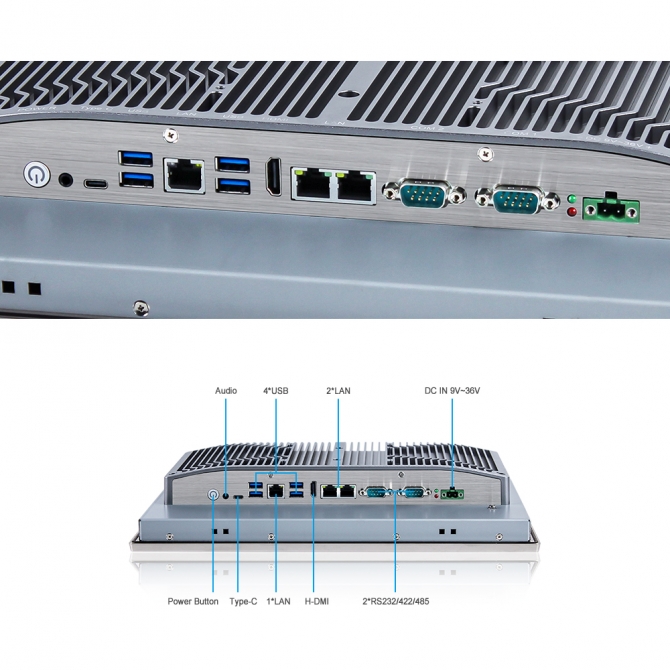

I/O

VIDEO

1 x H-DMI

Ethernet

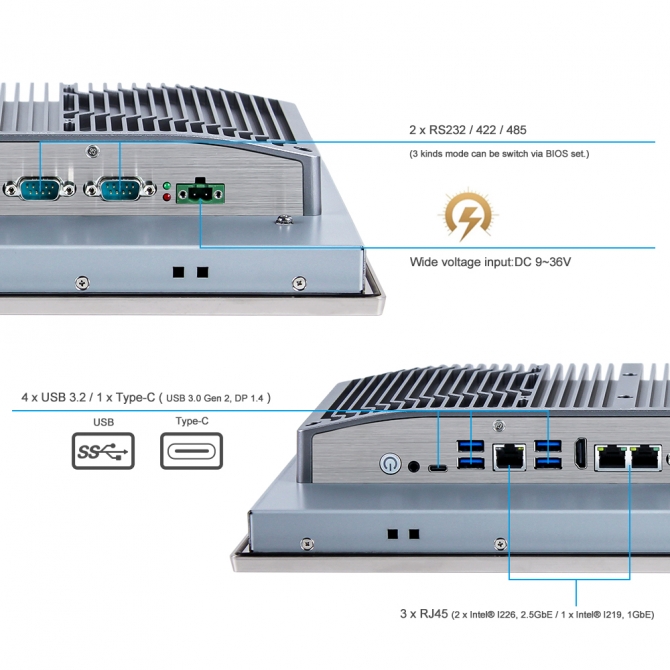

3 x RJ45

USB

4 x USB 3.2 / 1 x Type-C x 1 ( USB 3.0 Gen 2, DP 1.4 )

COM

2 x RS-232 / 422 / 485 ( Adjustable through BIOS )

Audio

1x Audio_out & Mic_in

Wireless Network

Optional ( WiFi / Bluetooth / 4G / 5G )

Expansion

M.2

1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT )

1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G )

2*M.2 ( Key-M, 2280, NVMe/ SATA, SSD )

SIM Socket

1x SIM Socket

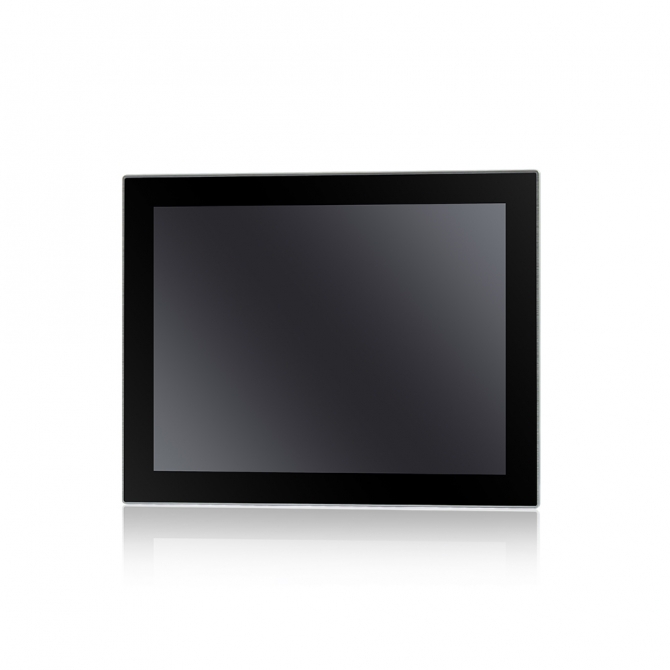

Display

LCD Size

15" ( 4:3 )

Resolution

1024 x 768

Brightness (cd/m²)

350 cd/m2

Contrast Ratio

1000:1

Backlight MTBF

50,000 hrs ( LED Backlight )

Viewing Angle

89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )

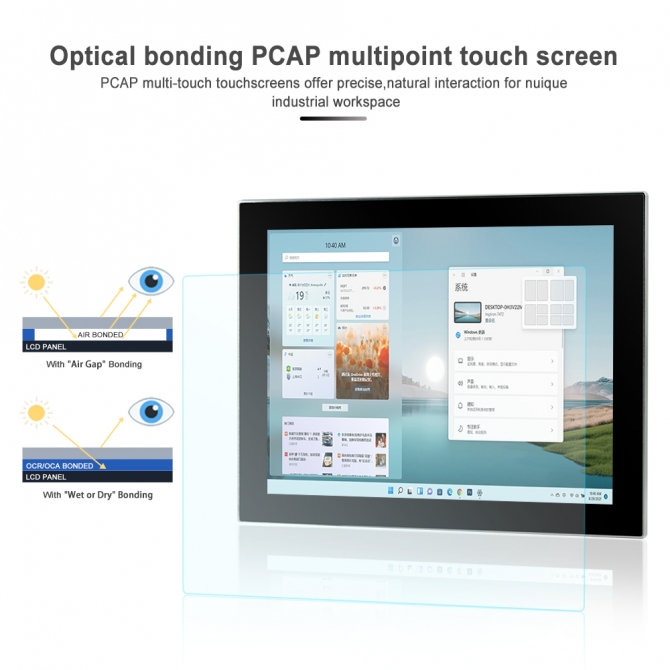

Touch screen

Touch Type

Projected Capacitive Multi-touch

Surface Hardness

≥7H

Power

Power Adapter

1 x Optional AC/DC 12V/5A , 60W

Power Mode

Support AT, ATX Mode

Power Input

9~36VDC，2-Pin Terminal Block Connector with Power Input

Power Protection

OVP (Over Voltage Protection)  |  OCP (Over Current Protection)  |  RPP（Reverse Polarity  Protection）

Power Consumption

≦45W

Physical

Material

Aluminum alloy panel, anodized treatment

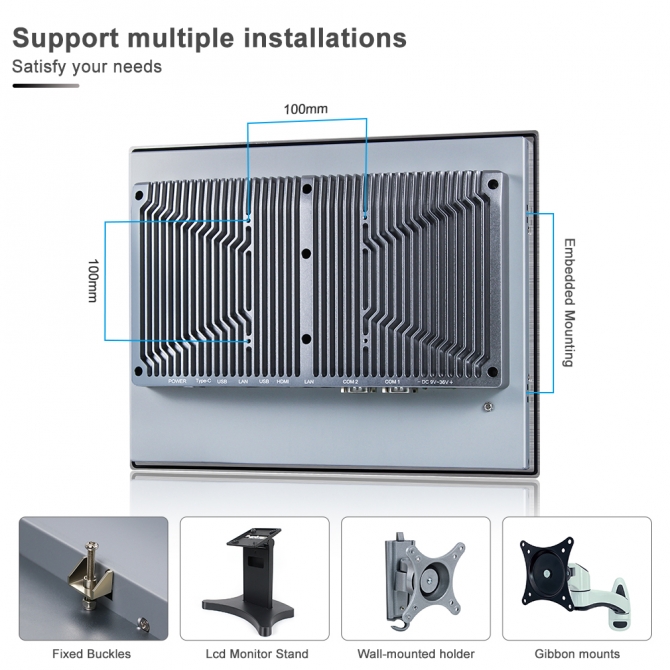

Mounting

Stand / Wall / VESA / Panel

Dimension (W x H x D）

361 x 285 x 65 mm

Cut-out Size

347 x 271 mm

Packing Size

460 x 180 x 400 mm

Weight (Net)

4.5 KG

Environment

Operating Temperature

-20~70°C  ( -4~158°F )

Storage Temperature

-30~80°C (-22~176°F)

Relative Humidity

5%~95%@40°C, non-condensing

Vibration Protection

1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

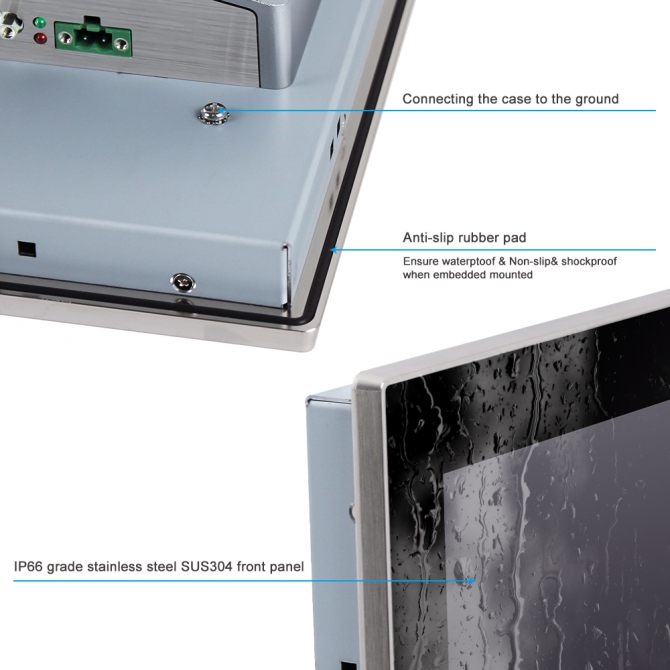

IP Level

Front Panel IP66

EMC

CE, FCC，UL，KC ，Class A，ROHS ，IEC， EN 62368-1

ORDERING INFORMATION

AVAILABLE MODELS

DESCRIPTION

PPC-3015SAC-12th

15" XGA LCD / Resolution 1024 x 768 / PCAP Touch / 12th Generation Intel® Core™ i3-1215U 1.2GHz / 1 x H-DMI / 3 x LAN / 4 x USB3.2 / 1 x Type-C / 2 x COM / TPM2.0 / DC IN 9V~36V (OVP / OCP / RPP)

PPC-5015SAC-12th

15" XGA LCD / Resolution 1024 x 768 / PCAP Touch / 12th Generation Intel® Core™ i5-1235U 1.3GHz / 1 x H-DMI / 3 x LAN / 4 x USB3.2 / 1 x Type-C / 2 x COM / TPM2.0 / DC IN 9V~36V (OVP / OCP / RPP)

PPC-7015SAC-12th

15" XGA LCD / Resolution 1024 x 768 / PCAP Touch / 12th Generation Intel® Core™ i7-1255U 1.7GHz / 1 x H-DMI / 3 x LAN / 4 x USB3.2 / 1 x Type-C / 2 x COM / TPM2.0 / DC IN 9V~36V (OVP / OCP / RPP)

CONFIGURATION

DESCRIPTION

Memory

RAM：2 x DDR5 4800MHz 8GB, Up to 64GB

Harddisk

2 x M.2 120G SSD ( 250G / 500G / 2TB SSD)

WiFi

Wi-Fi Bluetooth Combo Module, with antenna

4G/5G

Full Netcom 4G/5G/LTE module, with antenna

PACKING LIST

1 x Standard product

1 x CD-ROM

1 x 60W PSU (Power Supply)

1 x Power cable & plug

8 x Panel mount metal clips
