System

CPU

8th Gen Intel® Core™  i3-8145U 2.1GHz

10th Gen Intel® Core™ i5-10210U 1.6GHz

8th Gen Intel® Core™ i7-8565U 1.8GHz

TDP

25W

25W

25W

L3 Cache

4MB

6MB

8MB

System Chipset

Integrated with Intel® SoC

Memory

2 x DDR4L 2400MHz 4GB, Up to 64GB

Harddisk

1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x mSATA

Graphics

Intel HD Graphics 620

Network

Intel® I211-AT GbE LAN

Audio

Realtek ACL897 Audio controller

TPM

TPM 2.0

Watchdog Timer

Software Programmable Supports 1~255 sec. System Reset

Operation System

Windows 10 / 11， Linux, Ubuntu

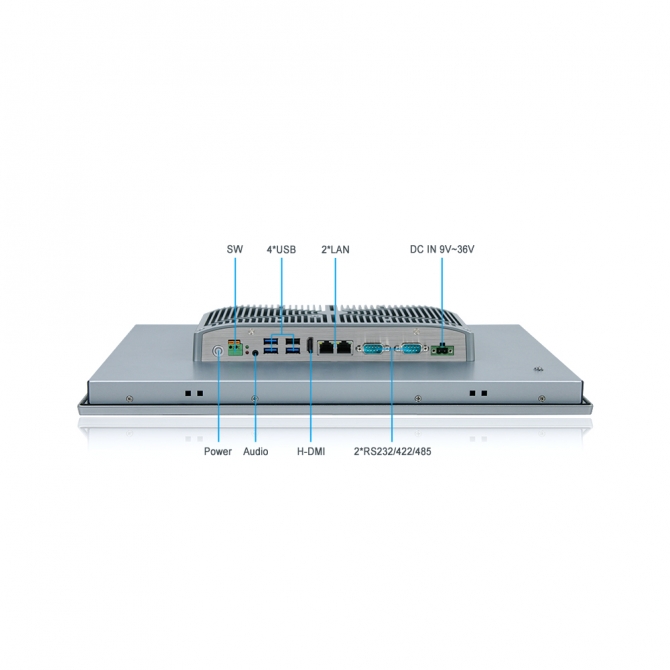

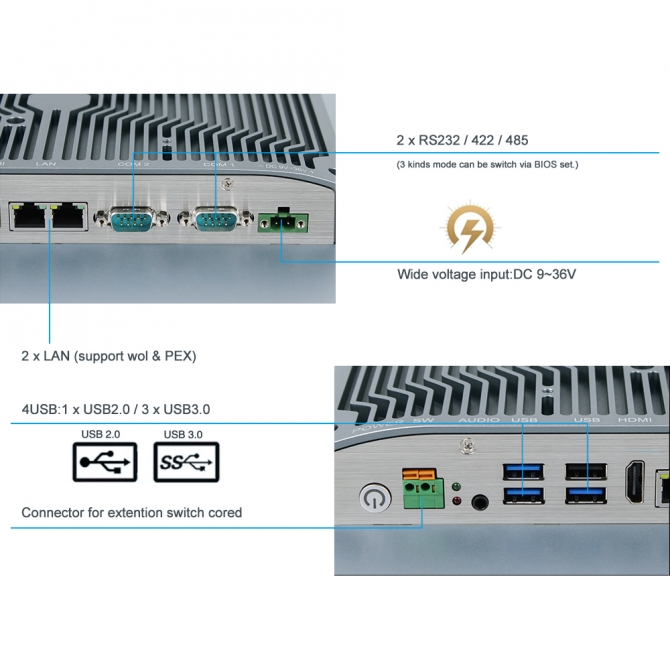

I/O

VIDEO

1 x H-DMI

Ethernet

2 x LAN （10/100/1000 Mbps）

USB

3 x USB 3.0 / 1 x USB 2.0

COM

2 x RS-232 / 422 / 485 ( Adjustable through BIOS )

Audio

1x Audio_out & Mic_in

Wireless Network

Optional （WiFi / Bluetooth / 4G / 5G )

Expansion

M.2

1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT )

1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G )

SIM Socket

1x SIM Socket

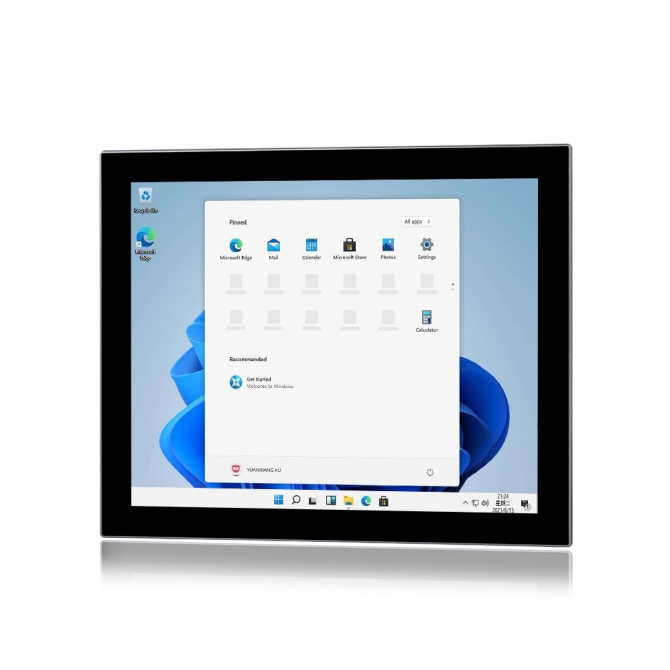

Display

LCD Size

19" ( 5:4 )

Resolution

1280 x 1024

Brightness (cd/m²)

450

Contrast Ratio

1000:1

Backlight MTBF

50000 hrs

Viewing Angle

89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )

Touch screen

Touch Type

10 point PCAP

Surface Hardness

≥7H

Power

Power Adapter

1 x Optional AC/DC 12V/5A , 60W

Power Mode

Support AT, ATX Mode

Power Input

2-pin Terminal Block Connector with Power Input 9~36VDC

Power Protection

OVP (Over Voltage Protection)  |  OCP (Over Current Protection)  |  RPP（Reverse Polarity  Protection）

Power Consumption

≦45W

Physical

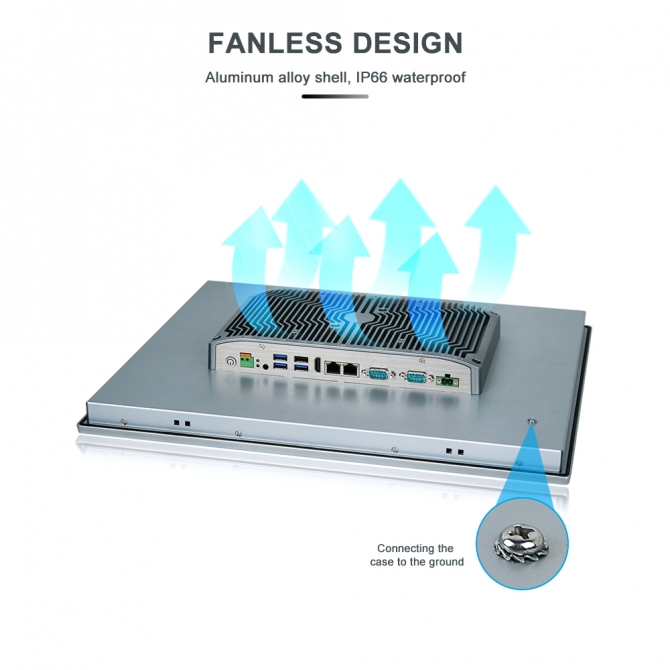

Material

Aluminum alloy panel, anodized treatment

Mounting

Stand / Wall / VESA / Panel

Dimension (W x H x D）

438 x 362 x 62 mm

Cut-out Size

420 x 345 mm

Packing Size

500 x 180 x 450 mm

Weight (Net)

6 KG

Environment

Operating Temperature

-20~70°C  ( -4~158°F )

Storage Temperature

-30~80°C (-22~176°F)

Relative Humidity

5%~95%@40°C, non-condensing

Vibration Protection

1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

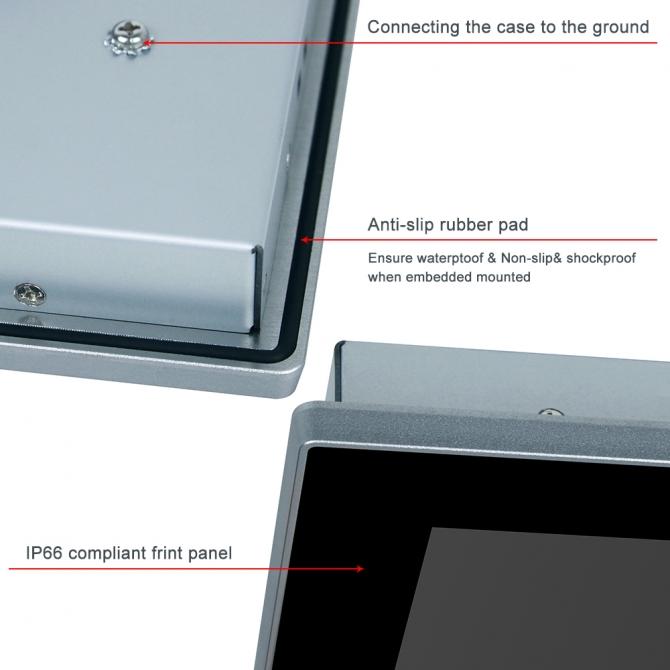

IP Level

Front Panel IP66

EMC

CE, FCC，KC ，Class A，ROHS ，IEC / EN 62368-1

ORDERING INFORMATION

AVAILABLE MODELS

DESCRIPTION

PPC-3019SAC

19" SXGA LCD / Resolution 1280 x 1024 / 8th Gen Intel® Core™ i3-8145U 2.1GHz / PCAP Touch / 1 x HDMI / 2 x LAN / 2 x COM ( RS232 / 422 /485 ) / 3 x USB3.0 / 1 x USB2.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP )

PPC-5019SAC

19" SXGA LCD / Resolution 1280 x 1024 / 10th Gen Intel® Core™ i5-10210U 1.6GHz / PCAP Touch / 1 x HDMI / 2 x LAN / 2 x COM ( RS232 / 422 /485 ) / 3 x USB3.0 / 1 x USB2.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP )

PPC-7019SAC

19" SXGA LCD / Resolution 1280 x 1024 / 8th Gen Intel® Core™ i7-8565U 1.8GHz / PCAP Touch / 1 x HDMI / 2 x LAN / 2 x COM ( RS232 / 422 / 485 ) / 3 x USB3.0 / 1 x USB2.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP )

CONFIGURATION

DESCRIPTION

Memory

RAM：DDR4L 2400MHz SO-DIMM.4GB/64GB

Harddisk

M.2 / mSATA SSD：120G/250G/500G/2TB

WiFi

Wi-Fi Bluetooth Combo Module, with antenna

4G/5G

Full Netcom 4G/5G/LTE module, with antenna

PACKING LIST

1 x Standard product

1 x CD-ROM

1 x 60W PSU (Power Supply)

1 x Power cable & plug

8 x Panel mount metal clips
