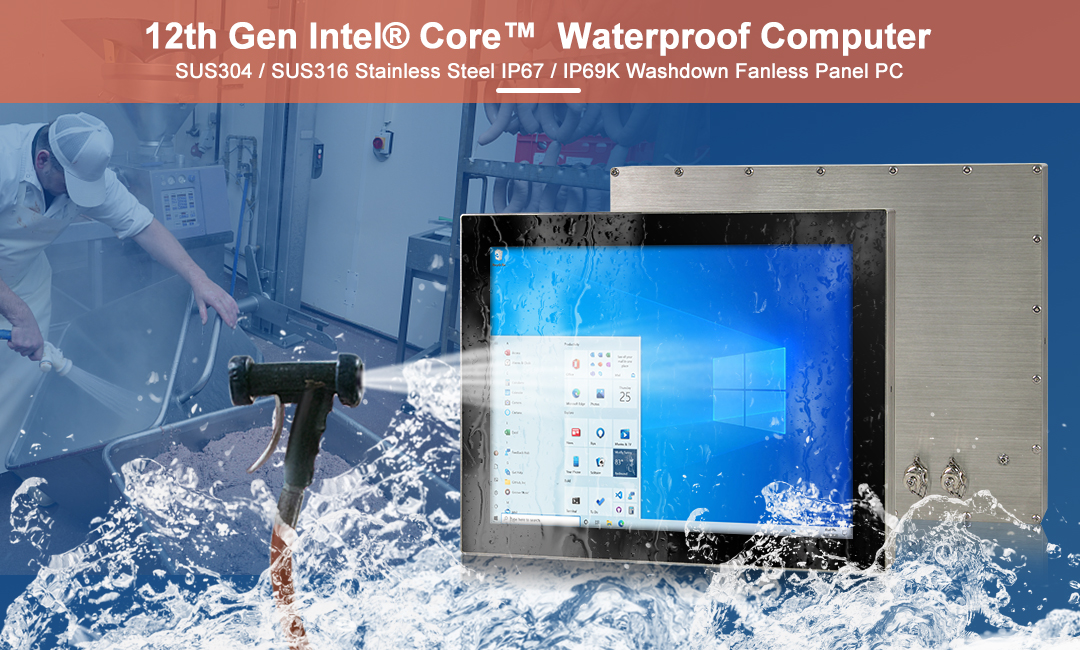

The QYT WPC-15SDC-12th is the latest fanless stainless steel wash-down waterproof computer, equipped with the 12th Gen Intel® Core™ i3 / i5 processor. This waterproof computer continues the compact design of its predecessor. QYT's industrial computers support multiple operating systems such as Windows, Linux, and Ubuntu. A full range of product sizes is available, from 15 inches to 23.8 inches, with a flat-panel touchscreen, and capacitive (PCAP) touch control can be flexibly configured according to usage requirements. The WPC 12th Gen processor offers a 24% speed improvement compared to the previous generation CPU.

In terms of memory, it supports 2 DDR5 slots, up to 64GB, with a 4800MHz frequency and ECC error correction technology, which can detect and correct memory errors in real-time, ensuring stability and reliability during data processing and transmission. Powered by Intel® UHD Graphics / Intel® Iris® Xe Graphics chips, it offers powerful graphics processing capabilities for finer image display and visual data analysis.

The WPC 12th Gen is equipped with a rich set of I/O interfaces, including 2 M12 / RJ45 waterproof connectors, 2 M12 / USB2.0 waterproof connectors, 1 M12 / COM waterproof connector, an internal expansion slot, and an expandable M.2 (1*M.2 (Key-E, 2230, PCIe+USB, Wifi+BT), M.2 (Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G), M.2 (Key-M, 2280, NVMe/SATA, SSD)). The WPC series also features an M.2 connector for integrating 4G/5G modules, as well as M.2 slots for 4G, 5G, LTE, Wi-Fi, and Bluetooth modules.

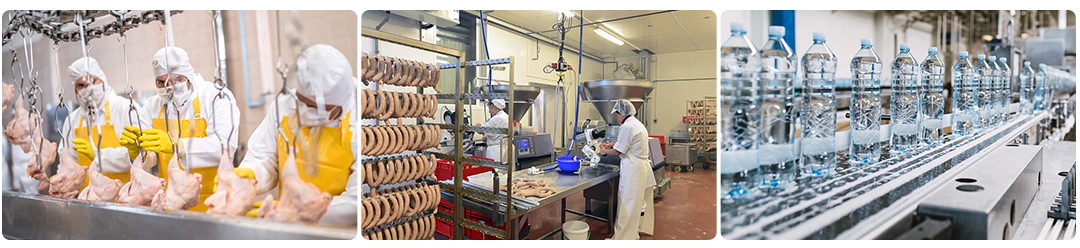

The full HD touchscreen display offers excellent imaging and visual quality. In the food processing industry, daily cleaning of automated equipment and process devices is critical to ensuring food safety. The human-machine interface (HMI) housing for food production facilities is made of stainless steel (SUS304 or SUS316) for corrosion resistance and features an IP66/IP69K protection rating, allowing it to withstand high-pressure and high-temperature washdowns and be cleaned with acidic detergents for easy daily wiping and washing.

The waterproof computer also supports a wide voltage input of DC9V~36V, with overcurrent, overvoltage, and reverse polarity protection. It features a stainless steel professional bracket and VESA mounting, enabling easy installation and deployment in various industrial environments. To assist factory management, the WPC series supports various software for data visualization, device monitoring, and centralized remote management. The WPC series offers flexible M12 connector I/O options, including HDMI/USB/RS232/RJ45/GPIO/WIFI, ensuring connectivity and compatibility. It is widely used in food, beverage, pharmaceutical, chemical, factory automation, and other high-standard application environments.

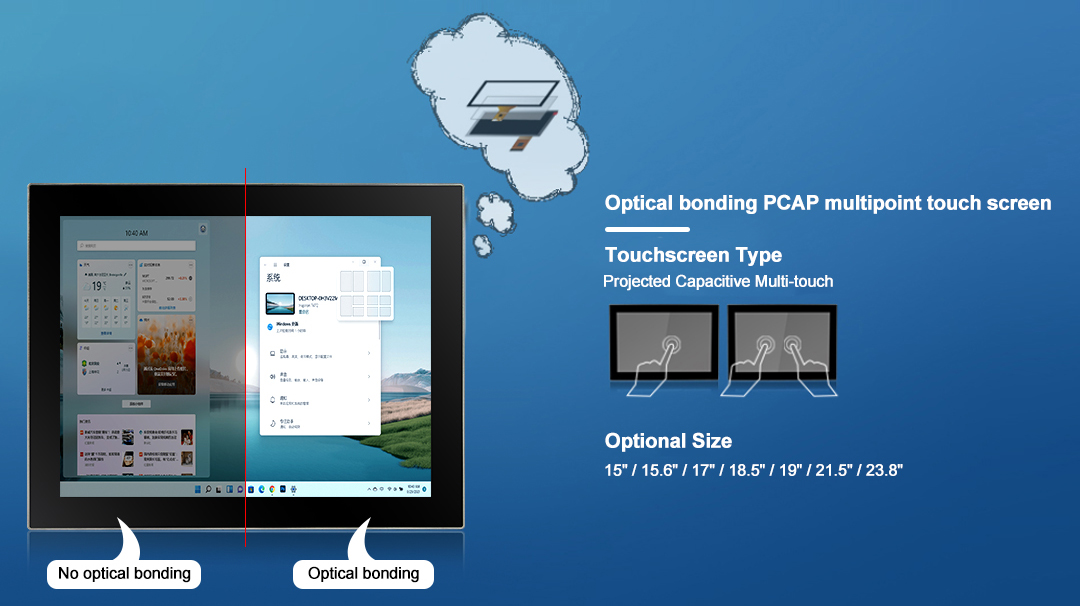

Flat-Panel Optical Bonding Capacitive Multi-Touch Screen

When selecting screens or displays, optical bonding is undoubtedly a revolutionary choice. InnoAioT's 12th Gen stainless steel models adopt optical bonding technology, significantly improving visibility and enhancing screen clarity while extending the product's lifespan. Ultimately, this enhances the overall user experience and adds value to industrial display systems.

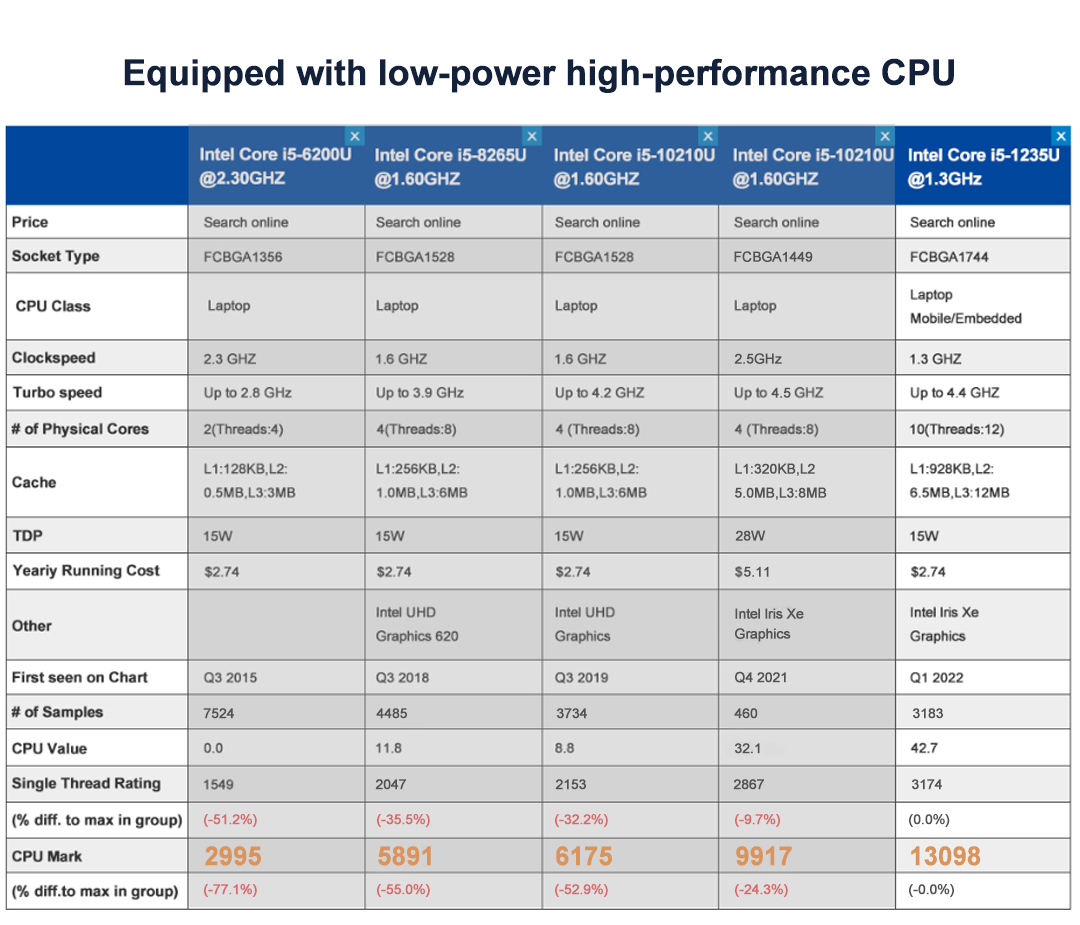

Low Power Consumption and High Performance

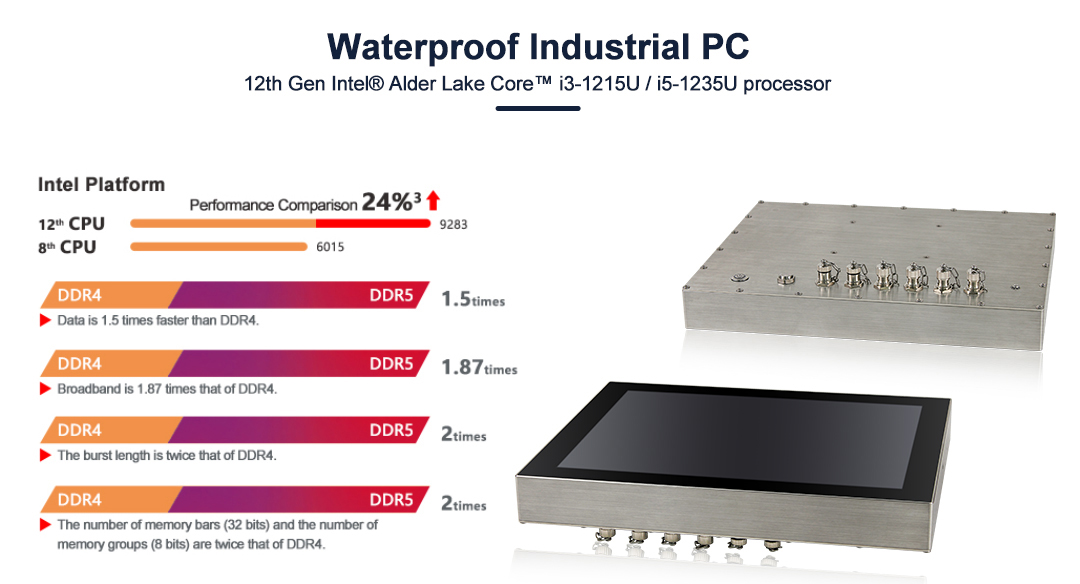

Equipped with the 12th Gen Intel® Core™ processor, it offers a choice of Core i3-1215U (1.2GHz) or i5-1235U (1.3GHz) processors. It supports Intel® Turbo Boost technology and multitasking to enhance computing performance. The system supports up to 64 GB of DDR5 memory for high-speed data processing and storage. Its grounding and chassis isolation prevent damage caused by electrical faults or power fluctuations. Furthermore, to ensure reliable operation in harsh industrial environments, the WPC series stainless steel waterproof computer supports wide-temperature operation (-2070°C / -22176°F) and has an IP66/IP69K protection rating, preventing dust, oil, and water ingress. The DDR5 4800MHz memory speed is 1.5 times faster than DDR4, with dual-channel SODIMM x 2, supporting up to 64GB. Graphics processing capabilities are doubled. The 12th Gen processor provides stable support for various industry applications with its powerful design features and industrial characteristics.

TPM 2.0 Function

The TPM standard ensures secure data storage, platform authentication, and integrity verification. The three-tier structure of TPM 2.0 allows for multiple keys, enhancing the security of the TPM 2.0 standard. This helps to better resist malware and rogue applications that affect legitimate processes.

Product Features

1. Rugged SUS304/INOX316 stainless steel housing. It can withstand high temperatures of up to 70°C and pressure up to 30 Bar for high-temperature, high-pressure washdowns and disinfection.

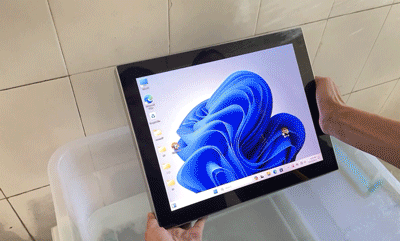

2. IP66/IP69K waterproof and dustproof rating, using M12 waterproof connectors for I/O ports, compatible with various data collection technologies such as rugged barcode readers.

3. Flat-panel capacitive multi-touch screen design with optical bonding LCD, ideal for condensation and humid environments.

1. Industrial-grade 15" XGA LCD screen with 50k backlight lifespan.

2. Full flat optical bonding capacitive multi-touch screen.

3. 12th Gen Intel® Alder Lake Core™ i3 / i5 processors.

4. 2 x DDR5 memory slots, up to 64GB, 1 * M.2 2280 NVMe or SATA SSD.

5. M12 I/O interface: 2 x LAN / 2 x USB / 1 x COM.

6. IP66/IP69K rated, SUS304/316 stainless steel structure.

7. Onboard TPM 2.0 module for maximum hardware security.

8. Operating temperature range: -20°C to 70°C.

9. DC 9V~36V wide voltage input, with overcurrent, overvoltage, and reverse polarity protection.
