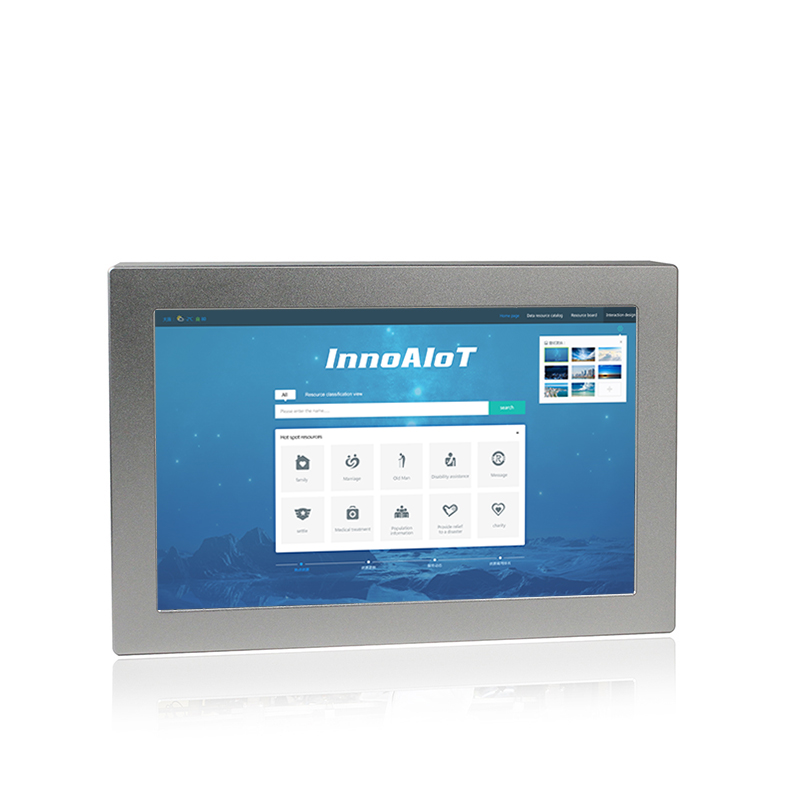

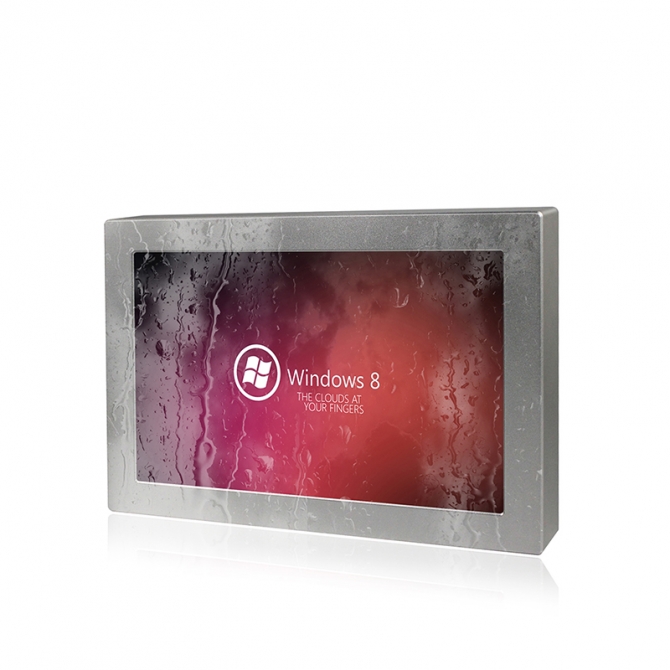

    WPM-H012WAR

    Product features:

    • Aluminium alloy front panel, front IP68 waterproof
    • 12.1" TFT LED, Resolution 1280x800, Resistive Touch
    • VESA, wall, desktop, and stand mounting
    • HDMI/VGA/T-USB Multiple Signals Input Supported
    • DC12V Input, Optional(+9V~36V)
    CERoHSFCIP65
    Visit:465

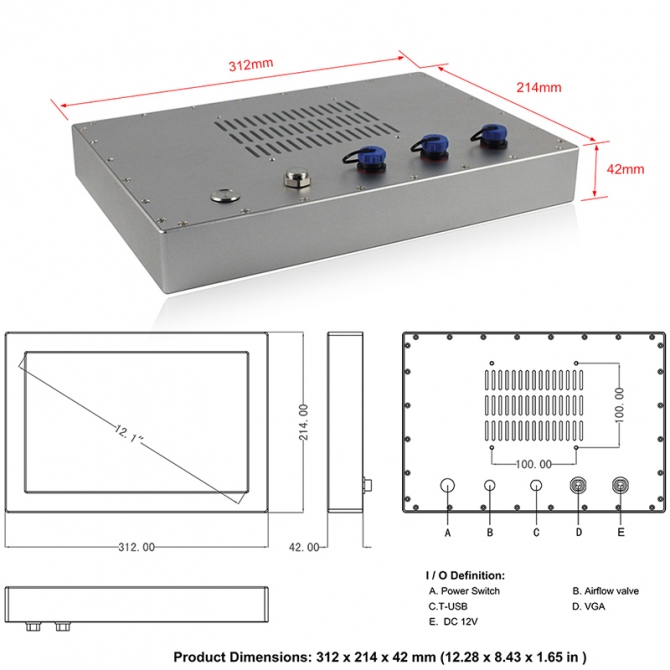

    Description Specifications Dimension drawing Order Info Driver download

    LCD Panel

    Panel Size

    12.1" Led

    Resolution

    1280 x 800

    Aspect Ratio

    16:10

    Display Brightness

    450 cd/m2

    Contrast Ratio

    700:1

    Colors

    16.7M , 74% NTSC

    Backlight Lifetime

    50000 Hr (min.)

    Viewing Angle

    80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Screen Type

    Resistive touch

    Transmittance

    >85%

    Response Time

    <5ms

    Surface Hardness

    ≥3H

    Supply Voltage

    5.0V DC

    Touch Life

    ≧ 1000W

    I/O

    VGA

    1 x VGA (Optional)

    H-DMI

    1 x H-DMI (Optional)

    DVI

    1 x DVI (Optional)

    USB

    1 x Touch  USB

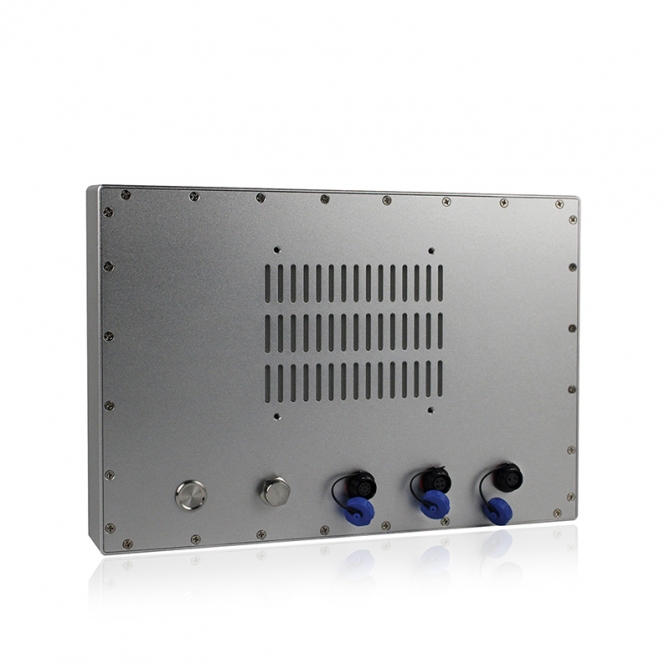

    Other I/O Interface

    1 x Power Switch

    Institutional

    Material

    Aluminum Alloy Shell

    Color

    Silver / Black (Optional)

    VESA Mounting

    VESA: 100 x 100 mm

    Waterproof Rate

    IP67 / IP68 / IP69K

    Waterproof Rate

    312 x 214 x 42 mm

    Cut-out Size


    Packing Size

    450 x 170 x 350 mm

    Gross Weight

    7.0 KG

    Power and Environment

    Operating Temperature

    -20~70°C

    Storage Temperature

    -30~80°C(-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Range

    5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

    External Power Supply

    AC 100 - 240V~50/60Hz,1.5A

    Working Voltage

    DC 12V / Optional(+9V~36V)

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    WPM-H012WAR

    12.1” TFT LED / Resolution 1080x800 / Resistive Touch / VGA / H-DMI / T-USB / DC 12V / Optional(+9V~36V)

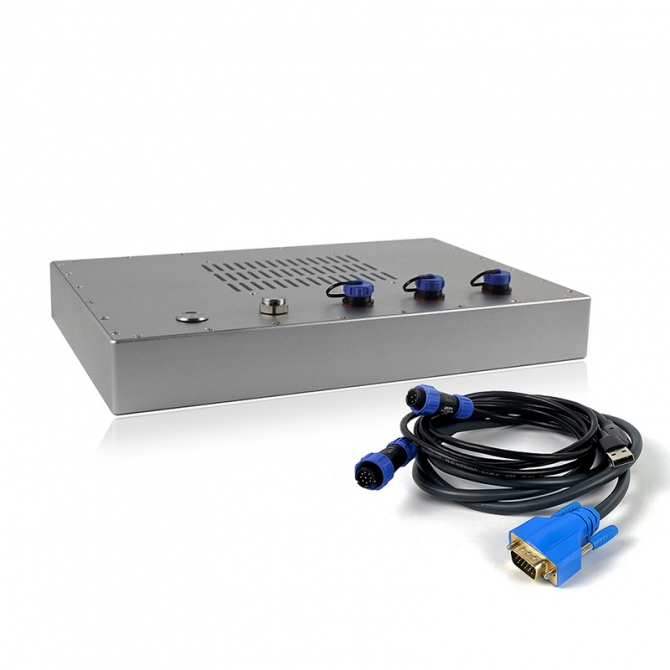

    PACKING LIST

    1x 12.1” Embedded Touch Monitor

    1x 1.5m H-DMI Cable

    1x 1.5m T-USB Cable

    1x Power Adaptor
