EFIC-2000CC
Product features：
- Intel Celeron J6412 2.0GHz Fanless Configuration
- 3*Gigabit Ethernet Ports, Wake on LAN and PXE Supported
- 1*m-PCIe Expansion Socket, Which Can Expand COM/LAN/CAN/USB
- 2*RS-232 / 4*RS-232 / 422 / 485 ,1*WiFi / Bluetooth / 4G / 5G Optional
- TPM 2.0 Support For Maximum Security
- Work temperature -20 ° C to 70 ° C
- DC 9V~36V Input
|
System |
|
|
CPU |
Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
|
L2 Cache |
1.5MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
DDR4L 3200MHz 4GB, MAX 32GB |
|
Harddisk |
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
|
Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
Network |
Intel® 225-V GbE LAN |
|
Audio |
Realtek ACL897 Audio controller |
|
TPM |
TPM 2.0 |
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 10 / 11， Linux, Ubuntu, Debian |
|

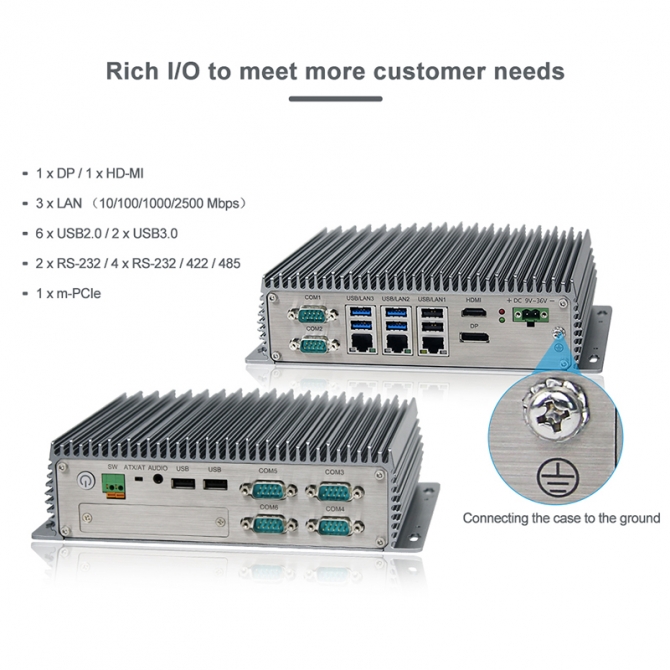

I/O |
|
|
VIDEO |
1 x DP / 1 x HD-MI |
|
LAN |
3 x LAN（10/100/1000/2500 Mbps） |
|
USB |
6 x USB2.0 / 2 x USB3.0 |
|
COM |
2 x RS-232 / 4 x RS-232 / 422 / 485 |
|
m-PCle |
1 x m-PCle (COM / LAN / CAN / USB ) Optional |
|
Audio |
1x Audio_out & Mic_in |
|
Wireless Network |
Optional（WiFi / Bluetooth / 4G / 5G ) |
|
Power |
|
|
Power Adapter |
1 x Optional AC/DC 12V/4A , 48W |
|
Power Mode |
Support AT, ATX Mode |
|
Power Input |
2-pin Terminal Block Connector with Power Input 9~36VDC |
|
Power Protection |
OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP（Reverse Polarity Protection） |
|
Power Consumption |
≦20W |
|
Physical |
|
|
Material |
Aluminum Alloy Shell |
|
Color |
Grey / Silver / Black ( optional ) |
|
Mounting |
208 x 100 mm / 208 x 60 mm |
|
Product Dimension |
220 x 145 x 62 mm |
|
Packing Size |
360 x 180 x 320 mm |
|
Weight (Net) |
1.5 KG |
|
Environment |
|
|
Operating Temperature |
20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Range |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
EMC |
CE, FCC，ROHS |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
EFIC-2000CC |
Intel Elkhart Lake Celeron J6412 2.0GHz / DP / H-DMI / 3xLAN / 6xUSB2.0 / 2xUSB3.0 / 2xRS232 / 4x (RS232 / 422 / 485) / TPM2.0 / DC 9V~36V |
|
EFIC-2000XC |
Intel Elkhart Lake Atom X6425E 2.0GHz / DP / H-DMI / 3xLAN / 6xUSB2.0 / 2xUSB3.0 / 2xRS232 / 4x (RS232 / 422 / 485) / TPM2.0 / DC 9V~36V |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR4L 3200MHz SO-DIMM.4GB/32GB |
|
Harddisk |
M.2 SSD：120G/250G/500G/1TB |
|
WiFi |
Wi-Fi Bluetooth Combo Module, with antenna (4G / 5G Optional) |
|
|
|
|
PACKING LIST |
|
|
1x Embedded Fanless Industrial PC |
|
|
1x CD-ROM |
|
|
1x Power Adaptor |
|
