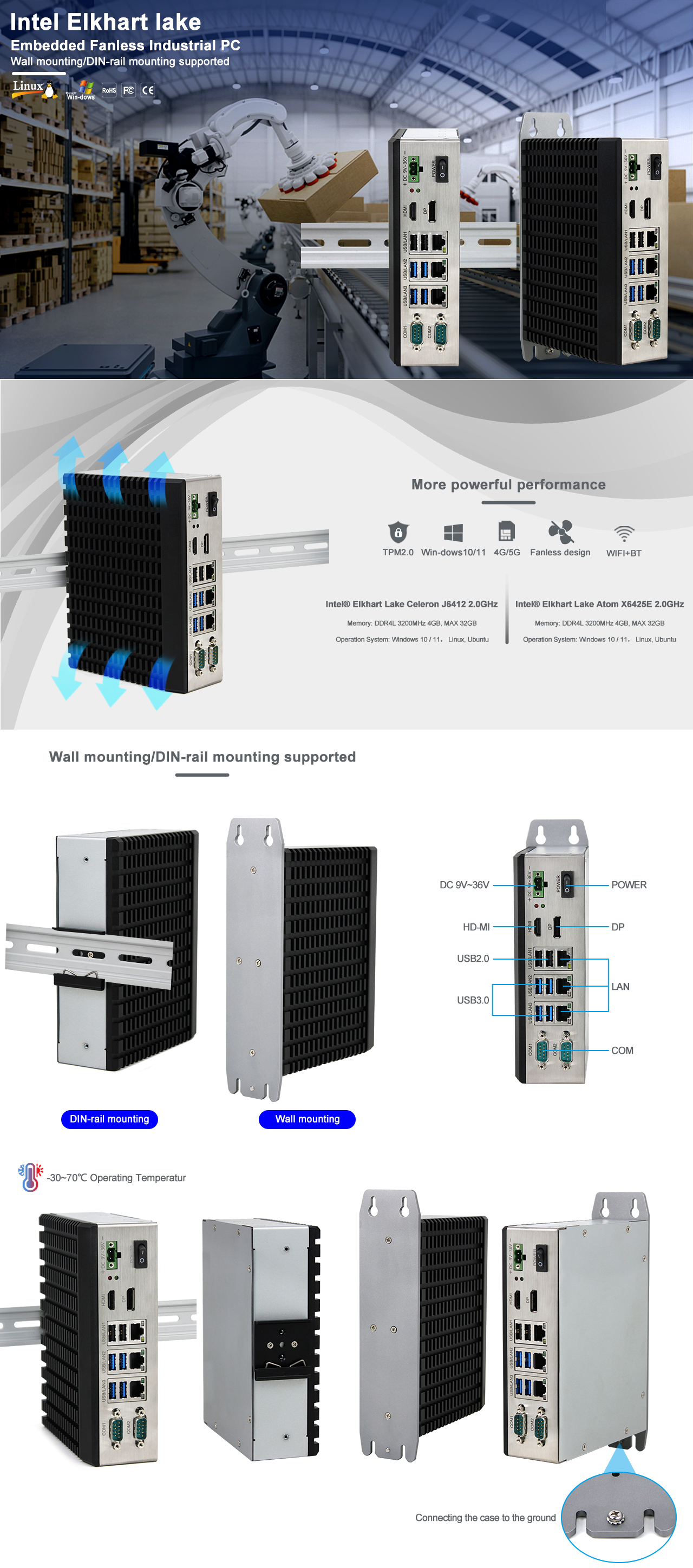

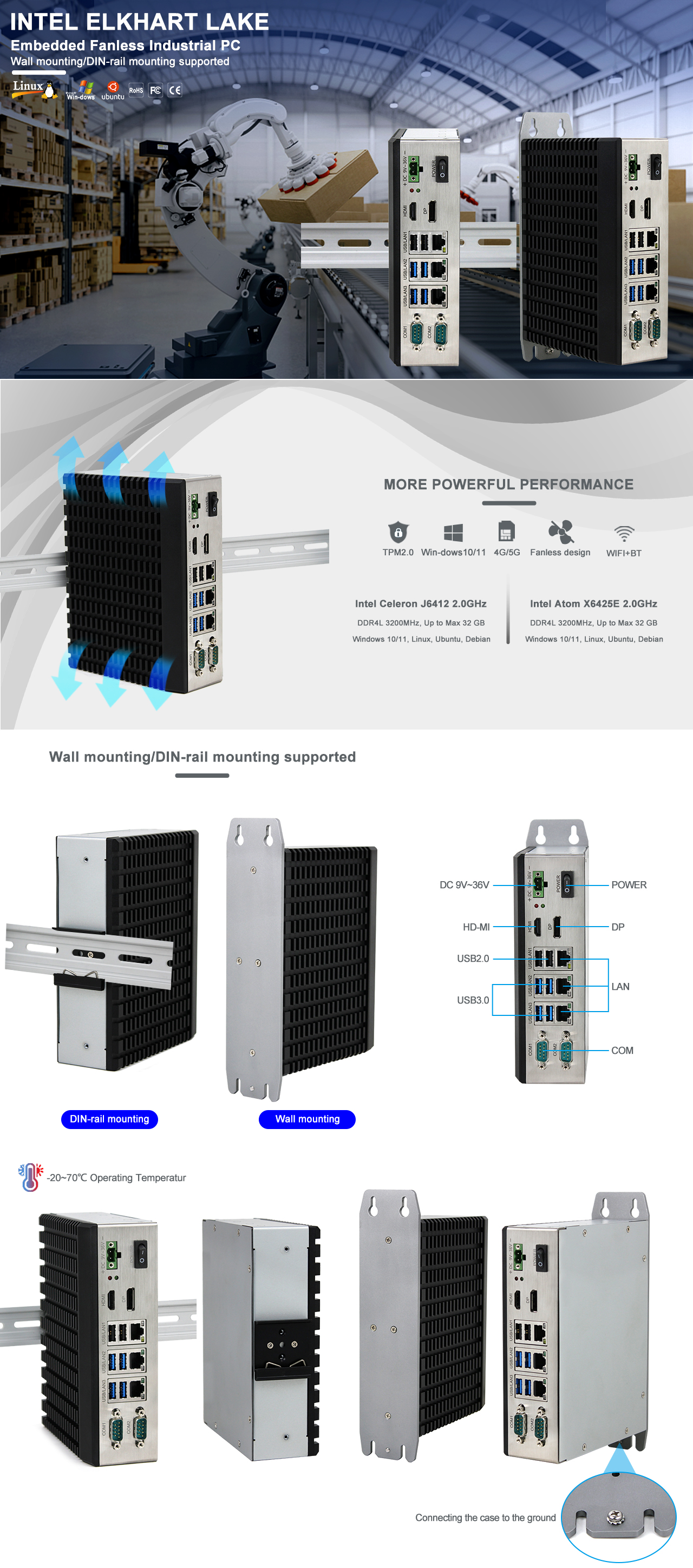

EFIC-2000CD
Product features：
- Intel® Celeron® J6412 quad-core 2.0 GHz processor
- 1 x DDR4 3200MHz SODIMM, MAX 32GB，1 x M.2 2280 SATA SSD
- 1 x M2.0 (2230, Wifi+BT)，1 x M2.0 (3042/3052，4G/5G)
- Supports dual independent display:1 x HDMI, 1 x DP
- 3 x Intel® 226-V 2.5GbE Ethernet, support WoL and PXE
- 2 x RS232/RS422/RS485，RS485 support automatic flow control
- Support TPM2.0 hardware security
- Wide Operating Temperature -30°C to 70°C
- 9V to 36VDC Wide Range Power Input，Supporting OVP / OCP / RPP
|
System |
||
|
CPU |
Intel® Elkhart Lake Celeron J6412 2.0GHz |
Intel® Elkhart Lake Atom X6425E 2.0GHz |
|
L2 Cache |
1.5MB |
1.5MB |
|
TDP |
10W |
10W |
|
System Chipset |
Integrated with Intel® SoC |
|
|
Memory |
DDR4L 3200MHz 4GB, MAX 32GB |
|
|
Harddisk |
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
|
|
Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
|
Network |
Intel® 226-V GbE LAN |
|
|
Audio |
Realtek ACL897 Audio controller |
|
|
TPM |
TPM 2.0 |
|
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
|
Operation System |
Windows 10 / 11， Linux, Ubuntu |
|
|
I/O |
||
|
VIDEO |
1 x DP / 1 x H-DMI |
|
|
Ethernet |
3 x LAN 10/100/1000/2500 Mbps |
|
|
USB |
4 x USB3.0 / 2 x USB2.0 |
|
|
COM |
2 x RS-232 / 422 / 485 ( Adjustable through BIOS ) |
|
|
Audio |
1x Audio_out & Mic_in |
|
|
Wireless Network |
Optional（WiFi / Bluetooth / 4G / 5G ) |
|
|
Expansion |
||
|
M.2 |
1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT) |
|
|
1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G ) |
||
|
1*M.2 ( Key-M, 2280 SATA, SSD ) |
||
|
Expansion |
1*mPCe |
|
|
SIM Socket |
1x SIM Socket |
|
|
Power |
||
|
Power Adapter |
1 x Optional AC/DC 12V/5A , 60W |
|
|
Power Mode |
Support AT, ATX Mode |
|
|
Power Input |
2-pin Terminal Block Connector with Power Input 9~36VDC |
|
|
Power Protection |
OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP（Reverse Polarity Protection） |
|
|
Power Consumption |
≦30W |
|
|
Physical |
||
|
Material |
Aluminum Alloy Shell |
|
|
Color |
Grey / Silver / Black ( optional ) |
|
|
Mounting |
210 x 30 mm / DIN-Rail |
|
|
Product Dimension |
185 x 145 x 57 mm |
|
|
Packing Size |
360 x 180 x 320 mm |
|
|
Weight (Net) |
1.5 KG |
|
|
Environment |
||
|
Operating Temperature |
-30~70°C ( -22~158°F ) |
|
|
Storage Temperature |
-40~85°C (-40~185°F) |
|
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
|
EMC |
CE, FCC，Class A，ROHS |
|
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
EFIC-2000CD |
Intel® Elkhart Lake Celeron J6412 2.0GHz / 1 x DP / 1 x H-DMI / 3 x LAN / 2 x USB2.0 / 4 x USB3.0 / 2 x COM / TPM2.0 / DC 9V~36V ( OVP / OCP / RPP ) |
|
EFIC-2000XD |
Intel® Elkhart Lake Atom X6425E 2.0GHz / 1 x DP / 1 x H-DMI / 3 x LAN / 2 x USB2.0 / 4 x USB3.0 / 2 x COM / TPM2.0 / DC 9V~36V ( OVP / OCP / RPP ) |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR4L 3200MHz 4GB, MAX 32GB |
|
Harddisk |
M.2 SSD：(120G/250G/500G/2TB) 1 x 2.5" SATA |
|
WiFi |
Wifi Bluetooth Combo Module, with antenna |
|
4G/5G |
Full Netcom 4G/5G/LTE module, with antenna |
|
|
|
|
PACKING LIST |
|
|
1 x Standard product |
|
|
1 x 60W PSU (Power Supply) |
|
|
1 x 35mm DIN-Rail buckle |
|
|
1 x Wall mount |
|
|
1 x CD-ROM |
|
