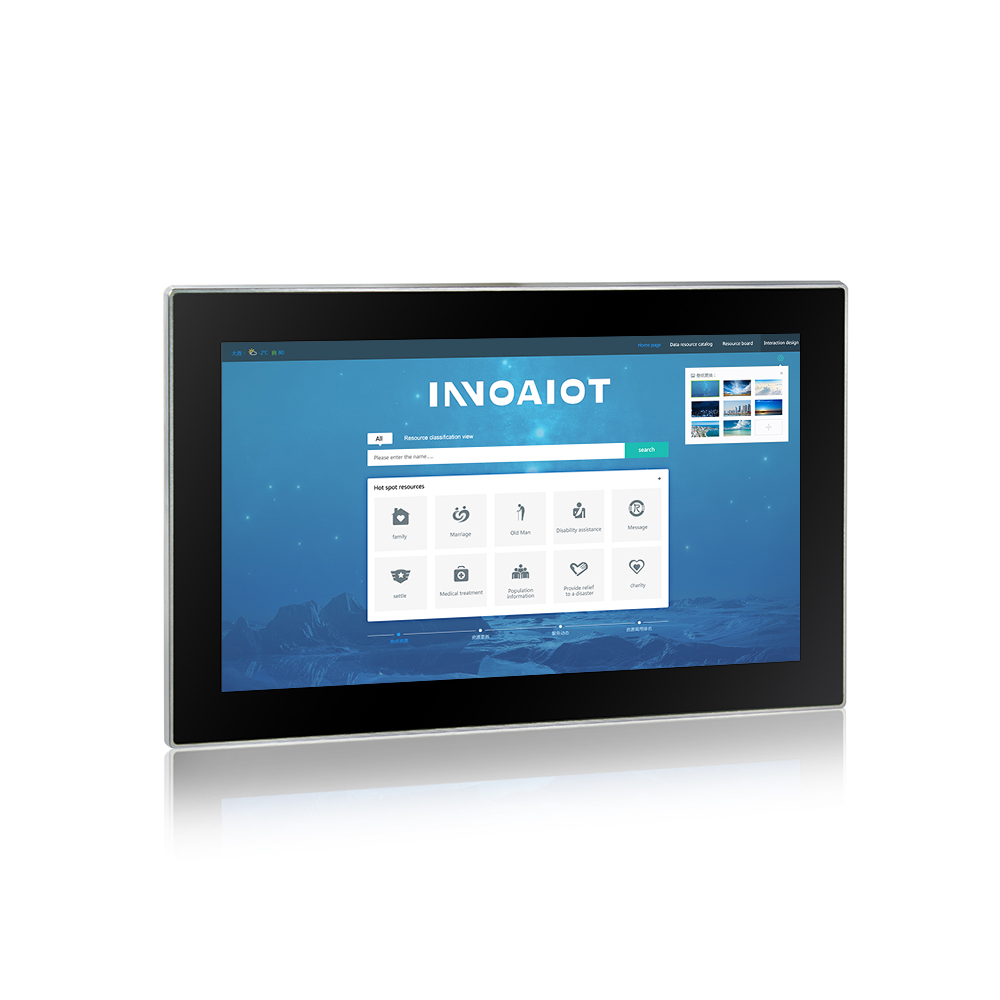

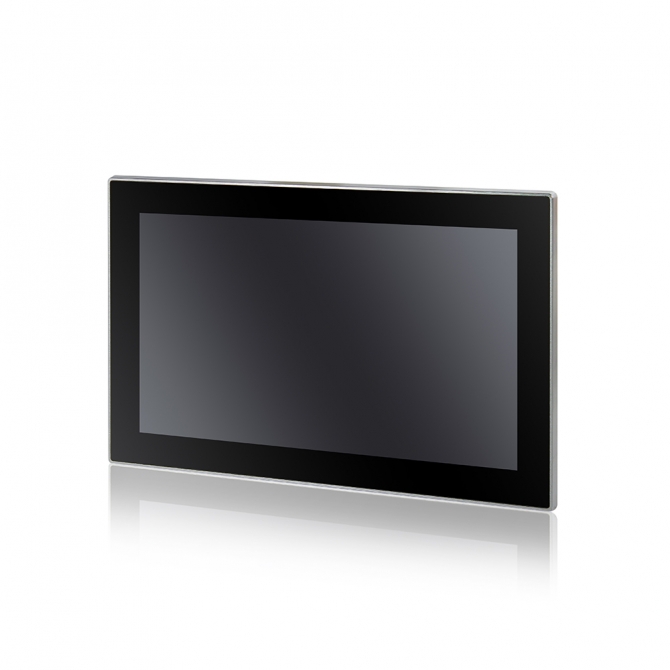

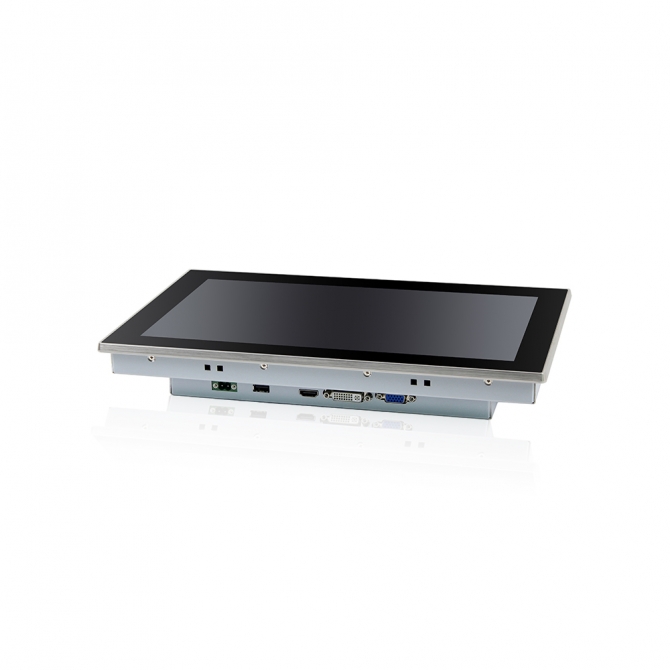

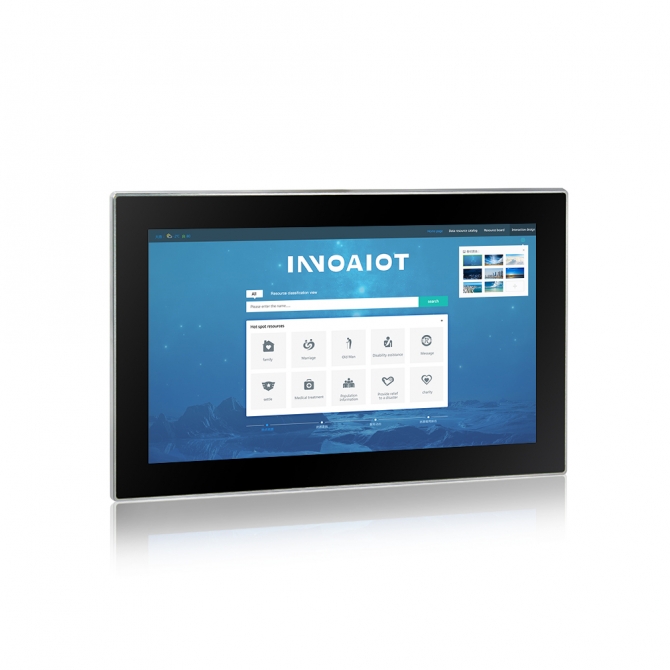

    PM-H133WAC

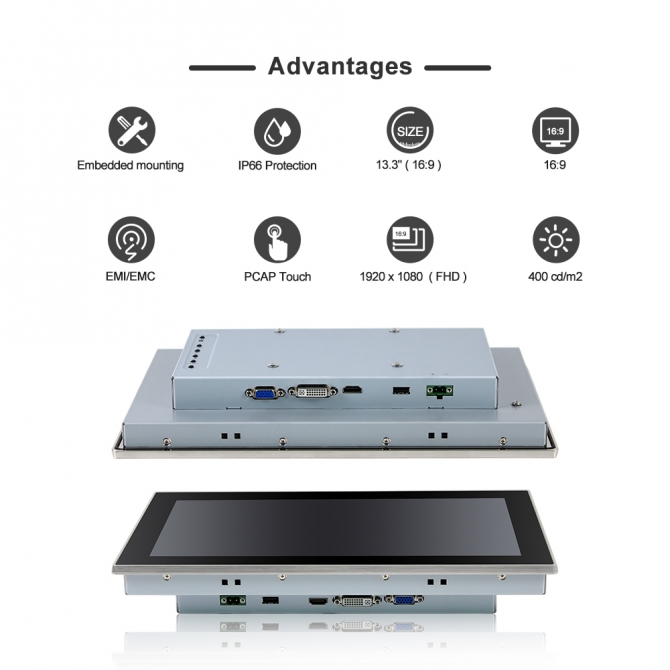

    Product features:

    • Aluminium alloy front panel, front IP65 waterproof
    • 13.3" TFT LED, Resolution 1920*1080, 10 Points PCAP Touch

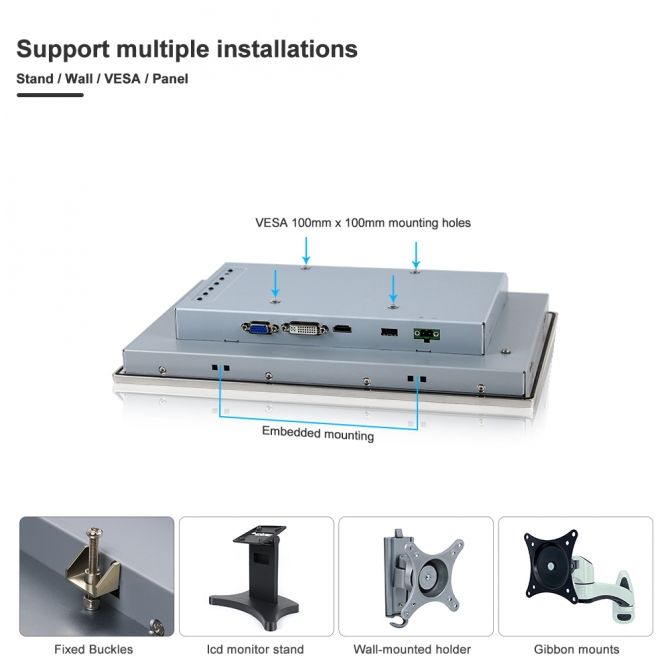

    • Embedded / VESA mounting
    • HDMI/VGA/DVI Multiple Signals Input Supported
    • DC12V Input, Optional(+9V~36V)
    CERoHSFCIP65
    Visit:146
    Description Specifications Dimension drawing Order Info Driver download

    LCD Panel

    Panel Size

    13.3" Led

    Resolution

    1920 x 1080

    Aspect Ratio

    16:09

    Display Brightness

    400 cd/m2

    Contrast Ratio

    900:1

    Colors

    16.7M , 86% NTSC

    Backlight Lifetime

    50000 Hr (min.)

    Viewing Angle

    85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Screen Type

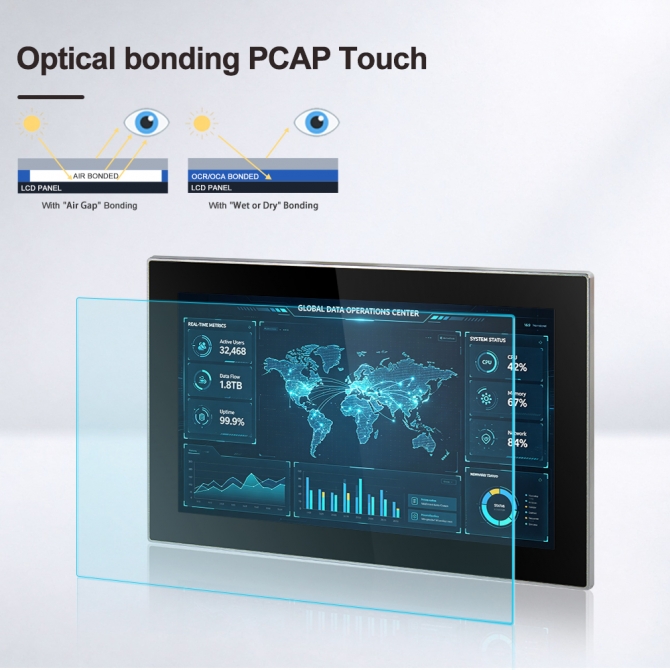

    Multi-Touch PCAP

    Transmittance

    >90%

    Response Time

    <5ms

    Surface Hardness

    ≥6H

    Supply Voltage

    5.0V DC

    Touch Life

    ≧ 3000W

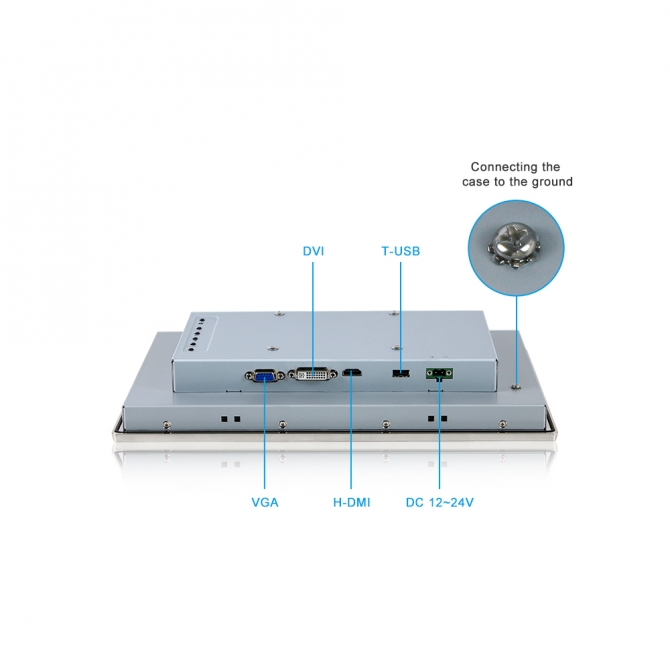

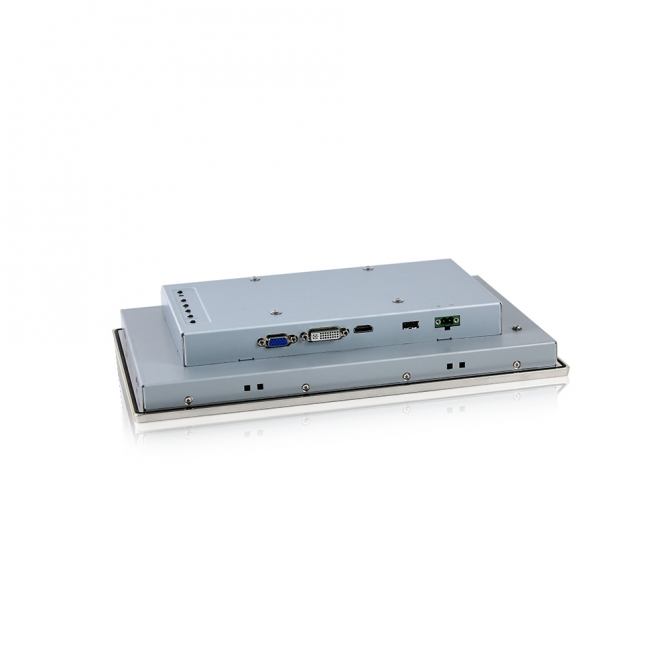

    I/O

    VGA

    1 x VGA

    H-DMI

    1 x H-DMI

    DVI

    1 x DVI

    USB

    1 x Touch  USB

    Other I/O Interface

    1 x Power Switch

    Institutional

    Material

    High-strength Al-alloy, support IP65

    Color

    Gray

    VESA Mounting

    VESA: 100 x 100 mm

    Waterproof Rate

    IP65

    Waterproof Rate

    344.50 x 216 x 62 mm

    Cut-out Size

    331 x 203 mm

    Packing Size

    450 x 170 x 350 mm

    Gross Weight

    5.0 KG

    Power and Environment

    Operating Temperature

    -20~70°C

    Storage Temperature

    -30~80°C(-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Range

    5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

    External Power Supply

    AC 100 - 240V~50/60Hz,1.5A

    Working Voltage

    DC 12V / Optional(+9V~36V)

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    PM-H133WAC

    13.3” TFT LED / Resolution 1920 x 1080 / PCAP Touch / VGA / H-DMI / DVI / T-USB / DC 12V / Optional(+9V~36V)



    PACKING LIST

    1x 13.3” Embedded Touch Monitor

    1x 1.5m H-DMI Cable

    1x 1.5m T-USB Cable

    1x Power Adaptor
