    WPC-O156WAC

    Product features:

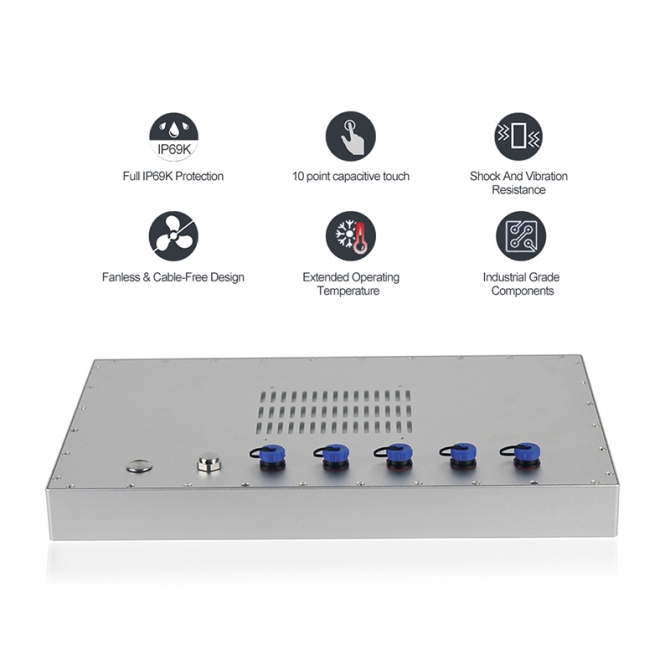

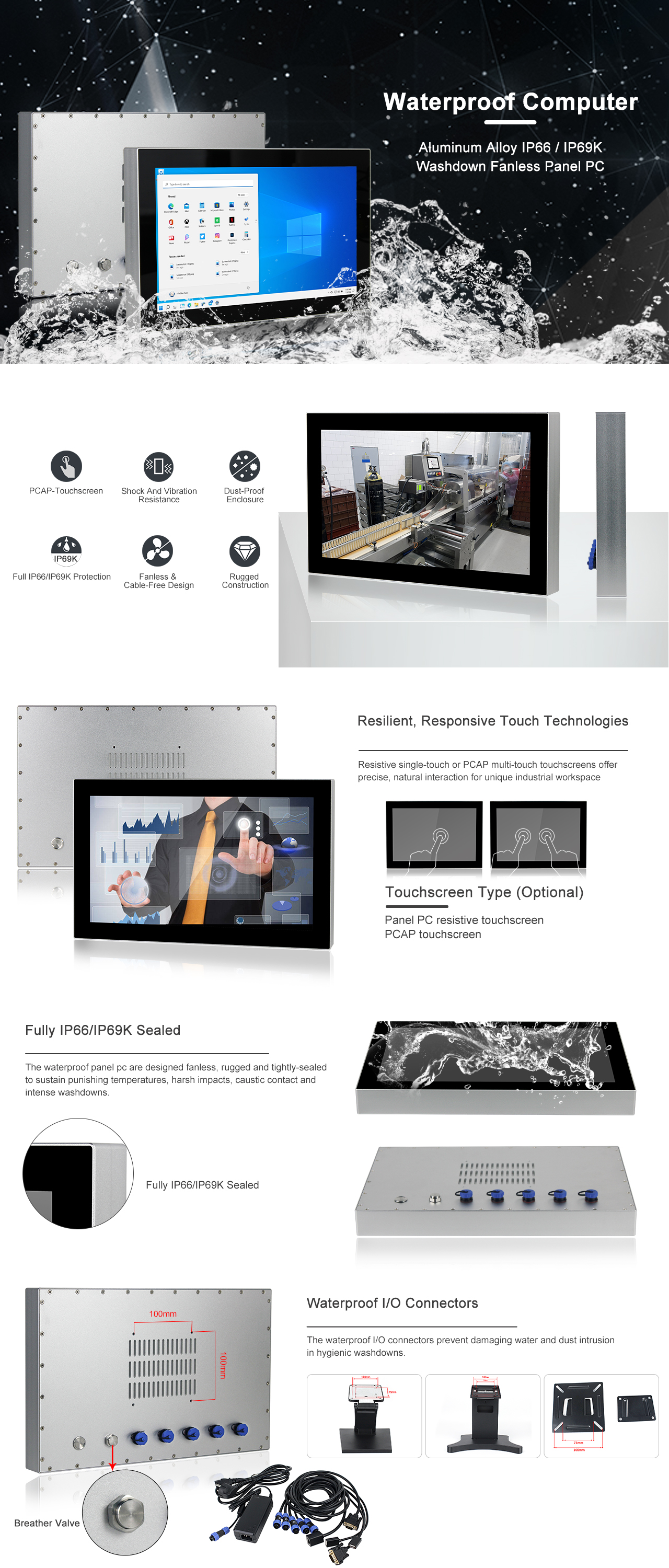

    • Aluminium Alloy Shell, Whole PC IP66/IP69K Waterproof
    • 15.6" TFT LED, Resolution 1920x1080, PCAP Touch
    • Intel Core i3-6100U 2.4GHz, Waterproof PC
    • Multi Ports For Optional, VGA/LAN/USB/COM
    • DC12V~24V Input
    CERoHSFCIP69K
    Visit:470
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel Celeron 3855U 1.6GHz / Intel Core i3-6100U 2.4GHz / Intel Core i5-6200U 2.5GHz

    L2 Cache

    2MB / 3MB

    Chipsets

    Intel Bay Trail SOC / Intel 6th Skylake-U SOC

    Memory

    DDR4L 2133MHz 4GB, Up to 16GB

    Harddisk

    1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional

    Graphics

    Intel HD Graphics 510 / Intel HD Graphics 520

    Network

    Intel® i211 1000 Mbps port

    Audio

    Realtek ACL662 Audio controller

    Operation System

    Windows 7 / 8 / 10, Linux, UnixQNX

    I/O

    VIDEO

    1 x VGA / 1 x HD-MI  ( Optional )

    LAN

    1 x LAN ( Optional )

    USB

    4 x USB2.0 ( Optional )

    COM

    2 x RS232 ( Optional )

    Wifi

    WiFi + Bluetooth ( Optional )

    Other I/O Interface

    1 x Power Switch

    LCD Panel

    Panel Size

    15.6" Led

    Resolution

    1920 x 1080

    Aspect Ratio

    16:9

    Display Brightness

    450 cd/m2

    Contrast Ratio

    800:1

    Colors

    16.2M,72%NTSC

    Backlight Lifetime

    13/12 (Typ.)(Tr/Td) ms

    Viewing Angle

    85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Screen Type

    Capacitive touch

    Transmittance

    >90%

    Response Time

    <5ms

    Surface Hardness

    ≥6H

    Supply Voltage

    5.0V DC

    Touch Life

    ≧ 3000W

    Institutional

    Material

    Aluminum Alloy Shell

    Color

    Silver / Black ( optional )

    VESA Mounting

    VESA: 100 100 mm

    Waterproof Rate

    IP66 / IP69K

    Product Dimension

    398 248 40 mm

    Cut-out Size

     /

    Packing Size

    460 x 180 x 400 mm

    Gross Weight

    7.0 KG

    Power and Environment

    Operating Temperature

    -10~60°C

    Storage Temperature

    -20~80°C(-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Range

    5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

    External Power Supply

    AC 100 - 240V~50/60Hz,1.5A

    Working Voltage

    DC 12V~24V / Optional(+9V~36V)

    Power Consumption

    ≦30W


    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    WPC-M156WAC

    15.6” TFT LED / Resolution 1920x1080 / Intel Celeron 3855 1.6GHz /  PCAP Touch VGA / LAN / COM / USB / DC IN 12V~24V

    WPC-O156WAC

    15.6” TFT LED / Resolution 1920x1080 / Intel Core i3-6100U 2.4GHz / PCAP Touch / VGA / LAN / COM / USB / DC IN 12V~24V

    WPC-P156WAC

    15.6” TFT LED / Resolution 1920x1080 / Inte l Core i5-6200U 2.5GHz / PCAP Touch / VGA / LAN / COM / USB / DC IN 12V~24V



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR4L 2133MHz SO-DIMM.4GB/16GB

    Harddisk

    mSATA SSD32G/64G/120G/250G/500G

    WiFi

    Wi-Fi Bluetooth Combo Module, with antenna



    PACKING LIST

    1x 15.6” Waterproof Industrial PC

    1x CD-ROM

    1x 1.5m I/O Cable

    1x Power Adaptor
