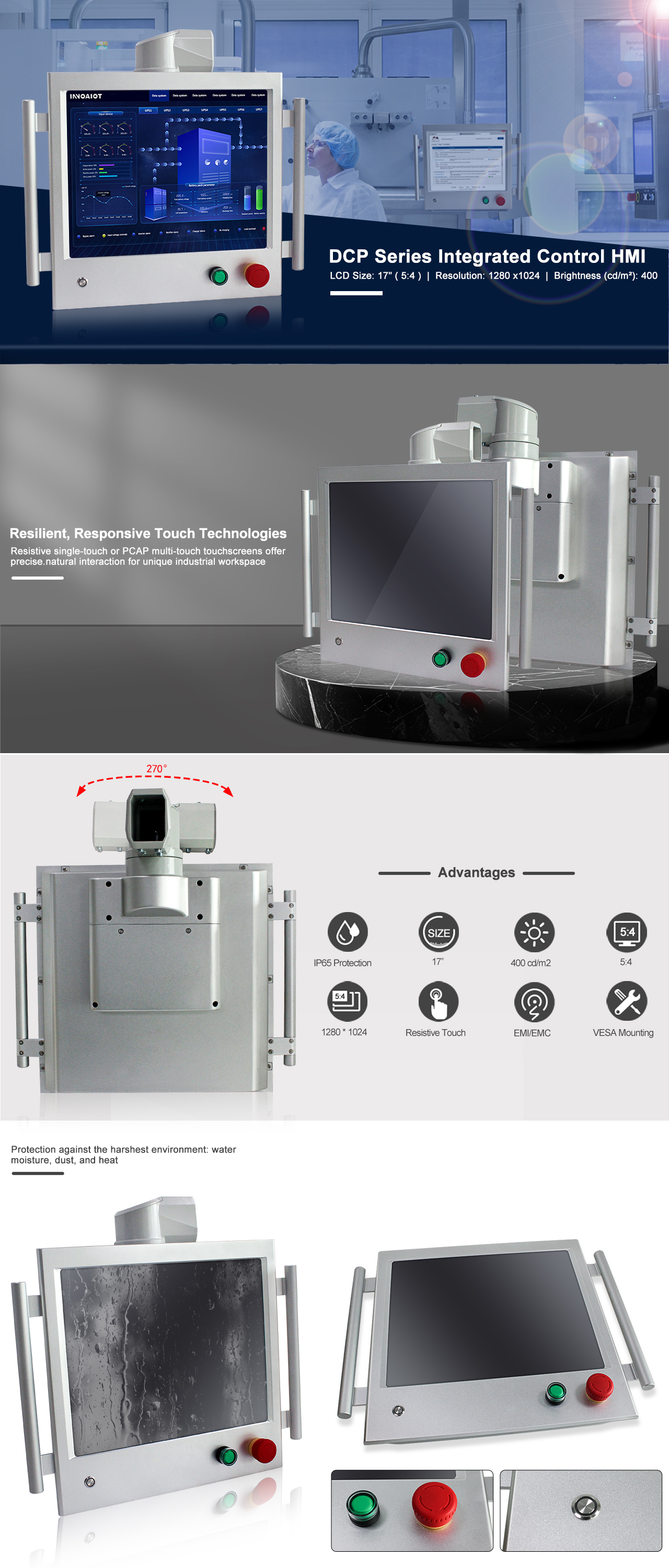

    DCP-O017SBR

    Product features:

    • Silicone-free enclosure with all-round IP65-rated protection
    • 17" TFT LED, Resolution 1280x1024, Resistive Touch
    • Intel 6th Gen Core i3-6100U 2.4GHz Fanless Control PC
    • Multi Ports For Option: IDEC Button / VGA / HDMI / LAN / USB / COM
    • DC 12V~24V Input
    CERoHSFCIP65
    Visit:1034
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel® Bay Trail Core i3-6100U 2.4GHz / i5-6200U 2.5GHz , TDP 15W

    L2 Cache

    3.0MB

    System Chipset

    Integrated with Intel® SoC

    Memory

    DDR4L 2133MHz 4GB, Up to 16GB

    Harddisk

    1 x mSATA 128G SSD / ( 256G / 500G / ITB SSD) optional

    Graphics

    Intel HD Graphics 520

    Network

    Intel® I211-AT GbE LAN

    Audio

    Realtek ACL662 Audio controller

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

    Operation System

    Windows 7 / 8 / 10, Linux, Ubuntu

    I / O

    VIDEO

    1 x VGA / 1 x H-DMI

    LAN

    2 x LAN 10/100/1000/2500 Mbps

    USB

    1 x USB2.0 / 2 x USB3.0

    COM

    6 x RS232 ( optional )

    Audio

    1x Audio_out & Mic_in

    Button

    IDEC φ22  Select / Green / Red / Stop Button ( optional )

    Bracket kit

    44- 60 Light Cantilever Accessories

    Other I/O Interface

    Optional (WiFi / Bluetooth / 4G / )

    Display

    LCD Size

    17" ( 5:4 )

    Resolution

    1280 x 1024

    Brightness (cd/m²)

    400

    Contrast Ratio

    1000:1

    Backlight MTBF

    50000 hrs

    Viewing Angle

    80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    5 Wire Resistive touch

    Surface Hardness

    ≥3H

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A , 60W

    Power Input

    DC 12V~24V

    Power Consumption

    ≦30W

    Physical

    Material

    Aluminum Alloy Shell

    Mounting

    Stand / Wall / VESA / Panel

    Dimension (W x H x D)

    400 x 390 x 155 mm

    Packing Size

    500 x 180 x 450 mm

    Weight (Net)

    12.0 KG

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    IP65

    EMC

    CE, FCC,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    DCP-O017SBR

    17” TFT LED / Intel Core i3-6100U 2.4GHz / Resistive Touch / VGA / HDMI / LAN / USB / COM / IDEC 22 Select / Green / Red / Stop Button ( Optional ) DC 12V~24V

    DCP-P017SBR

    17” TFT LED / Intel Core i5-6200U 2.5GHz / Resistive Touch / VGA / HDMI / LAN / USB / COM / IDEC 22 Select / Green / Red / Stop Button ( Optional ) DC 12V~24V



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR4L 2133MHz SO-DIMM.4GB/16GB

    Harddisk

    mSATA SSD128G (250G/500G1TB SSD) Optional

    WiFi

    Wi-Fi Bluetooth Combo Module, with antenna



    PACKING LIST

    1x 17” Device Control Panel

    1x CD-ROM

    1x Power Adaptor
