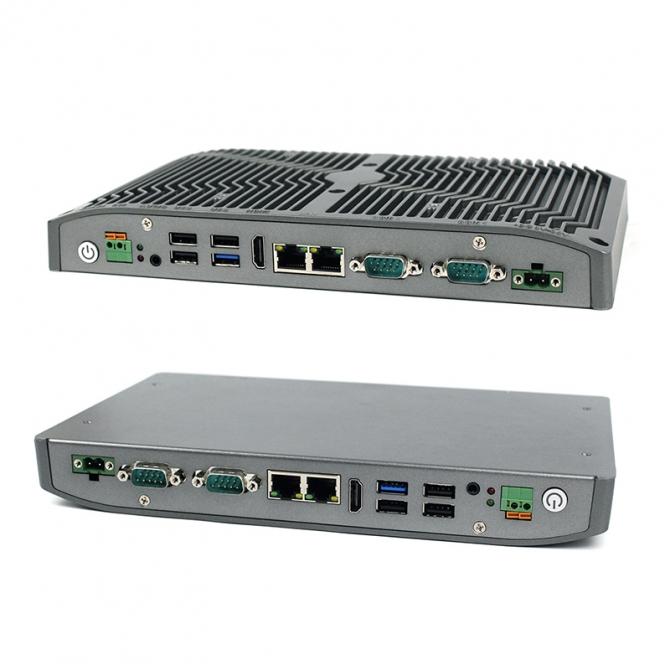

    EFIC-50003A

    Product features:

    • Intel 8th Core i3-8145U 2.1GHz Fanless Configuration
    • 2xLAN, 2xCOM, Electricity and wave protection
    • Built-in TPM2.0 for Hardware-based Security
    • Work temperature -20 ° C to 70 ° C
    • DC 9~36V, Overcurrent, Overvoltage & Reverse Connection Protection
    CERoHSFCTPMIP66
    Visit:715
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel Core i3-8145U 2.1GHz / Intel Core i5-8265U 1.6GHz / Intel Core i7-8565U 1.8GHz

    L2 Cache

    2MB / 6MB / 8MB

    Chipsets

    Intel Whiskey Lake SOC

    Memory

    DDR4L 2400MHz 4GB, Up to 32GB

    Harddisk

    1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional

    Graphics

    Intel HD Graphics 620

    Network

    Intel® I211-AT GbE LAN

    Audio

    Realtek ACL662 Audio controller

    TPM

    TPM 2.0

    Operation System

    Windows 10, Linux, Ubuntu, Debian

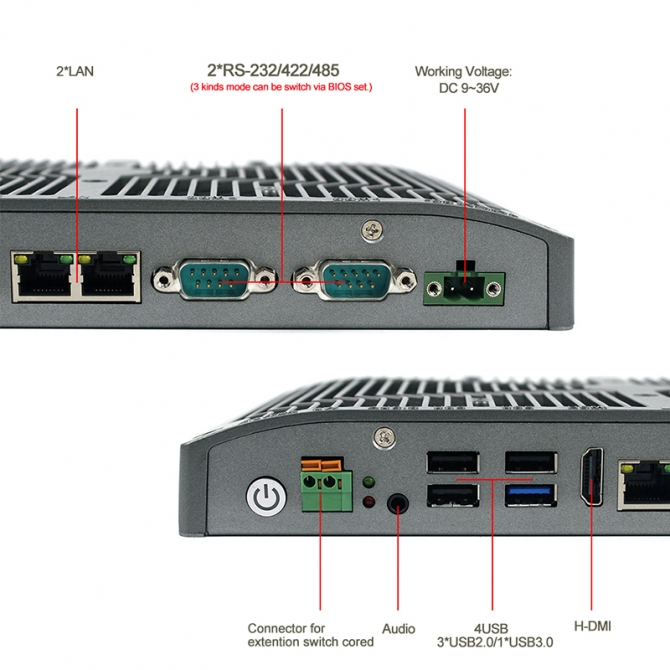

    I/O

    Display

    1 x H-DMI

    LAN

    2 x LAN

    USB

    4 x USB3.0

    COM

    2 x RS-232 / 422 / 485

    Audio

    1x Audio_out & Mic_in

    Wireless Network

    WiFi + Bluetooth ( Optional )

    Other I/O Interface

    1 x Power Switch

    Institutional

    Material

    Aluminum Alloy Shell

    Color

    Grey / Silver / Black ( optional )

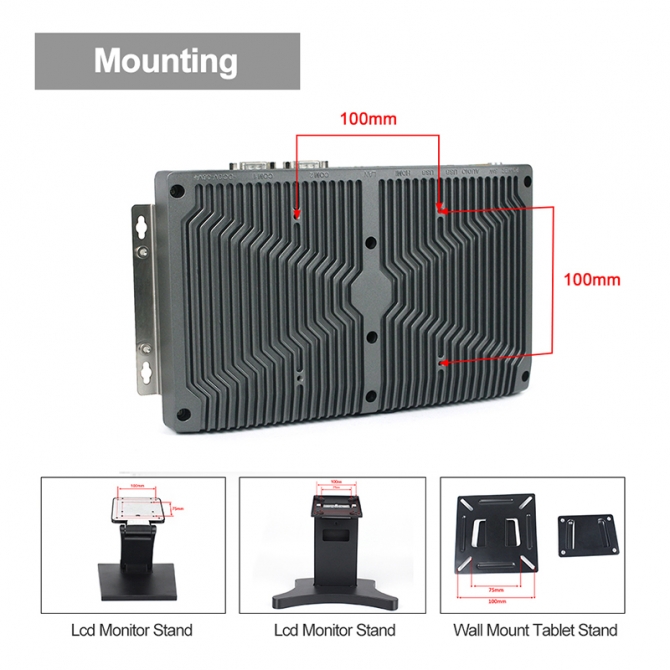

    VESA Mounting

    272 x 90 mm / 272 x 60 mm

    Product Dimension

    258 x 158 x 33 mm

    Packing Size

    360 x 180 x 320 mm

    Gross Weight

    4.0 KG

    Power and Environment

    Operating Temperature

    -20~70°C

    Storage Temperature

    -20~80℃-22~176°F

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Range

    5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

    External Power Supply

    AC 100 - 240V~50/60Hz,1.5A

    Working Voltage

    DC IN 9V~36V

    Power Consumption

    25W

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    EFIC-50003A

    Intel Core i3-8145U 2.1GHz / 2x Intel®I211 GbE LAN / 2xCOM(RS232 / 422 / 485) 3xUSB2.0 / 1xUSB3.0 / TPM2.0 / DC 9~36V (OVP / OCP / RVP)

    EFIC-50005A

    Intel Core i5-8265U 1.6GHz / 2x Intel®I211 GbE LAN / 2xCOM(RS232 / 422 / 485) 3xUSB2.0 / 1xUSB3.0 / TPM2.0 / DC 9~36V (OVP / OCP / RVP)

    EFIC-50007A

    Intel Core i7-8565U 1.8GHz / 2x Intel®I211 GbE LAN / 2xCOM(RS232 / 422 / 485) 3xUSB2.0 / 1xUSB3.0 / TPM2.0 / DC 9~36V (OVP / OCP / RVP)



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR4L 2400MHz SO-DIMM.4GB/32GB

    Harddisk

    Msata SSD64G/120G/250G/500G/1TB

    WiFi

    Wi-Fi Bluetooth Combo Module, with antenna



    PACKING LIST

    1x Embedded Fanless Industrial PC

    1x CD-ROM

    1x Fixed Bracket

    1x  Power Adaptor
